DVN 5000 BCM Motherboard BIOS

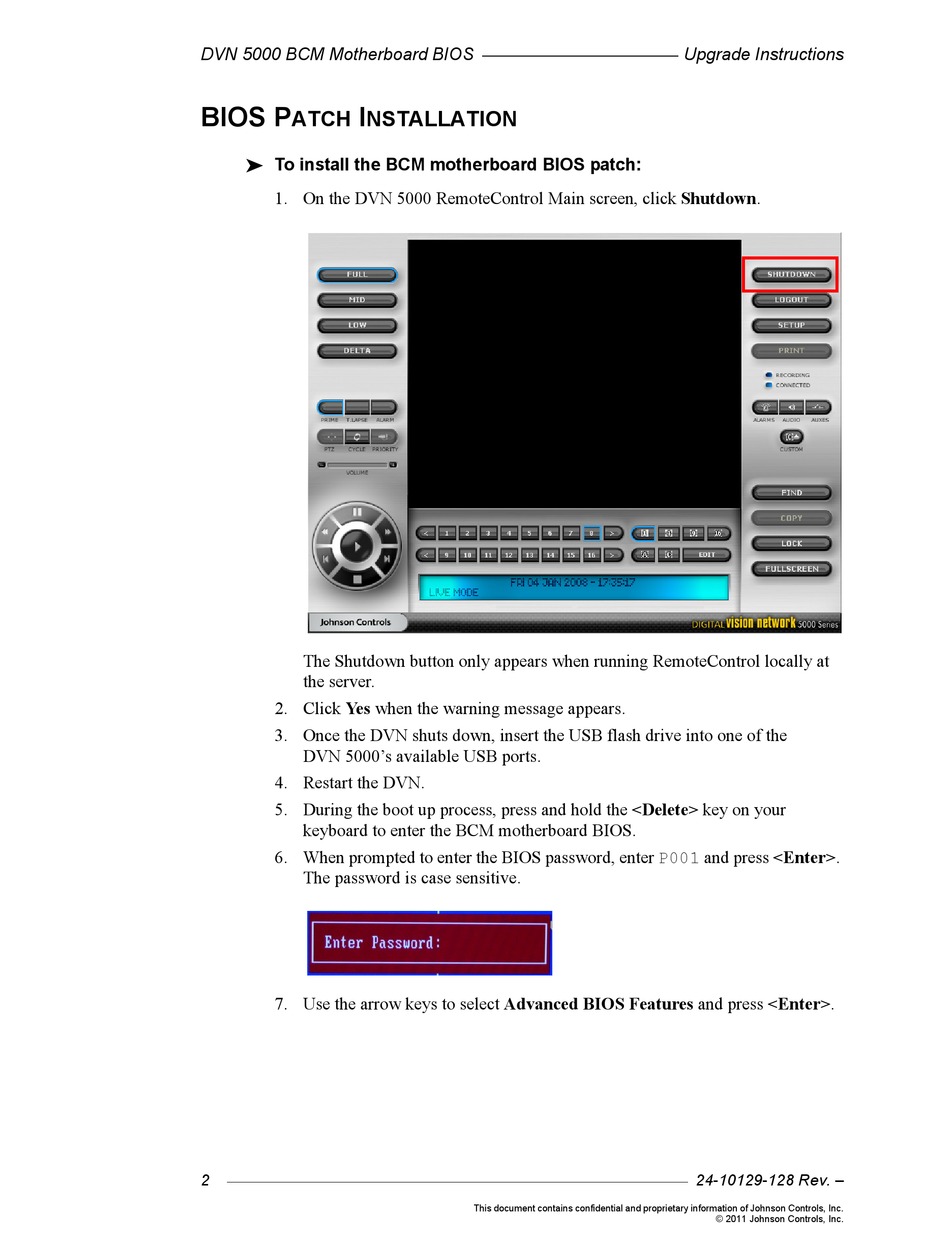

BIOS P I
ATCH NSTALLATION
 To install the BCM motherboard BIOS patch:
1. On the DVN 5000 RemoteControl Main screen, click Shutdown.
The Shutdown button only appears when running RemoteControl locally at
the server.
2. Click Yes when the warning message appears.
3. Once the DVN shuts down, insert the USB flash drive into one of the
DVN 5000's available USB ports.
4. Restart the DVN.
5. During the boot up process, press and hold the <Delete> key on your
keyboard to enter the BCM motherboard BIOS.
6. When prompted to enter the BIOS password, enter P001 and press <Enter>.
The password is case sensitive.
7. Use the arrow keys to select Advanced BIOS Features and press <Enter>.
2
