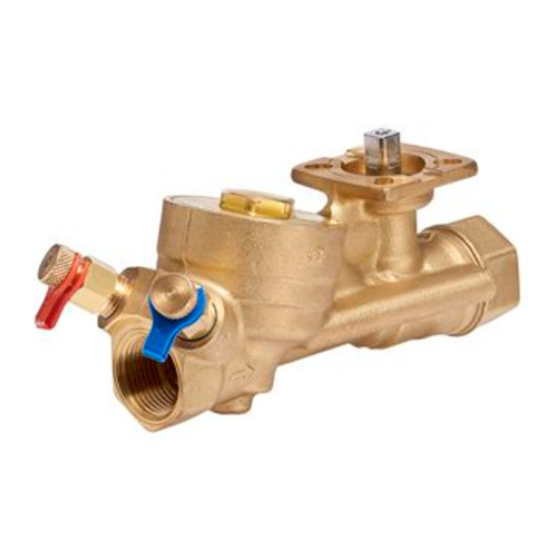

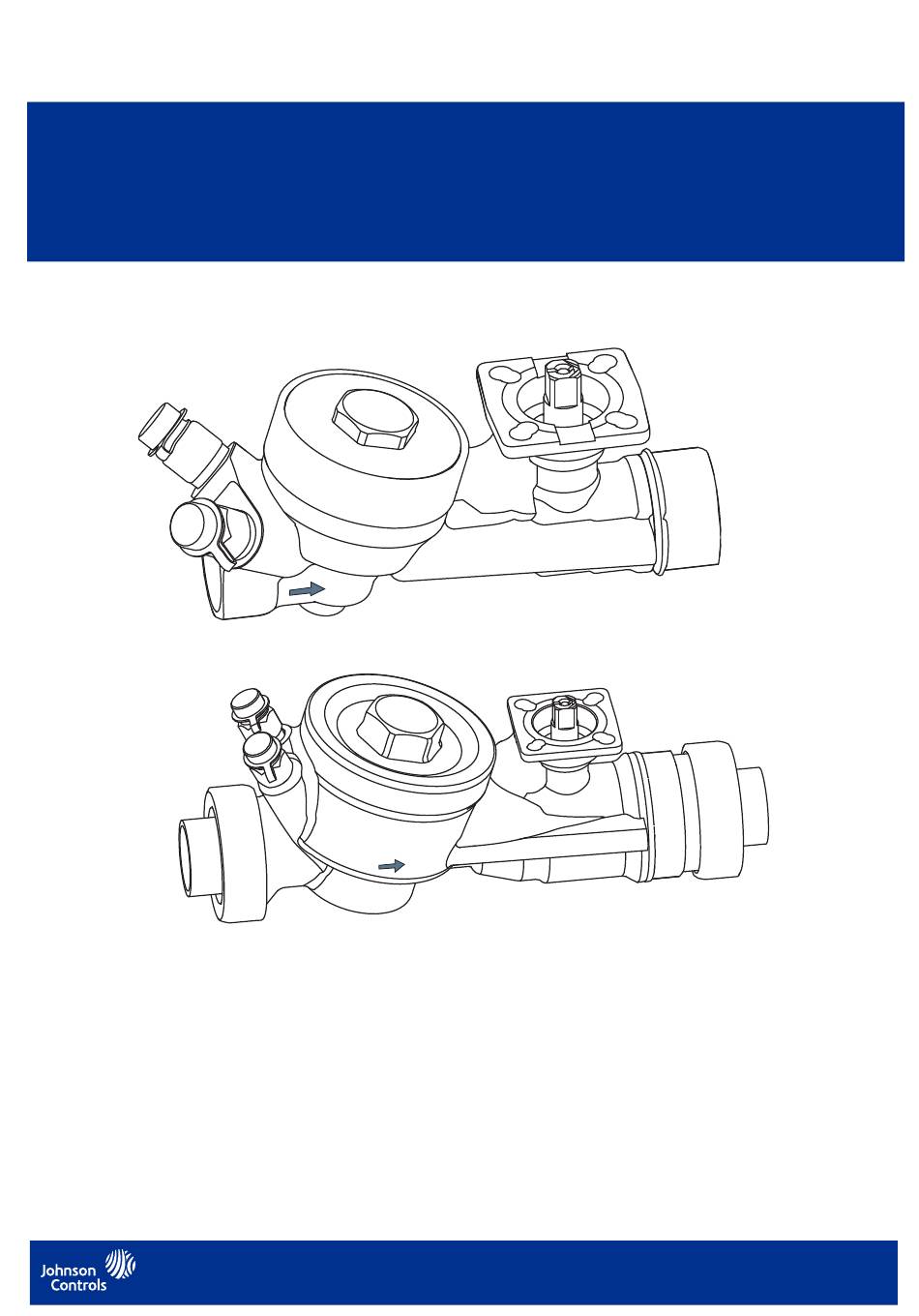

- Page 1 Istr. 240B VP140 1/2 Inch to 1-1/4 Inch (DN15-DN32) Pressure Independent Control Valve - Rotary Installation Instructions P/N 14-88360-03419, Rev. B Issued January 2019...
- Page 2 Caution Johnson Controls, Inc. does not accept any liability for improper or wrong use of this product. Proper water treatment is rec- ommended; refer to the VDI 2035 Guideline. Furthermore, maximum iron oxide in the water passing through control valve (PICV) should not exceed 25 mg/Kg (25 ppm).
- Page 3 Wiring instructions for the technician • All wiring conforms to local codes and must be carried out by authorized personnel only. • Keep high and low voltage wiring separated. • When using multi-stranded wire apply a cable ferrule to the cable end. •...
-
Page 4: Maintenance And Cleaning
For additional installation information and technical specifications, refer to the appropriate document: • VA9104-xGA-2S Series Electric Non-Spring Return Valve Actuators Installation Instructions Part No. 14-1336-15 • VA9203-AGx-2Z Series On/Off and Floating Point Electric Spring Return Valve Actuators Installation Instructions Part No. - Page 5 Table 2: VP140 Mxx, VP140 Nxx, VP140 Pxx dimensions in. (mm) Valve Size 3/4” DN20 3.2 (80) 3.9 (98) 1 (27) 7.7 (195) 0.8 (20) 9.3 (235) VP140MAU 1” DN25 3.2 (80) 3.9 (98) 1 (27) 7.7 (195) 0.9 (25) 9.6 (244) VP140NAU 1”...
- Page 6 Table 3: VP140 Lxx and VP140 Mxx with VA-9104 Series Actuator assembled in. (mm) Valve Size 1/2”” DN15 5.2 (133) 1 (20) 5.6 (142) 6.2 (158) 2.9 (75) VP140LCA+9A4xxx 1/2” DN15 5.2 (133) 1 (20) 5.6 (142) 6.2 (158) 2.9 (75) VP140LCB+9A4xxx 1/2”...
- Page 7 Table 5: VP140 Lxx, VP140 Nxx, and VP140 Pxx with VA-9203 Series Actuator assembled in. (mm) Valve Size 1/2” DN20 6 (149) 0.8 (20) 5.6 (142) 8.7 (220) 3.2 (82) VP140LCA+923xxx 1/2” DN25 6 (149) 0.8 (20) 5.6 (142) 8.7 (220) 3.2 (82) VP140LCB+923xxx 1/2”...
- Page 8 Flow direction | Sens du débit | Dirección del flujo The following diagram illustrates the flow direction. Use this diagram as a guide on how to attach the actuator. If flow reversal is possible, mount a a non-return valve. See Table 10 for the minimum differential pressure required. Le diagramme ci-dessous illustre le sens du débit.
- Page 9 Flow rate settings Table 7: VP140Lxx VP140 LCA VP140 LCB VP140 LAJ Pre-Setting Flow Flow Flow Flow Flow Flow 1000 100% 0.16 0.07 0.02 Table 8: VP140Mxx VP14MAG VP140MCC VP140MAU Pre-Setting Flow Flow Flow Flow Flow Flow 1,150 2,200 100% 1,122 1,615 1,032...
- Page 10 Measuring differential pressure | Mesure de la pression différentielle |Medición de la presión diferencial To ensure that the valve is working in the operating range, measure the differential gauge across the valve. The valve is in the operating range if the value at P1-P2 (ΔP) is higher than the start up value. If the ΔP measured value is lower than the start up value, then the valve works as a fixed orifice valve.
-
Page 11: Technical Specifications
Leakage Class IV IEC 60534-4 Compliance Johnson Controls declares that these products are in compliance with the essential requirements and other relevant provisions of the PED (Pressure Equipment Directive) 2014/68/UE (Paragraph 4, comma 3). CE Marking is not applicable. ROHS (95/2002/CE) - Page 12 Class IV IEC 60534-4 Leakage Compliance Johnson Controls declares that these products are in compliance with the essential requirements and other relevant provisions of the PED (Pressure Equipment Directive) 2014/68/UE (Paragraph 4, comma 3). CE Marking is not applicable. ROHS (95/2002/CE)
