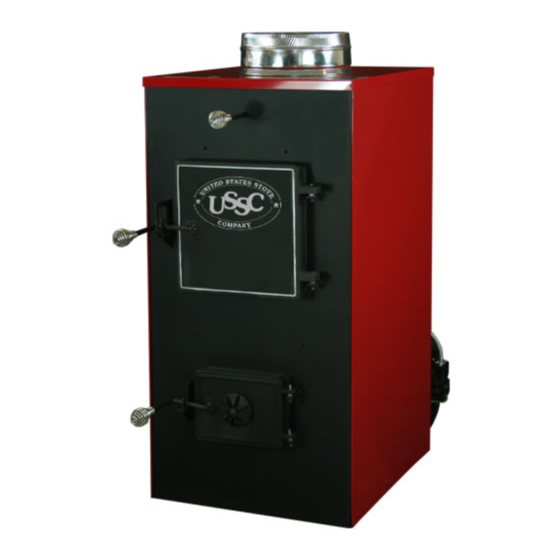

Wood & Coal Burning Furnace
Owners Manual
Models: 24AF, 24AG, 24AZ
TESTED TO UL 391
All installations must be made in accordance with local and state codes
which may differ from this manual.
UNITED STATES STOVE COMPANY
227 Industrial Park Road
P.O. Box 151
U S
South Pittsburg, TN 37380
R
USSC
851224C
Page 1
Advertisement
Table of Contents
Related Manuals for USSC Ashley 24AG
Summary of Contents for USSC Ashley 24AG
- Page 1 Wood & Coal Burning Furnace Owners Manual Models: 24AF, 24AG, 24AZ TESTED TO UL 391 All installations must be made in accordance with local and state codes which may differ from this manual. UNITED STATES STOVE COMPANY 227 Industrial Park Road P.O.
-
Page 2: Chimney Installation
AIR DUCT INSTALLATION: This furnace provides a 12" round (113 sq. in.) opening, because of efficiency and general convenience. United States Stove Company recommends a Parallel Furnace Installa- tion with direct (ducted) feed or return air to your furnace. NOTE: Cold air duct intake must be at least 25% larger than hot air duct outlet. -
Page 3: Table Of Contents
...to the world of solid fuel heating! Your new furnace has been designed and built with a high grade of materials and the strictest regard to quality. Before you start installing your new furnace, take the time to read these installation and operating instructions. -
Page 4: General Rules
Rules for the Safe Installation and Operation of Your Furnace... Check local codes, the installation must comply with strict conformance in regard to clearances. The Furnace must be installed on a noncombustible floor. Connect the furnace to tile lined inside masonry chimney or approved insulated all fuel prefabricated chimney only. - Page 5 How Your New Furnace Works Unlike conventional heating (gas, oil, electric), wood or coal heating requires more user attention. Your furnace, with its automatic combustion air blower, alleviates the constant need for adjusting the burning rate common to other units on the market.
- Page 6 Page 6 FOR MODEL(S): 24AF USSC...
- Page 7 PART # 69072 C97999 24220 C23799 83236 25085 88033 C21390 24482 88075 C21390 69077 83379 83261 24485 88033 24486 C21390 83379 83261 24382 83471 83423 69068 24501 83445 83261 23787 89799 24528 83874 69080 69097 80129 89574 89849 69082 69069 40369 40349 40366...
- Page 8 Page 8 FOR MODEL(S): 24AG, 24AZ USSC...
- Page 9 PART # 69315 C97999 24220 C23799 83236 25085 88033 C21390 24482 88075 C21390 69326B 83379 83261 24485 88033 25047B C21390 83379 83261 24382 83471 83423 69068 24501 83445 83261 23787 89799 24528 83874 69321G 69323 69097 80129 89574 89849 69082 69069 40369 40349...
-
Page 10: Furnace Location
Furnace location Before you start! It is very important you check with your dealer, local fire department, or building inspector. They will be able to in- form you of any state or local codes pertaining to the loca- tion and installation of your furnace. The ideal location for your furnace is centrally located in the basement. -
Page 11: Clearance To Combustibles
Your furnace is designed to be added on to existing duct work and operate either with or without another heat source such as a gas furnace. The following diagrams illustrate acceptable ways of ducting your furnace. Clearance to Combustible Materials Your Furnace has been tested to determine the SAFE clear- ances to combustible material. -
Page 12: Flue Recommendations
FLUE RECOMMENDATIONS The termination cap should be designed to inhibit downdrafting without restricting the exhaust discharge. The flue termination should be at least 3' above the roof line. Page 12 Chimney experts have determined that the flue termination should be at least 2' above the highest portion of the roof that is within a 10' radius. -
Page 13: Masonry Chimneys
CHIMNEY INSTALLATION With the chimney being the most important part to your installation, great care should be given to its design. MASONRY CHIMNEYS If your intention is to use an existing masonry chimney, check first with your local building official to see if this is acceptable. -
Page 14: Assembly
NOTE: Your furnace may come partially pre-assembled, but in the case that it is not, follow the instruc- tions below. Prior to assembling, place the unit in the general vicinity of the installation. This should help minimize handling damage to the unit after assembly. Note: If your basement can't handle a height of 7' 8" you must lay the furnace on two, 2 x 4's to slide shrouds onto weldment. - Page 15 Attaching furnace control center box. To separate outer cover, remove two (2) side screws and pull off black rheostat knob. Attach box to left side (facing feed door) with four (4) self-threading screws. One screw in each corner. (NOTE: Furnace control center is designed for left side attachment.
- Page 16 CAUTION: Any hot air plenum connection to a furnace must be constructed of metal. 9. Installing collar to top: To install hot air attaching collar, simply bend all tabs right angle under shroud. This may be possible with thumbs, if not, remove top and use small hammer.
- Page 17 13. Installing front and rear cast baffles, heat plates. NOTE: Grate frames and brick will slide forward and backward to allow baffle to fit. Install front cast baffle using two (2) 5/16 bolts, nuts & washers (7/16 wrench will be needed). Place the side of the baffle that has the two ribs against the front weld of the firebox.
- Page 18 17. Reposition door latches, feed and ash door. For shipping purposes, door latches are on backwards. Unfasten 7/16" nuts, reverse and snug fairly tight (latches must move freely). 18. Installing steel smoke shield. Two (2) holes are pro- vided above each corner of the feed door. Slide the two (2) bolts, supplied in the parts bag, into the holes.
-
Page 19: Accessories
Accessories Filter Box Part # 24CRM NOTE: DRAWINGS ARE FOR ILLUSTRATION PURPOSES ONLY. ACTUAL PRODUCTS MAY LOOK DIFFERENTLY. Domestic Hot Water Coil Part # 11WCK USSC Page 19... -
Page 20: Wiring Diagram
WIRING DIAGRAM NOTE: RHEOSTAT IS ADJUSTABLE. IN CASE OF LOW VOLTAGE TURN COUNTERCLOCKWISE UNTIL BLOWER WILL RUN, BUT NOT STALL, WHEN POWER IS RETURNED TO UNIT. ORANGE RHEOSTAT PT# 80090 PT# 80390 (LOCATED ON LEFT OF BOX) PT# 80388 (LOCATED ON RIGHT SIDE, TOP) PT# 80389 BROWN... -
Page 21: Electrical Components
10 BASIC FUNCTIONS OF ELECTRICAL SYSTEM Wall mounted thermostat requests heat...electrical contact occurs. Current is sent through relay, rheostat, 170 degrees thermo limit disk to activate draft fan. Relay...electrical switching device, Rheostat...current (voltage) reducer increases or de- creases draft fan R.P.M. 170 degrees limit disk...breaks off electrical current at 170 degrees (limit disk) Draft fan...small fan that activates fire, increasing fire... -
Page 22: Ash Removal
Ignite the paper and close the door. Do not attempt to open the door immediately after igniting the fire. There could be a flame flash out. It will take a few minutes for the fire to establish itself. Once you have some good red hot burning coals, add larger pieces of wood. -
Page 23: Burning Coal
Keeping your chimney and stove pipe clean is the best in- surance against chimney fires. Note: Smoke detectors and fire extinguishers should always be a part of your equip- ment. If you clean your own chimney and stove pipe, we recom- mended purchasing the equipment professionals use. - Page 24 gases given off by the new charge. A deep charge will give a more even heat and a longer fire, but it may take one to two hours before the whole bed is fully ignited. When the fire is well established and the room is becoming warm, partially close the dampers.
- Page 25 ASHES Ashes never should be allowed to accumulate in the ash pit so that they in any way impede the flow of combustion air to the fire. Excess ash accumulation can cause the fire to go out and also can cause severe damage to the grates because of the absence of a cooling flow of air beneath them.
-
Page 26: Wiring
TROUBLE-SHOOTING, PROBLEM SOLVING FOR YOUR FURNACE Problem: Smoke puffs from furnace. Solution: Check chimney draft. Check for blocked chim ney or flue pipe. Use mirror to check chimney clearance. Check ash pit - if too full, empty. Make sure furnace room is not too airtight. Make sure all chimney mortar connections are air tight. -
Page 27: Notes
Notes USSC Page 27... - Page 28 AIR PAR AIR P AIR P AIR P ____________________ ____________________ ____________________ ____________________ UNITED STATES STOVE COMPANY 227 INDUSTRIAL PARK ROAD PO BOX 151 SOUTH PITTSBURG, TN 37380 (423) 837-2100 www.USSTOVE.com ART T T T T S S S S S...
