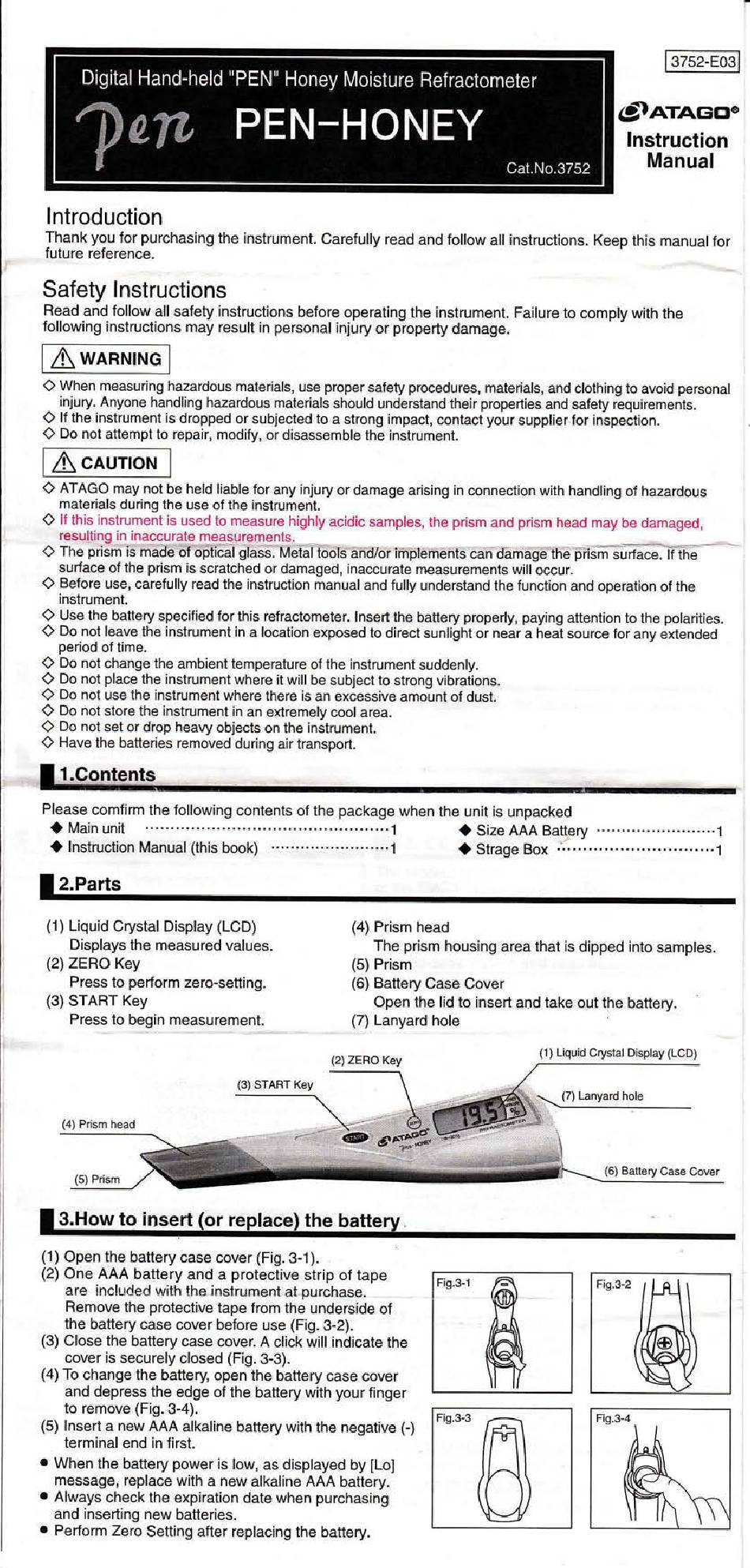

ATAGO Pen-Honey Lnstruction Manual

E%r-Eo,
4fl4a4ooo
lnstruction
Manual
lntroduction
Thank you for purchasing the
instrument. Carefully
read and follow
all instructions. Keep this
manual for
future
reference.
Safety lnstructions
Read
and
follow all safety
instructions before operating the instrument. Failure to comply with the
following
instructions may result in personal injury
or
property damage.
O When measuring hazardous materials, use proper safety procedures, materials, and clothing to avoid personal
.
injury. Anyone handling hazardous materials should understand their properties and safety requirements.
O
lf
the
instrument is dropped
or subjected
to
a
strong
impact, contact
your
supplier
for
inspection.
O
Do not attempt to
repair, modify, or disassemble the
instrument.
O
ATAGO may not be held
liable for any injury or damage arising in connection with handling of hazardous
materials during the
use of the instrument.
O
lf this instrument is used to measure highly acidic samples,
the prism
and prism head may be damaged,
.
resulting
in
inacc=urate mg?qurements.
_
_
O
The
prism
is
made of optical glass. Metal tools and/or implements can
damage! the
prism-surfaie.it ttre
-
surface of the prism
is scratched or
damaged,
inaccurate rneasurements will occur.
O
Before
use, carefully
read
the
instruction manual and fully
understand the function and operation of the
instrument.
O
Use the battery specified for this
refractometer. lnsert
the
battery properly, paying attention to
the polarities.
O
Do not leave the instrument in a location exposed to direct sunlight or neir'a
heat source for any extended
period of time.
O
Do not change the ambient temperature of
the
instrument suddenly.
O Do not place
the
instrument where
it
will be subject to strong vibrations.
O
Do not use the
instrumenl where there
is an excessive amount of dust.
O
Do not store
the instrument in an extremely cool area.
O
Do not set or drop heavy objects on the instrument.
O
Have the batteries removed during air transport.
I1-Contents
Please comfirm the following
contents of
the package when
the
unit is unpacked
I
Main unit
O
lnstruction
I
z.Parts
I
Size AAA
Battery
....'..'................1
i
Strage
Box
"i"""""""""""......1

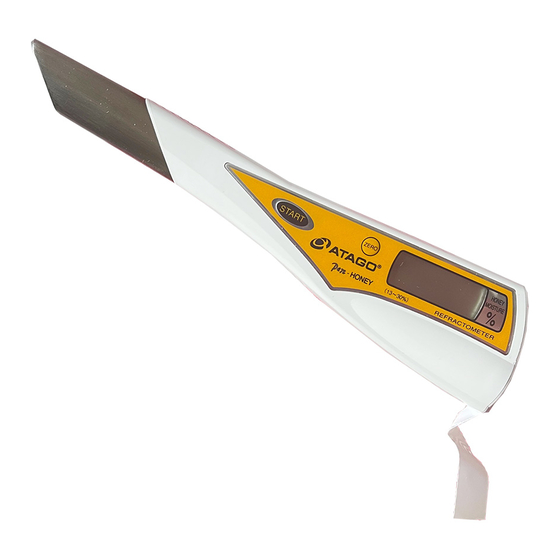

(1) Liquid
Crystal
Display (LCD)
Displays the
measured values.
(2) ZERO
Key
Press
to perform zero-setting.
(3)
START
Key
Press
lo
begin measurement.
(4) Prism head
The prism housing area
that
is
dipped
into samples.
(5)
Prism
(6) Battery Case
Cover
Open
the
lid
to
insert and take out the
battery.
(7)
Lanyard hole
(2)
ZEBO
Key
(1) Liquid Crystal
Display (LCD)
(7) Lanyard hole
(6) Battery Case
Cover
(3) START Key
(4) Prism head
(5) Prism
I
S.Xow
to insert (or
replace) the battery
(1) Open
the
battery case cover (Fig.
3-1 ).
(2)
One AAA battery and a protective strip of tape
are
lncluded with the instrument
al
purchase.
Remove the protective tape from
the
underside of
the
battery case cover before use (Fig. 3-2).
(3) Close the battery case cover. A click
will indicate the
cover
is
securely closed (Fig. 3-3).
(4)
To change
the
battery, open the battery case cover
and depress the
edge ol
the
battery with your finger
to
remove
(Fig.3-4).
(5)
lnsert
a
new AAA alkaline battery with
the negative (-)
terminal end
in
first.
o
When the battery power is low, as displayed by [Lo]
message, replace with a
new alkaline AAA batlery.
.
Always check the expiration date when purchasing
and
inserting new batteries.
o
Perform Zero Setting after
replacing the
battery.
Fio.3-'l A
"@
ffi
'"-'8
