Xtreme/SBC PCI-104 Single Board
Computer & PCI-104 Qseven Carrier
Connect Tech Inc.
42 Arrow Road
Guelph, Ontario
N1K 1S6
www.connecttech.com
CTIM-00060 Revision 0.07 2017-08-08
Board
Tel:
519-836-1291
Toll:
800-426-8979 (North America only)
Fax:
519-836-4878
Email:
sales@connecttech.com
support@connecttech.com
Advertisement
Table of Contents
Related Manuals for Connect Tech Xtreme/SBC PCI-104
Summary of Contents for Connect Tech Xtreme/SBC PCI-104
-

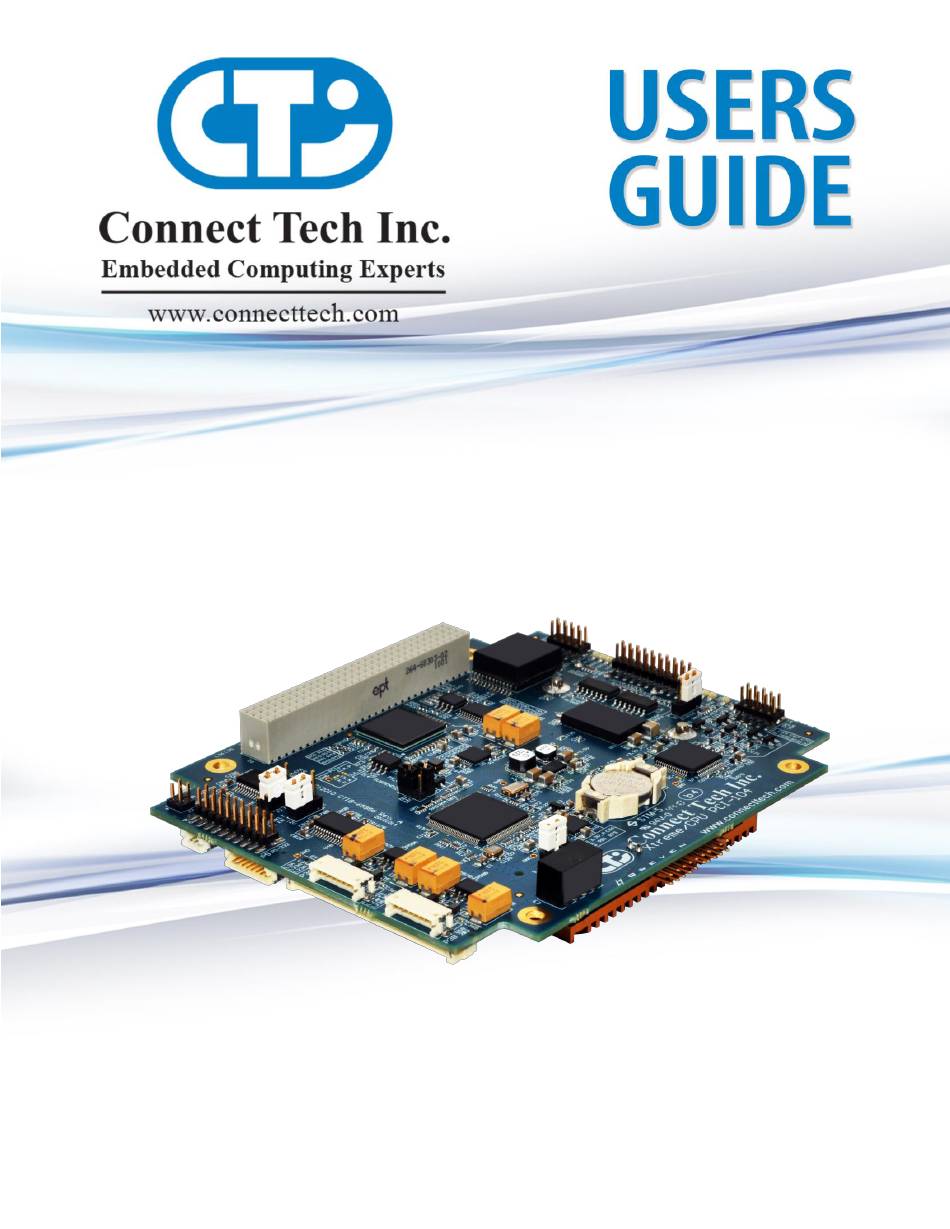

Page 1: Xtreme/Sbc Pci-104 Single Board Computer & Pci-104 Qseven Carrier Board
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Connect Tech Inc. Tel: 519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax: 519-836-4878 N1K 1S6 Email: sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00060 Revision 0.07 2017-08-08... -
Page 2: Table Of Contents
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Table of Contents Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board ........1 Customer Support Overview .......................... 4 Contact Information............................4 Limited Product Warranty ..........................5 Copyright Notice ............................ - Page 3 Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Description ..............................23 Connectors & Jumpers ..........................23 Battery..................................24 Description ..............................24 Connector & LEDs ............................24 Hardware Installation ............................25 Software Installation & Configuration ......................26 Operating System Notes ............................26 Linux ................................26...
-
Page 4: Customer Support Overview
Customer Support Overview If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech reseller from which you purchased the product. In most cases the reseller can help you with product installation and difficulties. In the event that the reseller is unable to resolve your problem, our highly qualified support staff can assist you. -
Page 5: Limited Product Warranty
Computer. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 6: Introduction
Introduction Xtreme/SBC PCI-104 Single Board Computer Connect Tech’s Xtreme/SBC PCI-104 Single Board Computers offer a variety of embedded processor options including Intel Atom, Freescale i.MX51, TI OMAP and NVIDIA Tegra. Xtreme/SBC solutions are modular and completely scalable, with access to current embedded processors that are easily upgradable to accommodate future generations of Intel Atom processors, such as Intel Atom E6xx, or ARM based processors, such as Cortex A8. -
Page 7: System Block Diagram
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com System Block Diagram The Qseven module implements the core processing features including: processor, memory, and system physical interfaces via the southbridge. Many of the Qseven modules are based on the mobile Intel Atom architecture (Z series processor + Poulsbo / SCH US15W chipset);... -
Page 8: Hardware Description
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Hardware Description Connector Locations – Top Xtreme/SBC PCI-104 – Bottom Xtreme/SBC PCI-104 Connector Summary Jumper Summary Location Connection PCI-104 Jumper Function P3A, P3B PS/2 power Fan Power... -
Page 9: Qseven Module Interface
The processor and Chipset are implemented on the Qseven CPU module, which connects to the Xtreme/SBC PCI-104 via a MXM connector. As previously mentioned, many of the existing Qseven Modules use the Intel Atom mobile architecture, Z series processor + Poulsbo / SCH US15W chipset. The Xtreme/SBC PCI-104 implements a subset of the Qseven features, as describe in the introduction. -
Page 10: Lvds
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com LVDS Description Xtreme/SBC PCI-104 provides dual 18 or 24 bit LVDS display channels via P7, which are connected directly from the Qseven module . LVDS panel supply power is selected with jumper J4 and backlight power is selected with jumper J6. - Page 11 Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Function LVDS backlight power Location Hirose DF13-8P-1.25H connector Type Pinout Signal Description +12V +12 V DC, max. 1A +12V +12 V DC, max. 1A +5 V DC, max. 1A +5 V DC, max.
- Page 12 Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Function LVDS backlight enable polarity Selects either positive or negative. Refer to the inverter power supply documentation for proper configuration. Location Type 1x2 2mm jumper block Pinout...
-
Page 13: Gigabit Ethernet
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Gigabit Ethernet Description The gigabit Ethernet interface’s controller (MAC + PHY) is implemented on the Qseven module, while the Xtreme/SBC PCI-104 provides the necessary magnetics and termination. -
Page 14: Usb 2.0
USB 2.0 Description The Xtreme/SBC PCI-104 implements 4 of the 8 available USB 2.0 connections via two connectors. Over current protection and power supply filtering is provided. Only the USB host features of the Qseven specification have been implemented, USB client features are not supported. -
Page 15: Sata
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com SATA Description The Xtreme/SBC PCI-104 provides 2 SATA host connections. US15W: Most Qseven modules based on the US15W, convert the US15W’s IDE interface to one SATA connection (as IDE master) and one built-in NAND based flash drive (as IDE slave). Consult the Qseven module’s documentation for more information. -
Page 16: Pci-104
PCI-104 Description The Xtreme/SBC PCI-104 allows up to 4 PCI-104 add-on boards to be installed in a “stack up” configuration. The PCI-104 connected through a PCIe to PCI bridge which is attached the first x1 PCIe lane of the Qseven connector. -
Page 17: Lpc Super I/O
LPC Super I/O The Xtreme/SBC PCI-104 implements many low speed legacy I/O features with the SMSC SCH3114 Super I/O, which is connected to the Qseven module via the LPC (Low Pin Count) bus. This Super I/O device provides 4 serial ports, 2 PS/2, and many other status / control features. -
Page 18: Connectors
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Connectors Function RS232 x2 Locations P9 Type 2x10 2mm header Pinout Signal Signal DCD1 DSR1 RXD1 RTS1 TXD1 CTS1 DTR1 DCD2 DSR2 RXD2 RTS2 TXD2 CTS2 DTR2... -
Page 19: Ps/2 Keyboard And Mouse
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com PS/2 Keyboard and Mouse Description A PS/2 keyboard and PS/2 mouse interface are provided via P13; where the PS/2 voltage is selectable with J1. Refer to the specification printed on the bottom of the keyboard and mouse to determine which voltage to select;... -
Page 20: Power
Power Description The Xtreme/SBC PCI-104 is designed to be powered from an ATX type power supply, and support many of the ACPI features like suspend to RAM. A CR1225 battery holder (P16) provides the VBAT for the Qseven module. -
Page 21: Connectors & Jumpers
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Connectors & Jumpers Function ATX input power Location P6 Type JST B15B-EH-A Pinout Signal Description +5V input, powers onboard power regulators & Qseven module Digital Ground +5V input, powers onboard power regulators &... - Page 22 Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Function Power Supply on Selects either PS_ON# signal from Qseven module or always on Location 1x3 2mm Type Pinout Position Description Always on Qseven PS_ON# floating Default...
-
Page 23: Fan Control
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Fan Control Description If actively cooling is required; P14 can be used to power and control a fan with J2 selecting the fan voltage. Connectors & Jumpers... -
Page 24: Battery
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Battery Description A CR1225 battery holder is provided at P16. This is a standard 3V battery, which powers the RTC (real time clock) on the CPU module. In most cases, it is not required to preserve critical BIOS settings as most Qseven modules have a flash based BIOS. -
Page 25: Hardware Installation
Power button, if applicable For the relevant cables, see the Cables & Interconnect section of this manual Stack any necessary PCI-104 modules on top of the Xtreme/SBC PCI-104 via P2, with the appropriate mounting hardware Connect the appropriate I/O peripherals to the interface cables: keyboard, mouse, Ethernet, monitor, etc. -
Page 26: Software Installation & Configuration
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Software Installation & Configuration In general, always refer to the Qseven module’s manual for proper installation of drivers and configuration software; as well as for appropriate BIOS settings. -
Page 27: Cables & Interconnect
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Cables & Interconnect The following table summarizes the Xtreme/SBC PCI-104’s headers and lists the matching cables included with the optional cable kit CKG001. Location PCB Connector Cable No. -
Page 28: Dimensions
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Dimensions Dimension Value 3.550” / 90.170mm 3.775” / 95.885mm 3.125” / 79.375mm 0.500” / 12.700mm Full 3D Dimensions Download 3D STEP Model File Here Document: CTIM-00060 Date: 2017-08-08 Page 28 of 29 Revision: 0.07... -
Page 29: Specifications
Xtreme/SBC PCI-104 Single Board Computer & PCI-104 Qseven Carrier Board Users Guide www.connecttech.com Specifications Form Factor PCI-104, (Support up to 4 installed PCI-104 add-on boards) Display VGA, LVDS flat panel Storage 2x SATA (7 pin connector) Serial Interface 2x RS-232, 2x RS-485 4x USB 2.0...
