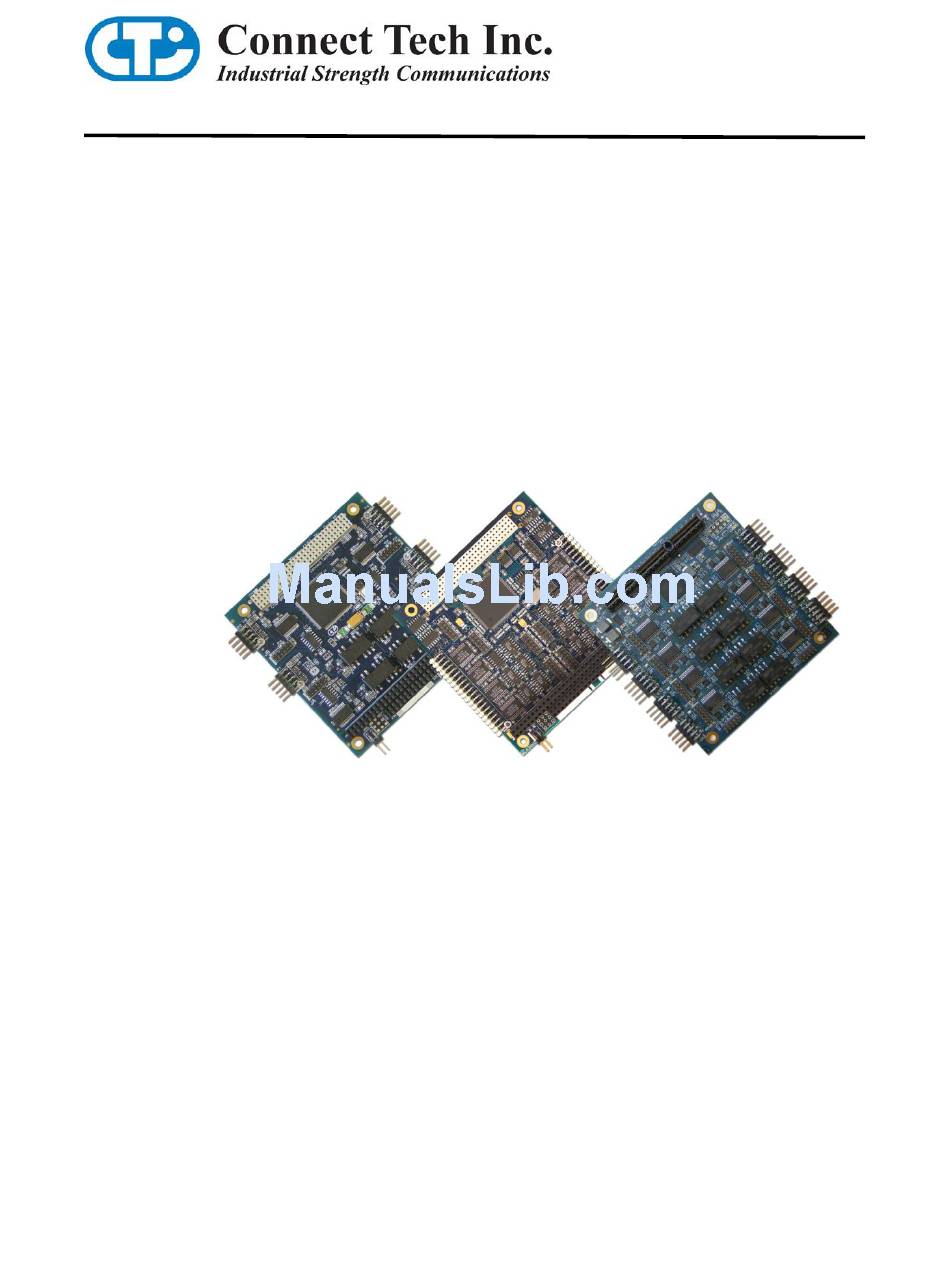

Xtreme/104 Plus, PCI-104
and PCI/104 Express Family
User Manual
Connect Tech Inc.
42 Arrow Road
Guelph, Ontario
N1K 1S6
Tel:
519-836-1291
Toll:
800-426-8979 (North America only)
Fax:
519-836-4878
Email:
sales@connecttech.com
support@connecttech.com
Web:
www.connecttech.com
CTIM-00029 Revision 0.09 February 15, 2011
Advertisement
Table of Contents
Related Manuals for Connect Tech Xtreme/104 Plus
Summary of Contents for Connect Tech Xtreme/104 Plus
- Page 1 Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual Connect Tech Inc. 42 Arrow Road Guelph, Ontario N1K 1S6 Tel: 519-836-1291 Toll: 800-426-8979 (North America only) Fax: 519-836-4878 Email: sales@connecttech.com support@connecttech.com Web: www.connecttech.com CTIM-00029 Revision 0.09 February 15, 2011...
-
Page 2: Limited Lifetime Warranty
Connect Tech Inc.‟s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at our option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non Connect Tech Inc. -
Page 3: Table Of Contents
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 4 Table of Contents Limited Lifetime Warranty ..........................2 Copyright Notice ............................... 2 Trademark Acknowledgment ..........................2 Table of Contents .............................. 3 List of Figures ........................4 List of Tables ......................... 4 Customer Support Overview .......................... -
Page 4: List Of Figures
Xtreme/104 Plus RS-232/422/485 ..................32 19.4 Xtreme/104 Plus 16 Port ....................... 33 19.5 19.6 Xtreme/104 Plus Opto 2 & 4 Port, Xtreme/104-Express Opto 8 Port ......... 34 19.7 Xtreme/PCI-104 Opto 12 Port ....................35 Cable Pinouts ..............................36 20.1 Single, Quad and Octal cables ....................36 Xtreme/PCI-104 12 Port Opto .................... - Page 5 Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual Table 4: 10 Pin R/A Port Header Pinouts on Opto Models .................34 Table 5: 10 Pin R/A Port Header Pinouts on 12 Port Opto Models .............35 Table 6: DB-9 Male Cable Pinouts .......................36 Table 7: CBG067 DB-9 Male Cable Pinouts for 12 Port Opto model ............36...
-
Page 6: Customer Support Overview
5 Customer Support Overview If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech Inc. reseller from which you purchased the product. In most cases the reseller can help you with product installation and difficulties. -
Page 7: Introduction
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 8 Introduction Connect Tech's Xtreme/104-Plus, 104-PCI and 104/Express family combines the best of the Universal PCI bus with the rugged and compact form factor of PC/104. The various models are PCI 2.0, PC/104-Plus 2.0 or PCIe/104 compliant. The modular Xtreme/104-Plus and Xtreme/104-Plus Opto cards include a PC/104 pass-through connector option for compatibility with legacy PC/104 cards. -
Page 8: Xtreme/104-Plus Opto
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 8.1.2 Xtreme/104-Plus Opto Universal PC/104-Plus adapter PCI 2.0 and PC/104-Plus compliant 2 or 4 ports jumper selectable for RS-232/422/485 Supports full duplex, half duplex and multi-drop communication modes in RS-422/485 Maximum data rates of 921.6 Kbps (RS-232) and 1.8432 Mbps (RS-422/485) -
Page 9: Xtreme/Pci-104 12 Port Opto
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 8.1.4 Xtreme/PCI-104 12 Port Opto PCI-104 Version 1.0 compliant Highest port density isolated serial board on the market! 12 ports with jumper selectable for RS-232/422/485 Supports full duplex, half duplex and multi-drop communication modes in RS-422/485 Maximum data rates of 921.6 Kbps (RS-232) and 4.166Mbps (RS-422/485) with 8x baud... -
Page 10: Xtreme/104-Plus Diagrams
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 9 Xtreme/104-Plus Diagrams Figure 1: Xtreme/104-Plus RS-232/422/485 4 and 8 port models hardware components Revision 0.09... - Page 11 Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual Figure 2: Xtreme/104-Plus RS-423 Model Hardware Components Revision 0.09...
- Page 12 Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual Figure 3: Xtreme/104-Plus RS-232/422/485/TTL Models Revision 0.09...
- Page 13 Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual Note: Configuration information for the RS-232/422/485/TTL model, including jumper settings and pinouts, is located in Electrical Interfaces (RS-232/422/485/TTL models). Figure 4: Xtreme/104-Plus Opto RS-232/422/485 Hardware Components (4 Port Model)
- Page 14 Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual Figure 5: Xtreme/104-Plus 16 Port RS-232/422/485 Hardware Components Revision 0.09...
-
Page 15: Xtreme/104 Express Diagrams
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 10 Xtreme/104 Express Diagrams RS485 control jumpers Ports 1-4 Ports 5-8 Port I/O connectors 2x5 R/A headers Line Interface selection jumpers PCI/104 Express Connector Figure 6: Xtreme/104-Express Opto 4 and 8 port Hardware Components... -
Page 16: Xtreme/Pci104 12 Port Opto Diagrams
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 11 Xtreme/PCI104 12 Port Opto Diagrams Port 12 Port 1 J12.1 J1.1 J12.2 J1.2 J11.1 J2.1 J12.2 J2.2 J10.1 J3.1 J10.2 J3.2 J9.1 J4.1 J9.2 J4.2 J8.1 J5.1 J8.2 J5.2... -
Page 17: Xtreme/104 Installation Overview
13.1 ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit boards including Connect Tech PC/104 boards, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: Leaving circuit boards in their antistatic packaging until they are ready to be installed. -
Page 18: Hardware Configuration
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 14 Hardware Configuration 14.1 Interrupts and Memory Address Selection Xtreme/104 boards are PCI and PCI Express cards, so the host computer‟s BIOS or Operating System will automatically set interrupts and memory addresses when you reboot after installation. -
Page 19: Xtreme/104 Plus And /Pci-104 Id Selection Using The Jumper Block
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 14.2.2 Xtreme/104 Plus and /PCI-104 ID Selection Using the Jumper Block If your Xtreme/104-Plus or Xtreme/PCI-104 card is equipped with a jumper block for ID selection, set your board‟s location by changing jumper positions. -
Page 20: Electrical Interfaces Xtreme/104 Plus And Express (Rs-232/422/485 And Rs-423 Models)
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual Electrical Interfaces Xtreme/104 Plus and Express (RS-232/422/485 and RS-423 Models) 15.1 RS-232 Electrical Interface This is the default setting for the interface selectable Xtreme/104-Plus and Xtreme/104-Plus Opto. To operate a port in RS-232 mode, no jumpers are set on the corresponding jumper block. -
Page 21: Jumper Block Settings
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 15.3 Jumper Block Settings The following jumper block diagram depicts typical settings on a four-port selectable Xtreme/104-Plus or Xtreme/104-Plus Opto. Jumper blocks JA, JB, JC and JD control ports 1 through 4, respectively. -
Page 22: Jumper Details
JA = Port 1, JB = Port 3, JC = Port 5, JD = Port 7 JE = Port 2, JF = Port 4, JG = Port 6, JH = Port 8. Note: this does not apply to Xtreme/104 Express and Xtreme/104 Plus 16 port models... -
Page 23: Power-On Rs485 Tri-State For Multidrop Networks
RTS signal. 15.4.1 Xtreme/104-Plus Opto and Xtreme/104 Express Opto models: Jumper J1 (Xtreme/104 Plus) and J19 (Xtreme/104 Express) control the power-on tri- state functionality. Install a jumper on the first location of J1 or J19, and configure Port 1 in RS-485 half duplex or multi-drop slave in order to tri-state Port 1 at power-on;... -
Page 24: Electrical Interfaces (Rs-232/422/485/Ttl Models)
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 16 Electrical Interfaces (RS-232/422/485/TTL Models) 16.1 RS-232/TTL Electrical Interface The following control signals are available to ports configured for RS-232 and TTL mode: TxD, RxD, RTS, CTS, RI, DTR, DSR, DCD, SG (Signal Ground) and +5V. See... - Page 25 Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual remain active by shorting the appropriate jumper. This is possible even if the board is not in RS-422/485 mode or it is disabled. Revision 0.09...
-
Page 26: Electrical Interfaces Xtreme/Pci-104 12 Port Opto
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual Electrical Interfaces Xtreme/PCI-104 12 Port Opto 17.1 I/O Port Power for the Xtreme/PCI-104 Opto 12 Port Jumpers J2A, J2B and J2C provide the ability to power on or off the I/O section of a port in groups of four. -
Page 27: Line Bias/Termination
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 17.2.6 Line Bias/Termination The RS-422/485 transceivers, both transmit and receive are optionally biased and terminated to produce a stable idle condition through jumper selectable resistors. 17.3 Jumper Block and Mode Settings for 12 Port Opto The following jumper block diagram depicts typical settings on a four-port selectable Xtreme/PCI-104 12 Port Opto. -
Page 28: Line Interface Mode Jumpers For Xtreme/Pci-104 Opto 12 Port
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual For 2-wire networks only the Jx.2A/Jx.2B jumpers should be installed. The Jx.1E/Jx.1F jumpers are not used and will have no effect. 17.5 Line Interface Mode Jumpers for Xtreme/PCI-104 Opto 12 Port... -
Page 29: Driver Software Configuration
Click on under after the driver is installed. QNX4/QNX6 – These modes are setup using the Connect Tech ctty utility. Type “use ctty” for instructions. Linux – These modes are setup using the Connect Tech set485 utility. See the Linux driver readme.dat for usage details. -
Page 30: Connectors/Pinouts
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 19 Connectors/Pinouts 19.1 40 Pin Connector Pin Numbering Figure 14: 40 Pin Connector: Pin Numbering 19.2 80 Pin Connector Pin Numbering Figure 15: 80 Pin Connector: Pin Numbering Revision 0.09... -
Page 31: Xtreme/104 Plus Rs423
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 19.3 Xtreme/104 Plus RS423 Table 1 I/O Signal Assignments for RS-423 Models Header Header RS-423 Direction Port Number Pin Number RxD+ Input CTS- Input RxD- Input RTSRef (RTS+) Signal Reference... -
Page 32: Xtreme/104 Plus Rs-232/422/485
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 19.4 Xtreme/104 Plus RS-232/422/485 Table 2: I/O Signal Assignments for RS-232/422/485 Models) Header Header RS-232 Direction Direction Port No. Port No. 422/485 (4 port (8 port models) models) 1 or 2... -
Page 33: Xtreme/104 Plus 16 Port
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 19.5 Xtreme/104 Plus 16 Port Table 3 I/O Signal Assignments for 16 Port model Port RS-232 Direction Direction Port RS-232 Direction Direction 422/485 422/485 1 or 9 Input RxD+... -
Page 34: Table 4: 10 Pin R/A Port Header Pinouts On Opto Models
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 19.6 Xtreme/104 Plus Opto 2 & 4 Port, Xtreme/104-Express Opto 8 Port Table 4: 10 Pin R/A Port Header Pinouts on Opto Models Pin No. RS-232 Direction Direction Direction RxD (+) -
Page 35: Xtreme/Pci-104 Opto 12 Port
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 19.7 Xtreme/PCI-104 Opto 12 Port Table 5: 10 Pin R/A Port Header Pinouts on 12 Port Opto Models RS-232 Direction RS422/485 4-wire Direction RS485 2-Wire Direction (Half Duplex) RxD (-) -
Page 36: Cable Pinouts
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 20 Cable Pinouts 20.1 Single, Quad and Octal cables Table 6: DB-9 Male Cable Pinouts Pin # RS-232 RS-422/485 RS-423 [1] DB-9 Signal Direction Signal Direction Signal Direction Input RxD+... -
Page 37: Xtreme/104 Plus Rs232/485/Ttl Model
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 20.3 Xtreme/104 Plus RS232/485/TTL model Table 8: RS-232/TTL Px1 Right Angled Header Pinouts (CAG104 Compatible) (See Figure 3 for port numbering and locations) Pin # RS-232/TTL Signal Direction Input... -
Page 38: Wiring Examples
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 21 Wiring Examples 21.1 RS232 Wiring Example Xtreme/104 RS232 Device Figure 16: RS-232 Wiring Diagram 21.2 RS423 Wiring Example Xtreme/104 RS232 Device TxD- TxD- RxD- TxD Ref RxD+ RXD- RxD-... -
Page 39: Rs-422/485 Wiring Examples
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 21.3 RS-422/485 Wiring Examples Note: The RS-422/485 electrical interface consists of a differential signaling scheme. You should always connect the signals with twisted pairs. The Signal Reference (GND) must be connected. -
Page 40: Specifications
Connect Tech Xtreme/104-Plus, PCI-104 and PCI/104 Express Family User Manual 22 Specifications 22.1 Operating Environment Storage temperature: -40 C to 125 C Operating temperature: 0 C to 70 C (Commercial temperature models) -40 C to 85 C (Industrial temperature models) ... -
Page 41: Communications
Connect Tech Xtreme/104 Plus, PCI-104 and PCI/104 Express Family User Manual 22.7 Communications 22.7.1 Baud Rates most models: PC/104 Plus Models: 50 bps – 921.6 Kbps RS-232/TTL: PCI/104 Express models: Any standard baud rate up to 921.6Kbps * PC/104 Plus Models: 50 bps – 1.8432 Mbps RS-422/485: PCI/104 Express models: Any standard baud rate up to 7.812Mbps *... -
Page 42: Certification
The Xtreme/104-Plus and Express product families are to be included into a device ultimately subject to FCC, DOC/IC, and CE certification. The customer is responsible for bringing the completed device into compliance prior to resale. Connect Tech Inc. has designed the Xtreme/104-Plus and Express families with EMI and EMC considerations in mind such as:...
