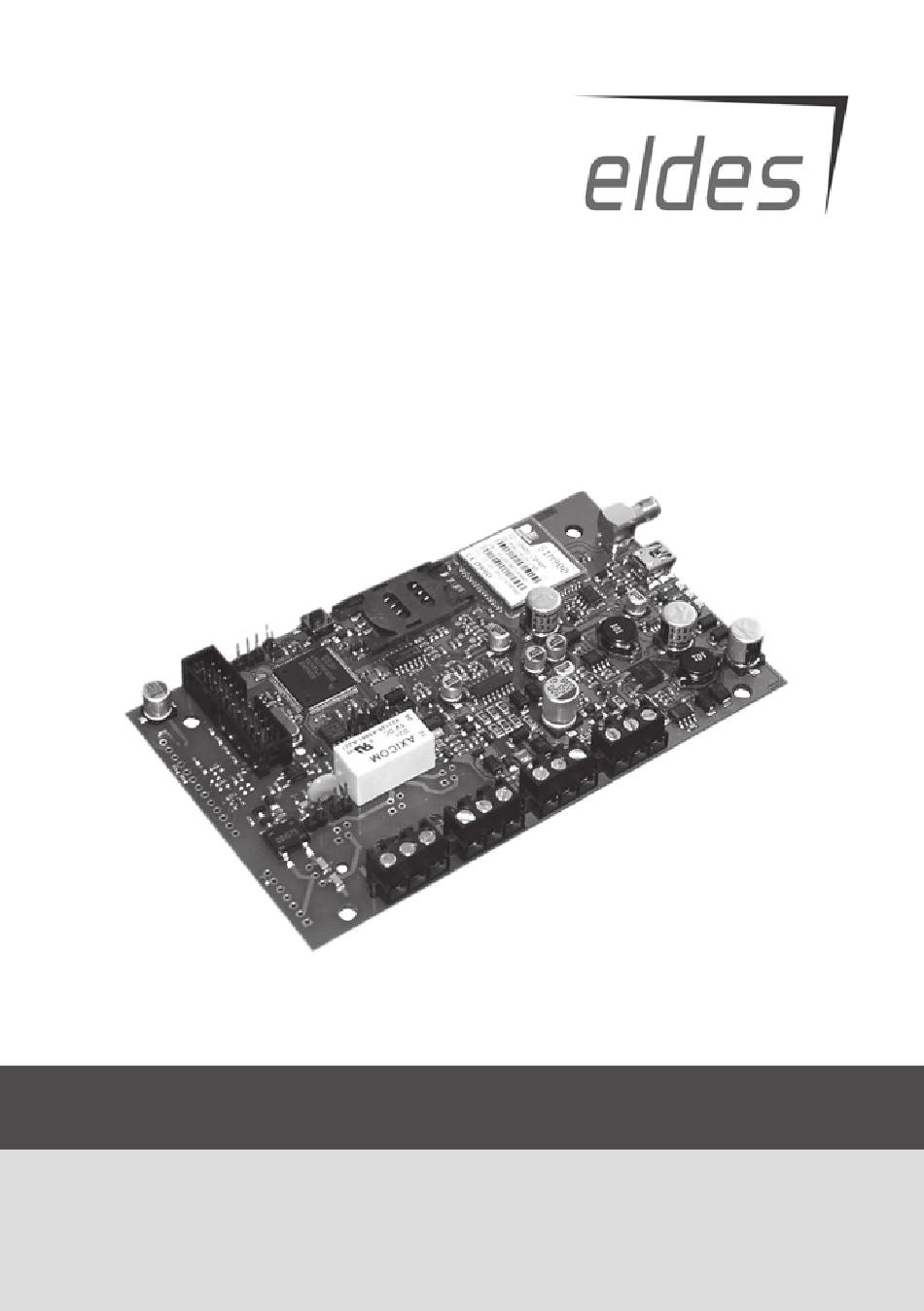

- Page 1 COMMUNICATOR ET08 / ET081...
- Page 2 • System labelling sticker is at the bottom of the device. System ET08 / ET081 is a device mounted in limited access areas. Any system repairs must be done only by qualified, safety aware personnel. Mains power must be disconnected before any installation or tuning work starts. The system installation or maintenance must not be done during stormy conditions.
-
Page 3: Table Of Contents
2.1 Electrical & Mechanical Specifications ..........5 local laws does not exceed value of the purchased 2.2 Main Unit, Connector, Pin & LED Functionality .........5 system. “ELDES UAB” is not affiliated with GSM ope- 2.2.1 Main Unit Functionality................� rators providing cellular services, therefore is not 2.2.2 Connector Functionality ................�... -
Page 4: General Information
PSTN is unavailable, has been cut off or disconnected by PSTN provider. ET08 / ET081 supports only outgoing calls. DTMF number dialing mode in alarm system must be enabled. ET08 / ET081 can detect temporary service suspension by the service provider for technical or billing reasons even if a dial tone is still present (optional feature). -
Page 5: Technical Specifications
** 4+2 protocol operates in communication mode 1, 5 and 9 ONLY (via GSM audio channel). 2.2 Main Unit, Connector, Pin & LED Functionality For con gurations SIM CARD MODEM INFO STATUS L1 L2 L3 L4 RING TIP DC+ COM Z1 N.C. N.C. Fig. No 1 USER MANUAL ELDES ET08 / ET081 V1.2... -
Page 6: Main Unit Functionality
2.2.1 Main Unit Functionality GSM MODEM GSM network 850/900/1800/1900 MHz modem SIM CARD SIM card slot / holder GSM antenna SMA type connector Fuse model – miniSMDC 500mA Mini USB port 2.2.2 Connector Functionality Labelling Description L1 - L4 Landline or PBX contacts (according to backup mode) RING RING contact TIP contact... - Page 7 Device is decoding Contact ID data to user-understandable text format. 2.3 Connection Circuit COM connectors of ET08 / ET081 and alarm system unit must be connected. ET081 Input Z1 is connected to PGM output of alarm system unit if PGM output is im- ET08 / ET081 plemented as open collector circuit or any other circuit and if it commutes with COM.
-
Page 8: Installation
3. Installation NOTE: Due to GSM network characteristics it is recommended that ET08/ET081 be equipped with a SIM card from the same GSM operator who provided the SIM cards used by users who will receive messages from the system. Thus you will ensure the quickest SMS message delivery and receipt. -
Page 9: Communication Modes
2. Connect power supply to DC+/COM contacts. Power supply is usually used as AUX- and AUX+ output of alarm system. �. No jumpers have to be set on any pins. See Fig. No. 4 for correct jumper position. Fig. No 4 USER MANUAL ELDES ET08 / ET081 V1.2... -
Page 10: Communication Mode 2. Data Transmission From Alarm System To Preset User (-S) By Sms
(-s) by SMS message. There is NO backup connection for this mode. NOTE: User phone number (-s) must be set for the communicator using ELDES Configuration Tool. Please, refer to software's HELP section for more details. -
Page 11: Communication Mode �. Data Transmission From Alarm System To Monitoring Station Via Gsm Audio Channel And Sms Messages To Preset User (-S)
In addition, the data is duplicated and decoded data to user-understandable text format and sent to preset user (-s) by SMS mes- sage. There is NO backup connection for this mode. NOTE: User phone number (-s) must be set for the communicator using ELDES Configuration Tool. Please, refer to software's HELP section for more details. -
Page 12: Communication Mode 4. Data Transmission From Alarm System To Monitoring Station Via Gprs Network
TCP/UDP Server Port - forwarded port for communication with the device via GPRS. Please, refer to EGR100 software's user guide for more details. NOTE: UDP port must be set the same both on the communicator using ELDES Configuration Tool and in EGR100 software. L1 L2 L3... -
Page 13: Communication Mode 5. Data Transmission From Alarm System To Monitoring Station Via Pstn Using Gsm Audio Channel As Backup Connection
GSM audio channel until the PSTN is restored. NOTE: Notification about PSTN loss/restore (if required) has to be enabled for the communicator using ELDES Configuration Tool. Please, refer to software‘s HELP section for more details. -
Page 14: Communication Mode �. Data Transmission From Alarm System To Monitoring Station Via Pstn Using Sms Messages As Backup Connection
(-s) by SMS message until the PSTN is restored. NOTE: User phone number (-s) must be set for the communicator using ELDES Configuration Tool. Please, refer to software's HELP section for more details. -
Page 15: Communication Mode 7. Data Transmission From Alarm System To Monitoring Station Via Pstn Using Gsm Audio Channel As Backup Connection And Sms Messages To Preset User (-S)
NOTE: User phone number (-s) must be set and notification about PSTN loss/restore (if required) has to be enabled for the communicator using ELDES Configuration Tool. Please, refer to software‘s HELP section for more details. for more details. L1 L2 L3... -
Page 16: Communication Mode 8. Data Transmission From Alarm System To Monitoring Station Via Pstn Using Gprs Network As Backup Connection
TCP/UDP Server Port - forwarded port for communication with the device via GPRS. Please, refer to EGR100 software's user guide for more details. NOTE: UDP port must be set the same both on the communicator using ELDES Configuration Tool and in EGR100 software. L1 L2 L3... -
Page 17: Communication Mode 9. Data Transmission From Alarm System To Monitoring Station Via Pstn Through Pbx Using Gsm Audio Channel As Backup Connection
GSM audio channel until the external PSTN is restored. NOTE: Notification about PSTN loss/restore (if required) has to be enabled for the communicator using ELDES Configuration Tool. Please, refer to software‘s HELP section for more details. -
Page 18: Communication Mode 10. Data Transmission From Alarm System To Monitoring Station Via Pstn Through Pbx Using Sms Messages As Backup Connection
PSTN is restored. NOTE: User phone number (-s) must be set and notification about PSTN loss/restore (if required) has to be enabled for the communicator using ELDES Configuration Tool. Please, refer to software‘s HELP section for more details. RING TIP... -
Page 19: Communication Mode 11. Data Transmission From Alarm System To Monitoring Station Via Pstn Through Pbx Using Gsm Audio Channel As A Backup Connection And Sms Messages To Preset User (-S)
PSTN is restored. NOTE: User phone number (-s) must be set and notification about PSTN loss/restore (if required) has to be enabled for the communicator using ELDES Configuration Tool. Please, refer to software‘s HELP section for more details. RING TIP... -
Page 20: Communication Mode 12. Data Transmission From Alarm System To Monitoring Station Via Pstn Through Pbx Using Gprs Network As Backup Connection
TCP/UDP Server Port - forwarded port for communication with the device via GPRS. Please, refer to EGR100 software's user guide for more details. NOTE: UDP port must be set the same both on the communicator using ELDES Configuration Tool and in EGR100 software. RING TIP... - Page 21 4. Connect power supply to DC+/COM contacts. Power supply is usually used as AUX- and AUX+ output of alarm system. 5. Set the jumper on SET and MODE pins. See Fig. No. 2� for correct jumper position. Fig. No 26 USER MANUAL ELDES ET08 / ET081 V1.2...
-
Page 22: Sms Commands
5. SMS Commands* * - only in ET081 ATTENTION! In this user manual the underscore _ character represents one <space> character. There must be no spaces or other characters at the beginning and at the end of the message. XXXX – 4-digit SMS password. In order to configure and control ET081 system using SMS message, send the text command to ET081 SIM card phone number from one of the authorized phone numbers. - Page 23 Failure/Restore Delay send the SMS report. SMS text: XXXX_TELDLY_T Value: T – period of time in seconds, range - [1-250] USER MANUAL ELDES ET08 / ET081 V1.2 2�...
-
Page 24: Appendix
To configure the system, please install configuration software ELDES Configuration Tool which can be downloaded from ELDES website at www.eldes.lt Before connecting USB cable to the computer, please, read ELDES Configuration Tool user guide available in the HELP section of the software. -
Page 25: Technical Support
Extra <space> character is left in SMS message For product warranty repair service, please, contact your local retail store where this product was purchase. If your problem could not be fixed by the self-guide above, please, contact your distributor or ELDES technical support by email support@eldes.lt More up to date information about your device and other products can be found at the manufacturer‘s website www.eldes.lt... - Page 26 For notes 2�...
- Page 27 For notes USER MANUAL ELDES ET08 / ET081 V1.2...
- Page 28 Made in Lithuania. www.eldes.lt...
