  • Page 1 ET083 2G/3G COMMUNICATOR...
  • Page 2 Please read and follow these safety guidelines to safeguard yourself and others: • 2G/3G communicator eT083 (later referred to as “the device” or “the communicator”) contains a built-in radio transceiver operating in the following bands: eU-band model: 2G 900/1800MHz, 3G 900/2100MHz bands; US-band model: 2G 850/1900MHz, 3G 850/1900MHz; Multi- band model: 2G 850/900/1800/1900MHz, 3G 800/850/900/1900/2100MHz • DO NOT use the device where it can cause potential danger and interfere with other devices –...
  • Page 3: Table Of Contents

    INSTALLATION ....................................9 GENERAL OPERATIONAL DESCRIPTION ............................10 CONFIGURATION METHODS ................................11 5.1. SMS Text Messages ..........................................11 5.2. eLDeS Configuration Tool Software ....................................11 COMMUNICATION WIRING METHODS ...............................13 6.1. RING/TIP Interface ..........................................13 6.2. Keybus and Serial Interfaces.........................................15 COMMUNICATION MODES AND METHODS............................16 7.1.
  • Page 4 In any case, the liability of eLDeS, UAB, as much as it is allowed by the laws in force, shall not exceed the price of acquisition of the product.
  • Page 5 It is strictly forbidden to copy and distribute information in this document or pass to a third party without an advanced written au- thorization from eLDeS UAB. eLDeS UAB reserves the right to update or modify this document and/or related products without a warning.
  • Page 6: General Information

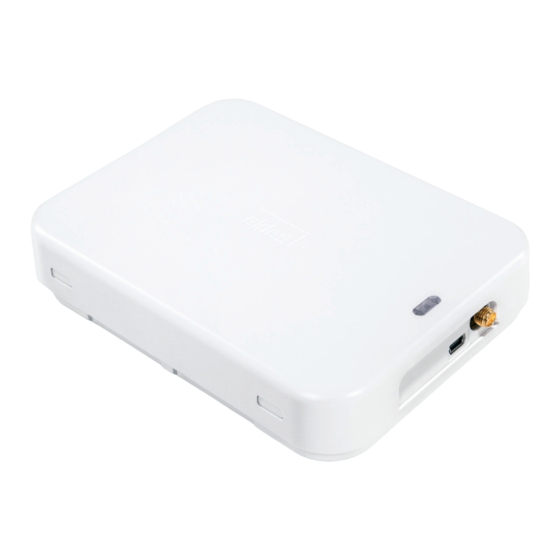

    1. GENERAL INFORMATION eT083 is a micro-controller based device intended to replace the third-party PSTN/non-2G/3G alarm panel communication method via the 2G/3G and IP-based networks. Examples of using the system: • Property security. • Non-2G/3G/PSTN alarm panel communication replacement by 2G/3G, SMS, 2G/3G, CSD or ethernet communication methods.
  • Page 7: Main Unit, Led Indicator And Connector Functionality

    SIM card not present / PIN code enabled Device operating successfully Steady ON 2G/3G indication 2G/3G signal strength No 2G/3G signal Flashing every 3 sec. Poor Flashing every 1 sec. Medium Flashing several times per sec. Good Steady ON excellent ET083 2G/3G COMMUNICATOR V1.0...
  • Page 8: Wiring Diagrams

    OR OTHER APPLIANCE +12 +24 When connecting eT083 power supply terminals to alarm panel’s auxiliary output (AUX), ensure that the output is able to maintain peak current consumption of up to 700mA. Otherwise, please use an external power supply unit for eT083.
  • Page 9: Installation

    2. Once the PIN code is disabled, place the SIM card into the SIM CARD slot of the device. 3. Place the device inside the metal enclosure. 4. Connect the 2G/3G antenna. Based on the type of the 2G/3G antenna supplied with eT083 device, follow the recommendations for the anten- na installation: Never install in the following locations: • inside the metal cabinet...
  • Page 10: General Operational Description

    SMS text message. Alternatively, the outputs can be controlled automatically based on the associated eT083 input alarm/restore event. The outputs can also be used for PSTN or 2G/3G connection loss indication as well as for arming/ disarming by connecting an output to one of the alarm panel’s zones pre-configured as a keyswitch.
  • Page 11: Configuration Methods

    • Direct connection via ethernet using eLAN3-ALARM communicator. In order to start using the remote configuration feature, please run the step-by-step wizard and follow the steps provided in the start page of eLDeS Configuration Tool software. Please, note that based on the selected method, it might be necessary to send an SMS text message to the system’s phone number in order to initiate the remote connection.
  • Page 12 After the system configuration is complete, use one of the following methods to end the configuration process: • Click Disconnect or Stop button and close eLDeS Configuration Tool software; • The session will automatically expire in 20 minutes. Before the last 5 minutes, the software will offer the user to extend the session for another 20 minutes.
  • Page 13: Communication Wiring Methods

    PSTN line. For more details, please refer to 6.1. RING/TIP Interface • Keybus or Serial interface – The alarm panel is linked up with eT083 communicator via the keybus or serial interface just like the alarm panel accessory, such as keypad. For more details, please refer to 6.2. Keybus and Serial Interfaces Only one of the aforementioned methods is supported at a time.
  • Page 14 • With External PSTN Line Supervision – The communication link between the alarm panel and the monitoring station is established directly via PSTN line connected via PBX (private branch exchange) adding external PSTN state (terminals L1 and L2) supervision provided by eT083 communicator.
  • Page 15: Keybus And Serial Interfaces

    To manage the aforementioned parameters, please refer to the following configuration parameter. Select third-party alarm Config This operation may be carried out from the PC using the ELDES Configuration Tool software. panel model Tool * Supported by Serial interface connection.
  • Page 16: Communication Modes And Methods

    * Supported only when eT083 is linked up with the alarm panel via RING/TIP interface (see 6.1. RING/TIP Interface). Does NOT support notifi- cations to the listed user by SMS text message and data report to the monitoring station regarding PSTN line loss/restore events (see 15. PSTN CONNECTION STATE SUPERVISION).
  • Page 17 SIA IP SIA IP Contact ID eGR100 eLAN3-ALARM eLAN3-ALARM By SMS: converted into Kronos user-understandable text eGR100 eGR100 SIA IP Kronos Kronos SIA IP SIA IP 2G/3G eLAN3-ALARM eGR100 eGR100 Kronos Kronos SIA IP SIA IP ET083 2G/3G COMMUNICATOR V1.0...
  • Page 18: Basic Mode

    • Voice Calls + SMS • IP Basic mode is supported only when eT083 is linked up with the alarm panel via RING/TIP interface. The jumper position on SeT/MODe pins becomes ineffective as soon as Advanced mode is enabled. 7.1.1. Voice Calls Method Using this method the communicator retrieves Ademco Contact ID or 4+2 data from the alarm panel and transmits it to the monitoring station via 2G/3G audio direct channel without influencing the data itself.
  • Page 19 Based on the alarm panel’s documentation, ensure that all CID event codes supported by the alarm panel are added under the Messaging Settings section. For more details on the parameters located under Messaging Settings section, please refer to ELDES Configuration Tool software’s HeLP file. 7.1.3. Voice Calls+SMS Method...
  • Page 20 • Password – Password provided by 2G/3G operator. 10. On eT083: If a ping signal is required in order to periodically verify the online status of the device, set the Test Period. For SIA IP protocol, please enable Contact ID Ping parameter and change the CID event code (by default - 602) if required.
  • Page 21: Advanced Mode

    7.2. Advanced Mode The communication method of Advanced mode is selected using ELDES Configuration Tool software. Advanced mode features the following com- munication methods: • Voice Calls • SMS • IP • CSD • PSTN* Advanced mode supports 1 primary and up to 2 backup connections. All of the aforementioned communication methods can be set up as primary or backup connection in any sequence order.
  • Page 22 8. On eT083: Open Events Log section to monitor the activity. 9. On eT083****: If required, the Account number set on the alarm panel can be overridden under System → Security Panel Settings section. For more details, please refer 9. MONITORING STATION PHONE NUMBER AND ACCOUNT REPLACEMENT.
  • Page 23 • Password – Password provided by 2G/3G operator. 7. On eT083: If a ping signal is required in order to periodically verify the online status of the device, set the Test Period. For SIA IP protocol, please enable Contact ID Ping parameter and change the CID event code (by default - 602) if required.
  • Page 24: G/3G Modem Settings

    6. On eT083: Open IP / CSD Settings → CSD Settings section and set the following parameters and set up to 3 monitoring station phone num- bers. The supported phone number format is the following: • International (with plus) – The phone numbers must be entered starting with plus and an international country code in the following format: +[international code][area code][local number], example for UK: +44170911XXXX1.
  • Page 25: Monitoring Station Phone Number And Account Replacement

    SMS password – 4-digit password used for device configuration and output control from up to 3 user phone numbers by SMS text messages, remote configuration initiation from up to 2 administrator phone numbers and logging in to ELDES Configuration Tool software. By default, SMS password is 0000, which is ReCOMMeNDeD to change.
  • Page 26: Inputs

    The inputs can also be used for PGM output connection of non-2G/3G alarm panel. When eT083 communicator is linked up with the alarm panel using keybus interface communication wiring method (see 6.2. Keybus Interface), Z1 and Z2 terminals convert into keybus interface and can no longer be used as digital inputs. In such case only Z3 terminal can still be used as a digital input.
  • Page 27 To manage input alarm and restore data reports and set the Account number, please refer to the following configuration method. Config Manage input data This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool reports...
  • Page 28: Outputs

    Value: ssss – 4-digit SMS password; o – output number, range – [1... 3]; out-name – up to 23 characters output name. Example: 1111_TC1:Pump Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: ssss_STATUS View output names Value: ssss –...
  • Page 29: Output Control By Event

    – [1..9999] seconds; up to 23 characters output name; out-name – up to 23 characters output name.. Example: 1111_Pump:OFF:56 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: ssss_STATUS View output status Value: ssss –...
  • Page 30 • Restore from panel – The output action will be carried out in case the alarm panel provides a restored event matching the specified event code. Config Manage output control This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool by event...
  • Page 31: Tampers

    • one located on the front side of the PCB supervising the front cover in case it is illegally opened (see fig. #1). • the other one located on back of the PCB supervising the back side of the enclosure in case the eT083 is illegally detached from the wall (see fig #1).
  • Page 32: Periodic Data Link State Supervision

    Advanced mode settings. Once enabled, device will periodically verify the connectivity by ping signal transmission to the specified test server address and port ( by default - eldes.lt:80) every 15 minutes (by default). In case the device has failed to deliver he ping signal to the test server address, the device will treat this event as data link loss and it will attempt to re-establish the connection by transmitting the ping signal every 1 minute.
  • Page 33: Date And Time

    2G/3G, SMS or Voice Calls will be skipped. 2.2 If the communication is established via the last connection in the priority order and if it is set as PSTN, eT083 relay will remain switched ON (resulting in direct connection of alarm panel to PSTN via RING/TIP interface of eT083) until the 2G/3G network registration is successful.
  • Page 34: Periodic Test

    By default, the periodic test s disabled and Account number is not set. To enable/disable periodic test, set a transmission period and Account num- ber, please refer to the following configuration method. Config Manage periodic test This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool data report Config Set Account for periodic This operation may be carried out from the PC using the ELDES Configuration Tool software.
  • Page 35: Technical Support

    7. Parameters restored to default. Alternatively, please refer to the following configuration method. Config Restore default This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool parameters 24.3. Updating the Firmware via USB Cable Power down the device.
  • Page 36: Updating The Firmware Remotely

    • APN, user name and password are set up. eT083 communicator supports FOTA (firmware-over-the-air) feature allowing to update the firmware remotely over the 2G/3G network. Once the update process is initiated, the system connects to the specified FTP server address where the firmware file is hosted and begins downloading and re-flashing the firmware.
  • Page 37: Related Products

    25. RELATED PRODUCTS Power supply Plastic enclosure eSR100 - digital receiver ET083 2G/3G COMMUNICATOR V1.0...
