Eldes ET082 User Manual

Gsm/gprs communicator
Hide thumbs Also See for ET082:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
GSM/GPRS COMMUNICATOR
ET082

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET082 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes ET082

Summary of Contents for Eldes ET082

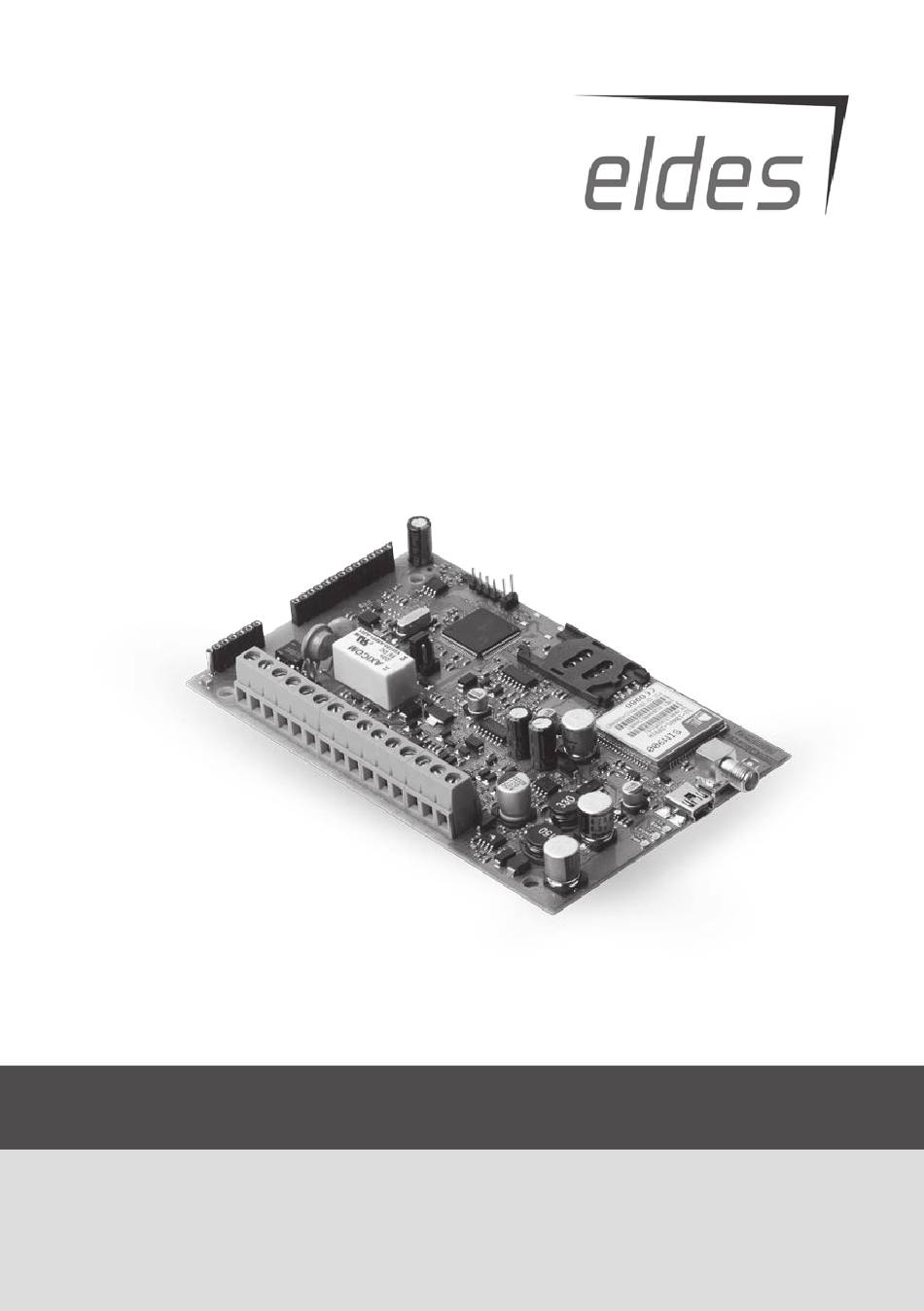

  • Page 1 GSM/GPRS COMMUNICATOR ET082...
  • Page 2 • System labelling sticker is at the bottom of the device. System ET082 is a device mounted in limited access areas. Any system repairs must be done only by qualified, safety aware personnel. Mains power must be disconnected before any installation or tuning work starts. The system installation or maintenance must not be done during stormy conditions.

  • Page 3: Table Of Contents

    6.2 Remote System Configuration via GPRS Connection ....21 This document describes only basic operation 6.2.1 Establishing Remote Connection Between and installation of ET082 device. It is very impor- ET082 System and Configuration Server ......22 tant to read the user manual before starting to use 6.2.2 Connecting to ELDES Configuration Server the system.

  • Page 4: General Information

    1. General Information Communicator ET082 is a device for transmitting data from alarm system to monitoring station via: • PSTN (telephone landline); • Voice Calls (GSM audio channel); • Voice Calls (GSM audio channel) and/or to users via SMS message;...

  • Page 5: Technical Specifications

    Voltage: 18V; current: 25mA; impedance: 600Ω Dial Tone Frequency of Generated Phone line 350 Hz For configurations SIM CARD UART MODEM INFO STATUS Fig. No 2 L1 L2 L3 L4 RING TIP C1 DC+ COM C3 Z3 User manUal elDes eT082 v1.2...

  • Page 6: Main Unit, Connector, Pin & Led Functionality

    GSM LED indications. GSM LED Indication GSM Signal Strength No connection Flashing every 3 seconds The connection is not reliable Flashing every 1 second Satisfactory Flashing several times per second Good Excellent 6 USER MANUAL ELDES ET082 V1.0...

  • Page 7: Et082

    ET082 COM connectors of ET082 and alarm system unit must be connected. ET082 inputs Z1 - Z3 are connected to PGM outputs of alarm system unit if PGM output is DC+ COM im plemented as open collector circuit or any other circuit and if it commutes with COM. It is also possible to connect motion sensor or any other sensor to ET082 Z1 - Z3 inputs.

  • Page 8: Installation

    4. The system should start in less than a minute. GSM LED indicator should be blinking or be ON indicating successful con- nection to GSM network. NOTE: It is highly recommended to choose the same GSM cellular provider both for users and for ET082 communicator in order to assure fast and reliable SMS message delivery and phone call connection.
  • Page 9 4. Operation Description ET082 communicator is a GSM/GPRS device transmitting data from alarm system to monitoring station and/or preset user phone number. The following diagram indicates communication modes & methods supported by the device: USING PSTN? NO / PSTN is cut-o...

  • Page 10: Pstn Line And Gsm Connection Status Monitoring

    For more details, please refer to ELDES Configuration Tool software‘s HELP section. ET082 can also detect temporary service suspension by the service provider for technical or billing reasons even if a dial tone is still present as “busy” tone. This feature requires an additional audio module which must be requested in advance.

  • Page 11: Communication Modes & Methods

    5. Communication Modes & Methods ET082 communicator supports Basic and Advanced modes & methods providing a variety of communication protocols. Basic mode is recommended when only one communication method is required while Advanced mode is recommended to use when one or more backup communication methods are required.

  • Page 12: No Pstn Connection

    5.1.1 No PSTN Connection With this wiring the communicator retransmits data from alarm system to monitoring station by the selected communication method. C1 DC+ COM C2 Z2 Z1 C3 Z3 COM L1 L2 L3 L4 RING TIP RING/TIP AUX+ AUX- Fig.

  • Page 13: With Pstn Connection Through Pbx

    The communication method of Basic mode is selected by jumper position on SET/MODE PCB pins. Basic mode features the follo- wing communication methods: • Voice Calls; • SMS; • Voice Calls + SMS; • GPRS. NOTE: The jumper position on SET/MODE PCB pins becomes ineffective as soon as Advanced mode is enabled. User manUal elDes eT082 v1.2...

  • Page 14: Voice Calls Method

    • continues transmitting data to monitoring station via GSM audio – direct chanel until the PSTN is restored. NOTE: By default, notification about PSTN loss/restore is disabled and has to be enabled if required using ELDES Configuration Tool software. For more details, please, refer to software’s HELP section.

  • Page 15: Voice Calls + Sms Method

    • duplicates and converts data and sends it to preset user (-s) by SMS message until the PSTN is restored. NOTE: By default, notification about PSTN loss/restore is disabled and has to be enabled if required using ELDES Configuration Tool software. For more details, please, refer to software’s HELP section.

  • Page 16: Gprs Method

    NOTE: Port must be set the same both on the communicator using ELDES Configuration Tool and in EGR100 software. For more details, please, refer to EGR100 or Kronos LT/Kronos NET and ELDES Configuration Tool software’s HELP section for more details.

  • Page 17: Advanced Mode

    5.3 Advanced Mode The communication method (-s) of Advanced mode is selected by ELDES Configuration Tool. Advanced mode features the following communication methods: • Voice Calls; • SMS; • GPRS; • CSD. Advanced mode supports 1 primary and up to 2 backup connections. All of the aforementioned communication methods can be set up as primary or backup in any sequence order.

  • Page 18: Sms Method

    For more details, please, refer to ELDES Configuration Tool software’s HELP section. If PSTN connection is used, the communicator also monitors the voltage (dial tone monitoring optional) on the PSTN and in case the PSTN is unavailable, disconnected or cut off (voltage drops below 4V), ET082: •...

  • Page 19: Gprs Method

    NOTE: Port must be set the same both on the communicator using ELDES Configuration Tool and in EGR100 software. For more details, please, refer to EGR100 or Kronos LT/Kronos NET and ELDES Configuration Tool software’s HELP section for more details.

  • Page 20: Csd Method

    For more details, please, refer to ELDES Configuration Tool software’s HELP section. If PSTN connection is used, the communicator also monitors the voltage (dial tone monitoring optional) on the PSTN and in case the PSTN is unavailable, disconnected or cut off (voltage drops below 4V), ET082: • switches to CSD method, •...

  • Page 21: Configuration & Control

    6.1 Ways of System Configuration In order to configure and control the system by SMS message, send the text command to the ET082 system phone number from one of the preset user phone numbers. The structure of SMS message consists of 4 digit SMS password (the default SMS password is 0000 –...

  • Page 22: Establishing Remote Connection Between Et082 System And Configuration Server

    SMS text: XXXX_STCONFIG Example: 1111_STCONFIG Initiate the In case it is necessary to establish a connection between ET082 system and a third-party con- Connection to figuration server, send the following SMS message. Third-Party Server SMS text:...

  • Page 23: Ending The Configuration Process

    Server - Press Disconnect button and close ELDES Configuration Tool software; - Wait for the system to reply with an SMS message confirming the end of the session; - Shut down the connection with the server at any time by sending an SMS message.
  • Page 24 Each input has an alarm text which is sent by SMS message to a preset user (-s) in case the Set Input Alarm Text input is violated. Manufacturer default input alarm text: Z1 - Input 1 TRIGGERED, Z2 - Input 2 TRIGGERED, Z3 - Input 3 TRIGGERED.
  • Page 25 Value: Cx - output number, range - [C1... C3] Example: 1111_Pump:ON This command turns off a specified output. Turn OFF Output SMS text: XXXX_Cx:OFF or XXXX_OutputName:OFF Value: Cx - output number, range - [C1... C3] Example: 1111_C1:OFF User manUal elDes eT082 v1.2...
  • Page 26 Failure/Restore Delay send the SMS report. SMS text: XXXX_TELDLY:T Value: T – period of time in seconds, range - [1-250] This command provides a list of SMS message structure examples supported by ET082. List SMS Message Structure SMS text: XXXX_HELP...

  • Page 27: Technical Support

    ELDES technical support by email support@eldes.lt More up to date information about your device and other products can be found at the manufacturer‘s website www.eldes.lt User manUal elDes eT082 v1.2...

  • Page 28: Related Products

    8. Related products ET08P plastic enclosure Power supply...
  • Page 29 User manUal elDes eT082 v1.2...
  • Page 30 Made in Lithuania. www.eldes.lt...
