High Temperature Limit Upgrade Instructions
The intent of these instructions are to upgrade the high temperature limit from a probe style design to a bulb and
capillary style design with reset on a model CPE14 pasta cooker.

Parts Required

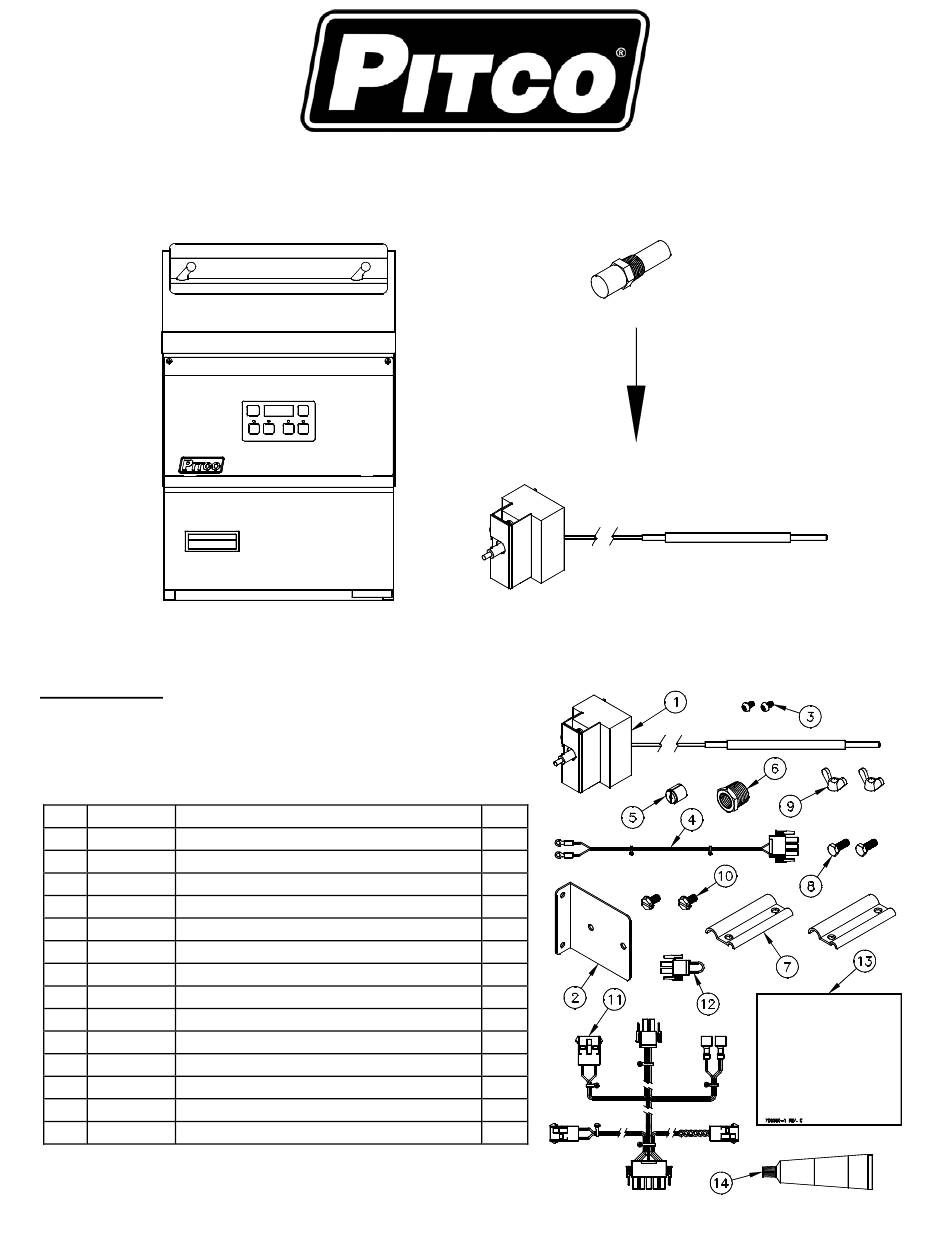

B8702501-CL Parts List
Upgrade Kit, Hi-Limit CPE14
Item Part #
Description
1
PP10803 Hi-Limit, 250F LB117-026
2
A1306701 Hi-Limit Bracket
3
PP10687 Screw, 6-32 x 5/16" Truss Hd.
4
B6745502 Wiring, Hi-Limit
5
A3316205 Fluropolymer Seal (Short)
6
PP10658 Bushing, Reducer 3/8 X 1/4 NPT BRS
7
A1406702 Bulb Clamp
8
P0112000 Screw, 10-24 x 1/2" Hex Head SST
9
PP10568 Nut,Wing 10-24 SST
10 PP10023 Screw, 10-24 Hex Head Self Tapping
11 B6782901 Wiring, Front Entrance Box
12 B6782401 Wiring, DVI Jumper
14 S2028501 Silicone Sealant
15 L80038
Instructions
L80-038 Rev. 1
Model CPE14
Page 1 of 5
with Digital Controller
Qty.
1
1
2
1
1
1
2
2
2
2
1
1
1
1
1
11/6/2012
