AV-WALL-DT4oB
User's manual
www.auvitran.com
AV-WALL-DT4oB User's manual v1.3
Page 1 / 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-WALL-DT4oB and is the answer not in the manual?

Questions and answers

Summary of Contents for AuviTran AV-WALL-DT4oB

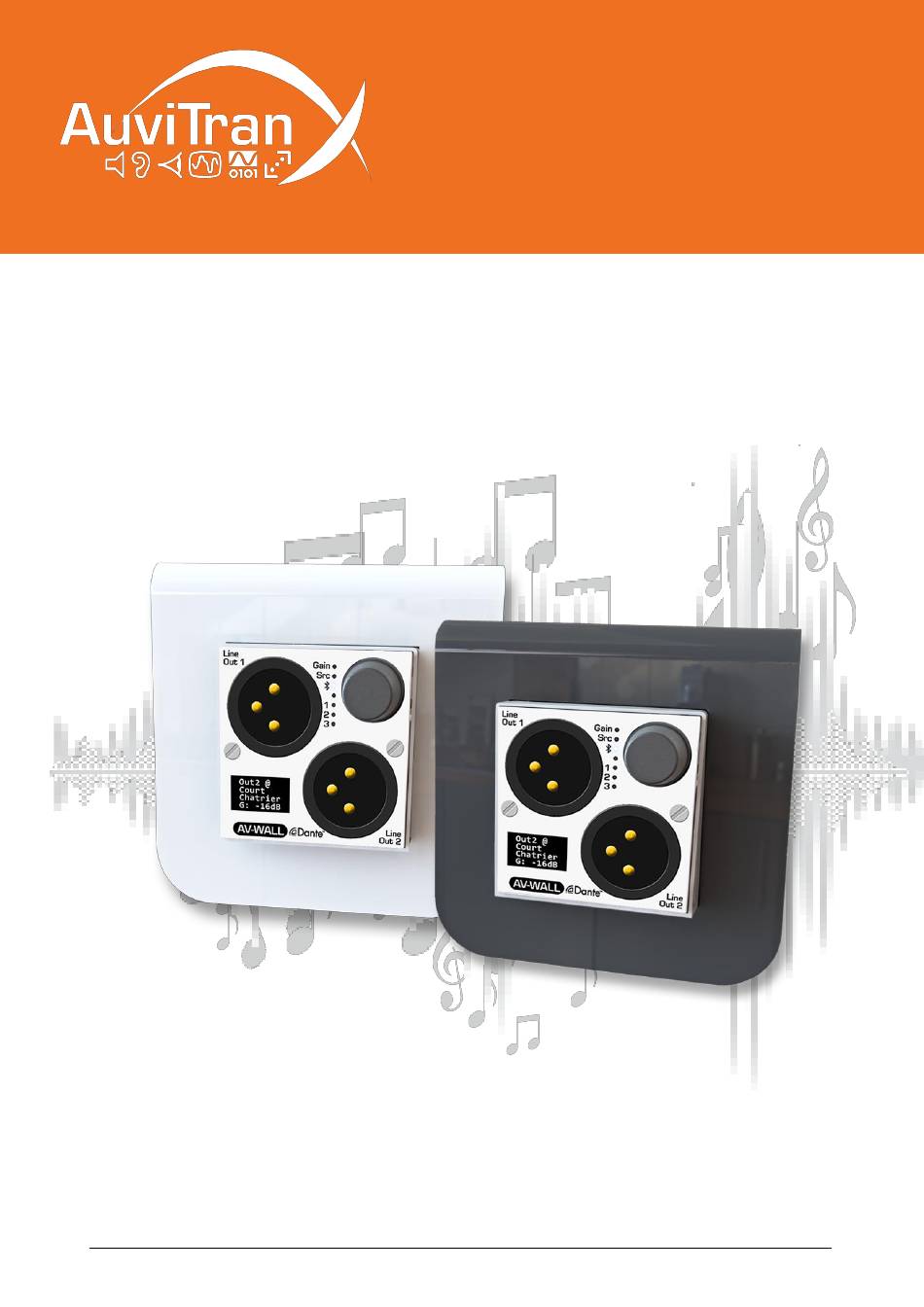

  • Page 1 AV-WALL-DT4oB User’s manual www.auvitran.com AV-WALL-DT4oB User’s manual v1.3 Page 1 / 16...
  • Page 2: Table Of Contents

    AV-WALL-DT4oB Quick Start ................4 Power to Start-up ..................4 Connect the AV-WALL-DT4oB to an IP/Dante network ........4 AV-WALL-DT4oB Dante settings ..............5 Access to AV-WALL-DT4oB User Interface via AVSMonitor on Windows OS ..6 AV-WALL-DT4oB setting via rotative push-button functions ........7 Control mode ....................7 3.1.1 Change the gain ........................
  • Page 3: Legacy

    1. Legacy 1.1 LIMITATION OF LIABILITY In no case and in no way, the provider of this software (AuviTran, the distributor or reseller, or any other party acting as provider) shall be liable and sued to court for damage, either direct or indirect, caused to the user of the software and which would result from an improper installation or misuse of the software.
  • Page 4: Av-Wall-Dt4Ob Quick Start

    To start your AV-WALL-DT4oB, connect the RJ45 port to an active POE device using a CAT5E/6 cable (100Mb/s connection). When powered, the 6 White led lights on the AV-WALL-DT4oB front face will flash and then the lights will flash alternatively until the device is switched on.
  • Page 5: Av-Wall-Dt4Ob Dante Settings

    2.3 AV-WALL-DT4oB Dante settings The AV-WALL-DT4oB Dante settings are done via the standard Audinate Dante Controller. Download Dante Controller on the Audinate web site at the following web address https://www.audinate.com/products/software/dante-controller Install Dante Controller by double clicking on the download file.
  • Page 6: Access To Av-Wall-Dt4Ob User Interface Via Avsmonitor On Windows Os

    If your device doesn’t appear, your network configuration is probably not good. Return to AVS-Control-Panel using “Edit/Control panel” menu and reselect another network or check if your PC is in the same network that the AV-WALL-DT4oB AV-WALL-DT4oB User’s manual v1.3...
  • Page 7: Av-Wall-Dt4Ob Setting Via Rotative Push-Button Functions

    The Control mode is activated by pressing the push-button briefly. The parameter we are acting on is flashing. Another brief press will pass to the next parameter and the next LED will flash. The Control mode permits to act on the AV-WALL-DT4oB DT4oB: Change the gain Change the source of outputs Play / Pause a paired Bluetooth device AV-WALL-DT4oB User’s manual v1.3...
  • Page 8: Change The Gain

    On + Turn right Go to the previous Dante device Speaker Bluetooth) 3 blinking +5db Push **Go to Bluetooth Control * If button gain control is enabled. **If Bluetooth Device Control is enabled. AV-WALL-DT4oB User’s manual v1.3 Page 8 / 16...
  • Page 9: Unavailable Devices Handling & Dante Remote Control

    The source isn’t register as a label then the Dante channel and device currently connected are displayed. Unavailable Unregister device sources devices sources appearance appearance Out1: Out1: Concert 01@AVDT- Hall BOB-542 +5db +5db AV-WALL-DT4oB User’s manual v1.3 Page 9 / 16...
  • Page 10: Bluetooth Control

    Speaker disconnect the current device. Search PHANTOM Force disconnection of the Bluetooth devices Speaker Unpair PHANTOM Pause the audio Bluetooth stream. Speaker Pause Paused PHANTOM Pause the audio Bluetooth stream. Speaker Play AV-WALL-DT4oB User’s manual v1.3 Page 10 / 16...
  • Page 11: Bluetooth Device Search & Pairing

    If the audio remote control is available on your remote Bluetooth device, you can play / pause audio the stream via AVS-Monitor or the push button control. See section “Bluetooth” Menu in AVS-Monitor for Bluetooth remote control. AV-WALL-DT4oB User’s manual v1.3 Page 11 / 16...
  • Page 12: Configuration Mode

    Press shortly the button to set the next option: Sources mapping modes. Press the button for 5s to exit the dimmer mode and return to control mode Screen OLED 7 LED 3 AV-WALL-DT4oB User’s manual v1.3 Page 12 / 16...
  • Page 13: Av-Wall-Dt4Ob Control Using Avs-Monitor

    4 AV-WALL-DT4oB control using AVS-Monitor 4.1 “Out” Interface button unmutes when Green or mutes (i.e. when Black) the corresponding input. button links when blue or not when black the 2 consecutive inputs. AV-WALL-DT4oB User’s manual v1.3 Page 13 / 16...
  • Page 14: Bluetooth" Menu

    If the AV-Wall is connected to a Bluetooth audio receiver the menu shown is the following; 4. Disconnect device 4.1. Close the Bluetooth connection with the remote device connected. 5. Stream Control 5.1. Play or pause the audio stream on Bluetooth link. AV-WALL-DT4oB User’s manual v1.3 Page 14 / 16...
  • Page 15: General" Menu

    Save the current memory configuration of the AW WALL DT4O device. 4.2. Reload a previously saved memory configuration of the AW WALL DT4O device. 4.4 “Properties” menu This menu shows information on the selected AV-WALL AV-WALL-DT4oB User’s manual v1.3 Page 15 / 16...
  • Page 16: Gui" Menu

    3. Double click to init fader when ON (Green) enables to set the gain to 0dB when a double click is done the fader 4. Vu meter width defines the thin of the vu-meter AV-WALL-DT4oB User’s manual v1.3 Page 16 / 16...
