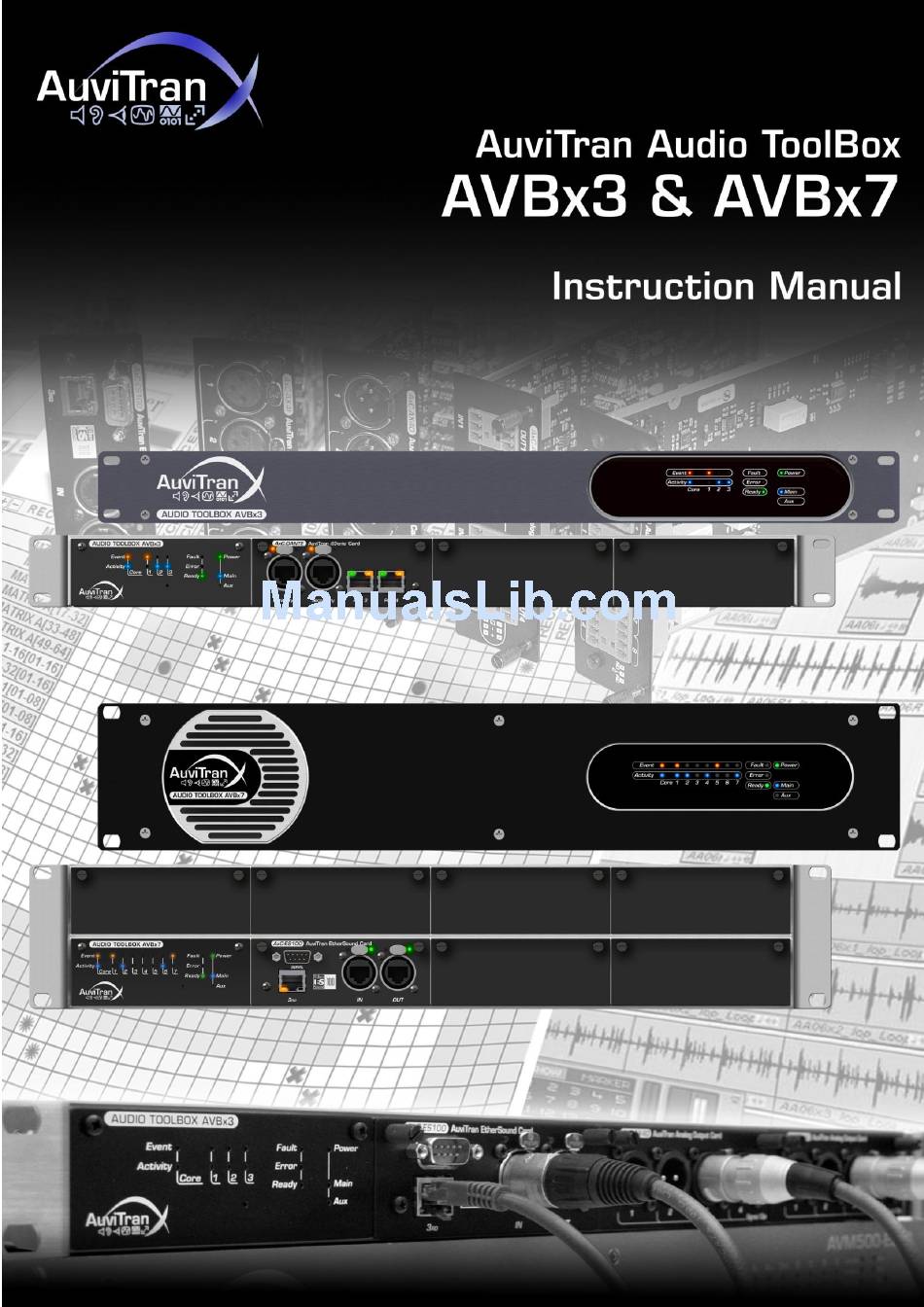

- Page 1 Version 1.2...
-
Page 2: Fcc Information (U.s.a)
If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product IMPORTANT: When connecting this product to accessories and/or another product, use only high quality shielded cables. Cable/s supplied with this product MUST be used. AuviTran Audio ToolBox Instructions Manual... -
Page 3: Precautions
(>5cm) on each side of the rack, and leave space above rack (>1cm). Or it can be better to have appropriate fan kit in the multi-unit rack AuviTran Audio ToolBox Instructions Manual... -
Page 4: Limitation Of Liability
All trademarks listed in this manual are the exclusive property of their respective owners. They are respected “as is” by AuviTran. Any use of these trademarks must receive prior approval of their respective owners. For any question, please contact the trademark’s owner directly. -
Page 5: Table Of Contents
FCC INFORMATION (U.S.A) ......................2 PRECAUTIONS ..........................3 LIMITATION OF LIABILITY ......................4 TRADEMARKS ..........................4 COPYRIGHT ............................ 4 AUVITRAN WEBSITE / MORE INFORMATION ................4 PACKAGE CONTAINS........................4 WELCOME!..........................7 OVERVIEW ..........................7 KEY FEATURES ........................7 AUDIO TOOLBOX RANGE AND OPTIONAL AXC-CARDS ............8 TECHNICAL SPECIFICATIONS .................... - Page 6 Automatic Plug and Play mode ........................18 11.2.2 Advanced Matrix Routing mode ........................18 11.3 Setting matrix mode ............................... 19 11.4 Displayed status ..............................19 11.5 Matrix window ................................ 19 12 FREQUENTLY ASKED QUESTIONS ..................20 13 NOTES ............................21 AuviTran Audio ToolBox Instructions Manual...
-
Page 7: Welcome
NOTE: Toolbox control is allowed if at least one card allowing control is inserted, like EtherSound Card or DANTE card. AuviTran Audio ToolBox is available in installation mode (Display in front and all connectors in the back), and can be configured as stage-box for live applications (Display, Network and Audio connectors in front, Power supply and GPIO on the back). -
Page 8: Audio Toolbox Range And Optional Axc-Cards
Here is the full range of available AuviTran Audio ToolBox: StageBox Installation AVBx3-DANTE/SB AVBx3-DANTE/IS AVBx3-ES100/SB AVBx3-ES100/IS AVBx7-DANTE/SB AVBx7-DANTE/IS AVBx7-ES100/SB AVBx7-ES100/IS Here is a list of available extension cards for AuviTran Audio Toolbox: AxC-DANTE AxC-ES100 AxC-MADI AxC-CN32IO AxC-AT32IO AxC-DS32IO AxC-DX8I AxC-DX8O AxC-AX4M AxC-AX4I... -

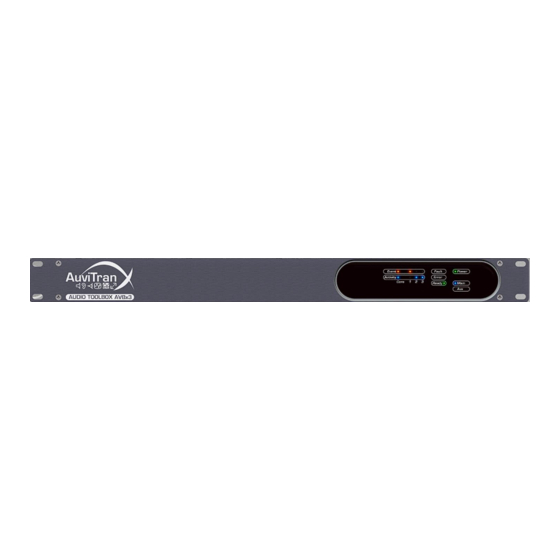

Page 9: Technical Specifications
5 Technical SPECIFICATIONS AVBx3: 3 slots AuviTran Audio ToolBox 1U x 19” rack Size 483 x 253x 44 mm (19” rack, 1 U height) Three slots available for control and audio inputs/outputs Main Power Supply 100-240 VAC – Maximum 50 W (depending of the configuration) -
Page 10: Gpi/O Interface
ON/OFF The user can select between 2 modes (Max Voltage Supported 60 Vdc) ADC Input (8 bits scale) Range 0-12V (12V = ADC Full Scale) Trigger Detection TTL Level (logic “1” = GPI > 2V) AuviTran Audio ToolBox Instructions Manual... -
Page 11: Auxiliary Power Supply (Optional)
The DC Aux input (option) is available on a 1x2 poles lockable Euroblock connector close to the Power Inlet Connector Input = DC AUX input 12V (-5% (11.4V) /+12% (13.4 V)) Maximum Current 4A (depending of the configuration) Input = GND AuviTran Audio ToolBox Instructions Manual... -
Page 12: Slot And Extension Cards
8 SLOT AND EXTENSION CARDS 8.1 CARD Insertion The cards are electrostatic sensitive; make sure you check this before touching or handling them AuviTran Audio ToolBox Instructions Manual... -
Page 13: Card Extraction
8.2 CARD Extraction The cards are electrostatic sensitive; make sure you check this before touching or handling them AuviTran Audio ToolBox Instructions Manual... -
Page 14: Audio Toolbox Control Panel
9 AUDIO TOOLBOX CONTROL PANEL All AuviTran Audio Toolbox have a control panel used to display quick information on the device status without the need to launch any software. Control panel is available both in stage box mode and installation mode. Information provided are the same. -
Page 15: Configuration Through Avs-Monitor
Clock source and status ToolBox name, Identify function, access to rack and/or slot setup Matrix and Power Supply status Note: AuviTran Audio ToolBox AVBx3 has no matrix function available. Internal routing follows the Automatic Plug and Play mode described later. 10.1.1 GPI/O Status This tab presents: ... -
Page 16: Additional Information
UNLOCK: A valid clock is not being input. SYNC: A valid clock is being input, and is synchronized with the selected clock source. NO SYNC: A valid clock is being input, but is not synchronized with the selected clock source. AuviTran Audio ToolBox Instructions Manual... -
Page 17: Setup Tab
Slot setup window Thanks to the Slot setup window, user is able to set, when available, each slot parameters. One tab is available for each slot and is automatically adjusted to the slot card present. AuviTran Audio ToolBox Instructions Manual... -
Page 18: Internal Matrix Routing
This mode enables automatic audio routing sources and receivers between the “First Card” and the other cards plugged into the AuviTran Audio ToolBox. Priority routing depends on the slot number in which cards are plugged (from slower to higher slot). -
Page 19: Setting Matrix Mode
Working mode can be set through Rack setup tab or through matrix window, only when available. Rack setup matrix tab 11.4 Displayed status Current status can be easily identified on the AuviTran Audio Toolbox control page. Automatic Plug and Play vs. Advanced Matrix Routing 11.5 Matrix window ... -
Page 20: Frequently Asked Questions
12 FREQUENTLY ASKED QUESTIONS Is using AVS-Monitor mandatory? AVS-Monitor is used to configure the ToolBox. Once done, if no real time monitoring is necessary, you can use the AuviTran Audio ToolBox without AVS-Monitor. Why do you have to reconfigure my AuviTran Audio ToolBox at each startup? When configured with AVS-Monitor, remember to store your configuration into the device by using the “Save to flash”... -
Page 21: Notes
13 NOTES AuviTran Audio ToolBox Instructions Manual...
