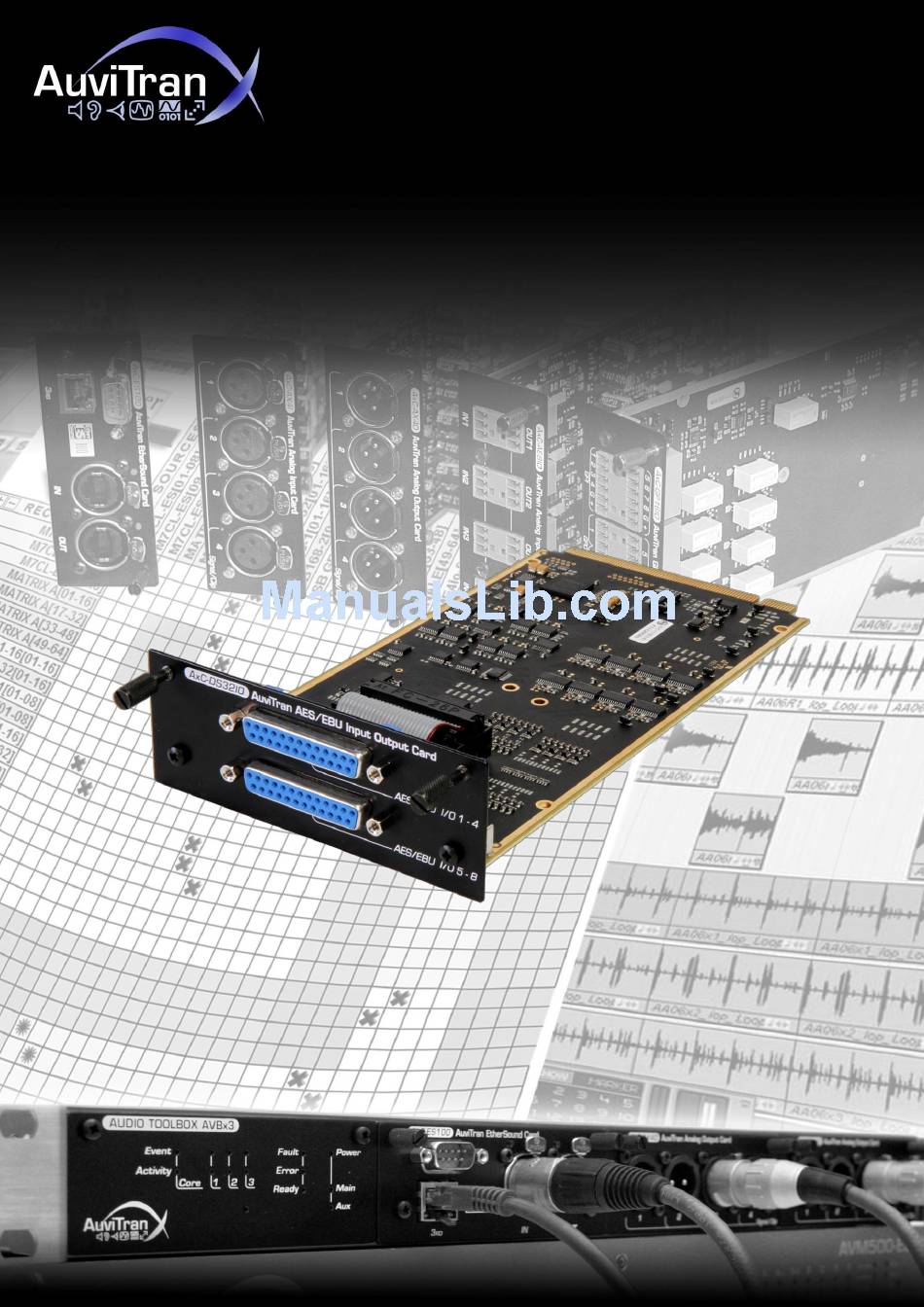

- Page 1 AuviTran Audio ToolBox AxC-DS32IO Instruction Manual Multichannel AES/EBU Interface Card for Audio ToolBox Platform AxC-DS32IO User’s Manual V1.1 Version 1.1...
-
Page 2: Precautions
The disconnect devices of the Audio ToolBox unit are kind (SELV), and must stay inside buildings. the appliance inlet of the auxiliary power supply and the appliance inlet on the rear side of the unit. These must be easily reachable. AxC-DS32IO User’s Manual V1.1... -
Page 3: Limitation Of Liability
All trademarks listed in this manual are the exclusive property of their respective owners. They are respected “as is” by AuviTran. Any use of these trademarks must receive prior approval of their respective owners. For any question, please contact the trademark’s owner directly. -
Page 4: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ....................... 2 LIMITATION OF LIABILITY ..................... 3 TRADEMARKS ....................... 3 COPYRIGHT ........................3 AUVITRAN WEBSITE / MORE INFORMATION .............. 3 PACKAGE CONTAINS ....................3 WELCOME! ......................5 OVERVIEW ......................5 TECHNICAL SPECIFICATIONS ................6 FRONT PANEL / WIRING ..................7 CARD INSERTION / EXTRACTION ................ -
Page 5: Welcome
(four AES/EBU stereo inputs and stereo outputs on each D-Sub) The AxC-DS32IO offers high end audio professional feature. All inputs can be individually used with on board high precision “SRC” (Sample Rate Converter) for solving multi sampling rate input frequencies and synchronisation issues. -
Page 6: Technical Specifications
3 Technical Specifications General Size 200 mm x 100 mm x 40 mm – Format AuviTran Audio ToolBox platform cards Power Supply +12V / +3.3V Through AuviTran Audio ToolBox backplane Storage: Temp / Humidity - 5°C to 70°C / 0% to 95% (non-condensing) Operating: Temp / Humidity 0 °C to 50°C / 5% to 90% (non-condensing) -
Page 7: Front Panel / Wiring
4 FRONT PANEL / Wiring AxC-DS32IO front panel with 2 x DB25 FEMALE AES/EBU WIRING (YAMAHA Compatible) DB25 FEMALE FRONT SIDE or DB25 MALE SOLDER SIDE ( for CABLE ) + = hot pin - = cold pin G = Ground (Gnd) -
Page 8: Card Insertion / Extraction
5 CARD Insertion / Extraction Please refer to AuviTran Audio Toolbox AVBx3 or AVBx7 rack user’s manual in order to know how to insert/extract your card properly. AxC-DS32IO User’s Manual V1.1... -
Page 9: Software Remote Control
Device control AuviTran’s AVS ESMonitor software allows you to remote control your Audio Toolbox device, and thus your AxC-DS32IO. For general AVBx3 or AVBx7 rack remote control features, please refer to AuviTran Audio Toolbox AVBx3 or AVBx7 rack user’s manual. -
Page 10: Device Setup
Device setup (SRC on/off) Advanced parameters for AxC-DS32IO device can be defined using dedicated setup slot window (: AxC-DS32IO setup window SRC Setup can be set ON (Checked) /OFF (Unchecked) for each stereo AES input. In sample window above, only AES Input 11/12 and AES Input 13/14 has SRC set to ON. -
Page 11: Frequently Asked Question
Slider control layout Slider control is designed to be intuitively controlled with a mouse. Place mouse cursor over knob (red zone), left click and while holding mouse clicked, slide to desired value and released left click. AxC-DS32IO User’s Manual V1.1...
