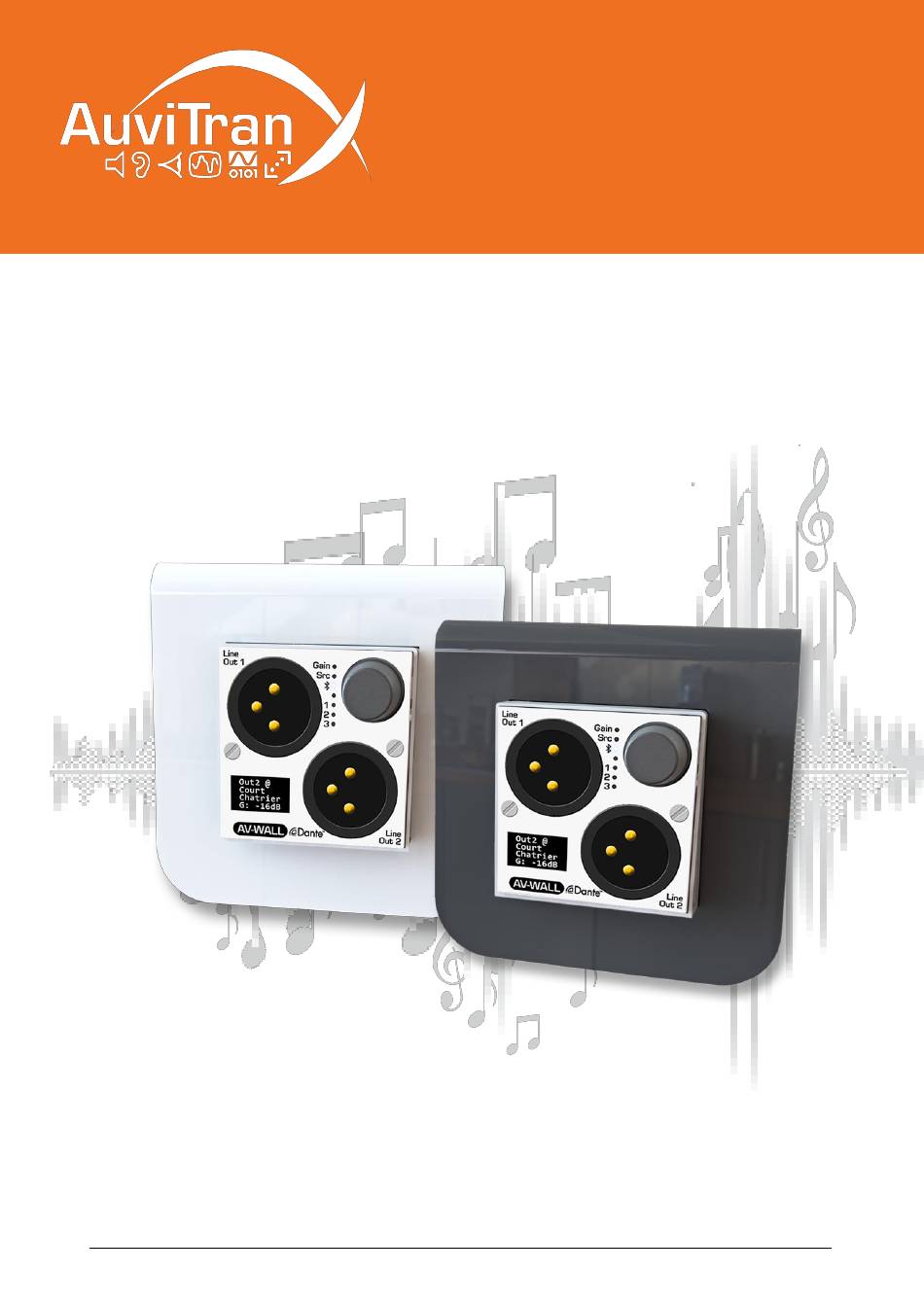

- Page 1 AV-WALL-DT4oB User’s manual www.auvitran.com AV-WALL-DT4oB User’s manual v1.1 Page 1 / 26...
-
Page 2: Table Of Contents
AV-WALL-DT4oB Quick Start ................5 Power to Start-up ..................5 Connect the AV-WALL-DT4oB to an IP/Dante network ........5 AV-WALL-DT4oB Dante settings ..............6 Access to AV-WALL-DT4oB User Interface via AVSMonitor on Windows OS ..7 AV-WALL-DT4oB setting via rotative push-button functions ........9 Control mode ....................9... - Page 3 5.2.4 Excess of authorized labels ..............26 AV-WALL-DT4oB User’s manual v1.1 Page 3 / 26...
-
Page 4: Legacy
1. Legacy 1.1 LIMITATION OF LIABILITY In no case and in no way, the provider of this software (AuviTran, the distributor or reseller, or any other party acting as provider) shall be liable and sued to court for damage, either direct or indirect, caused to the user of the software and which would result from an improper installation or misuse of the software. -
Page 5: Av-Wall-Dt4Ob Quick Start
Controller. AV-WALL-DT4oB serial number 145 has Dante name “AV-WALL-145” as factory preset The AV-WALL-DT4oB setting can be done locally via the front face rotative button of AV-WALL-DT4oB AVSMonitor (Software downloadable www.auvitran.com) AV-WALL-DT4oB User’s manual v1.1 Page 5 / 26... -
Page 6: Av-Wall-Dt4Ob Dante Settings
2.3 AV-WALL-DT4oB Dante settings The AV-WALL-DT4oB Dante settings are done via the standard Audinate Dante Controller. Download Dante Controller on the Audinate web site at the following web address https://www.audinate.com/products/software/dante-controller Install Dante Controller by double clicking on the download file. -
Page 7: Access To Av-Wall-Dt4Ob User Interface Via Avsmonitor On Windows Os
2.4 Access to AV-WALL-DT4oB User Interface via AVSMonitor on Windows The AV-WALL-DT4oB User Interface can be accessed using AVSMonitor on Windows OS: 1. Download AuviTran AVS-Monitor free software for windows 7/8/10 available at the following web address https://www.auvitran.com/software 2. Install AVS-Monitor by double clicking on the download file. - Page 8 If your device doesn’t appear, your network configuration is probably not good. Return to AVS-Control-Panel using “Edit/Control panel” menu and reselect another network or check if your PC is in the same network that the AV-WALL-DT4oB AV-WALL-DT4oB User’s manual v1.1 Page 8 / 26...
-
Page 9: Av-Wall-Dt4Ob Setting Via Rotative Push-Button Functions
3 AV-WALL-DT4oB setting via rotative push-button functions The AV-WALL-DT4oB DT4oB has 2 modes of operation sequences: The “Control” mode The “Configuration” mode Control Mode Long press on Long press on No action during button (5s) button (5s) Configuration Mode 3.1 Control mode The Control mode is activated by pressing the push-button briefly. -
Page 10: Change The Gain
3.1.1 Change the gain Screen Stream Action on Action changed Actives the button Out 1: Gain On Out1 Turn left Decrease the gain Outdoor- (XLR) Stage3 Turn right Increase the gain 1 blinking -3db Push Go to “Out1” source control Out 2: Gain On Out2... -
Page 11: Bluetooth Stream Control
3.1.3 Bluetooth Stream Control If an output Bluetooth device is paired (Bluetooth speakers, earphones) the user can set the pairing status by turning left or right the button. Action on the Action button Turn left Select the next Bluetooth menu action Turn right Select the previous Dante device Push... -
Page 12: Bluetooth Device Search & Pairing
Bluetooth handle errors: ERROR PA: Device fails to pair, probably the device is already used by another equipment or is no more connected. ERROR OP: Device fails to open; the device might not support audio Bluetooth playback. If these errors occur, it is strongly recommended to reset the Bluetooth module and all the connections. -
Page 13: Bluetooth Reset & Unpair
The default status of the Bluetooth after pairing is pause. If pairing is successful, user can set Play or Pause action on the Bluetooth stream Screen Correctly Paired Device PAUSE PHANTOM Bluetooth status (play/pause) Speaker setting Play PLAYING PHANTOM Search for Bluetooth device to be paired Speaker Pause If no device is set, or error occur during pairing the user can continue and go to the passive... -
Page 14: Configuration Mode
3.2 Configuration mode The Configuration mode is activated by pressing the push-button for at least 5s. When in configuration mode, the user can set these parameters in this order: Screen brightness LEDs brightness Output sources selection mapping modes Gain locking Note: Each parameter access can be disactivated. -
Page 15: Screen Brightness
3.2.1 Screen brightness Brightness change are directly visible on the screen. Adjust range goes from 0 to 15. Turn left to decrease the screen’s brightness Turn right to increase the screen’s brightness. Press shortly the button to set the next option: LEDs brightness. Press the button for 5s to exit the configuration mode and return to control mode Screen OLED 7... -
Page 16: Stereo Mode
3.2.3.1 Stereo mode Screen LED Actives Stream Action on Action changed the button Out 1+2: Led SRC On Out1 Turn left Go to the next Dante device Outdoor- (XLR) Turn right Go to the previous Dante device Led 1+2 blink- Stage3 Push Go to “Out2”... -
Page 17: Gain Lock
3.2.4 Gain lock Once the gain lock is set the user cannot change the output gain on the device, however it is still possible to do it on AVS Monitor. Turn right to unlock the gain control Turn left to lock the gain control Screen Action on the Action button... - Page 18 Screen Stream Action on Action changed Actives the button MIC1 Source Turn left Go to the next Dante device outputs On + Turn right Go to the previous Dante device (XLR + 1 blinking Push Go to headphone gain control mini jack) In this mode labels size are automatically set as show below: Labels appearance...
-
Page 19: Av-Wall-Dt4Ob Control Using Avs-Monitor
4 AV-WALL-DT4oB control using AVS-Monitor 4.1 “General” menu This menu enables to change the behavior of the interface 1. Analog gain unit defines the unit of gain: 1.1. Can be select in dB or dBu 2. Link Behavior defines which parameter are linked when the link button is set in the” In”... -
Page 20: Properties" Menu
4.2 “Properties” menu This menu shows information on the selected AV-WALL AV-WALL-DT4oB User’s manual v1.1 Page 20 / 26... -
Page 21: Gui" Menu
4.3 “GUI” menu This menu gives access to GUI parameters for the AV-WALL 1. QOS when (Green) displays information network interface speed/interactivity: 2. Double click to init fader when ON (Green) enables to set the gain to 0dB when a double click is done the fader 3. -
Page 22: Out" Interface
4.4 “Out” Interface button unmutes when Green or mutes (i.e. when Black) the corresponding input button inverses when Blue or not when black the phase of the corresponding input button links when blue or not when black the 2 consecutive inputs The following AVWALL settings can be changed via the AVS interface: •... -
Page 23: Load Labels & Dante Patches On Av-Walls Devices
5 Load labels & Dante patches on AV-WALLs devices The labels of yours AV-WALLs must be loaded via a command line program: avwall_label_loader.exe 5.1 Launch labels transfers & files syntax To load labels the user must input as arguments the files which contains the labels: avwall_label_loader.exe file_a.ini file_b.ini …... -
Page 24: Typical Troubleshooting
(32 for each of them) • Unfound devices • Unauthorized devices • Excess of authorized labels (64 for each devices) If you experience other issues with this software, please report this at: support@auvitran.com AV-WALL-DT4oB User’s manual v1.1 Page 24 / 26... -
Page 25: Incorrect Syntax
5.2.1 Incorrect syntax Labels, channels and Dante devices names can’t be longer than 32 characters, the excess of characters are ignored. 5.2.2 Unfound devices This might happen if your PC is not on the same local network as your equipment, names does not match any connected devices. -
Page 26: Unauthorized Devices
5.2.3 Unauthorized devices This case happens when user attempting to write on a device which is not recognized as a AVWALL-DT4O device. 5.2.4 Excess of authorized labels This case happens when labels numbers is greater than 64. Further labels are ignored. AV-WALL-DT4oB User’s manual v1.1 Page 26 / 26...
