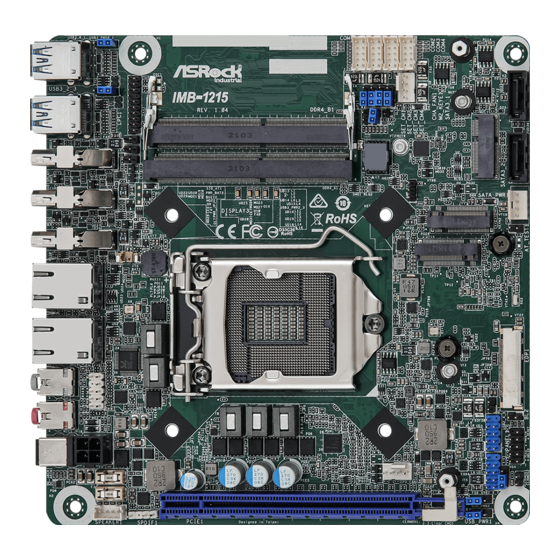

ASROCK IMB-1215 Quick Manual

*15G06M072000AK*
P/ N: 15G06M072000AK V1.0

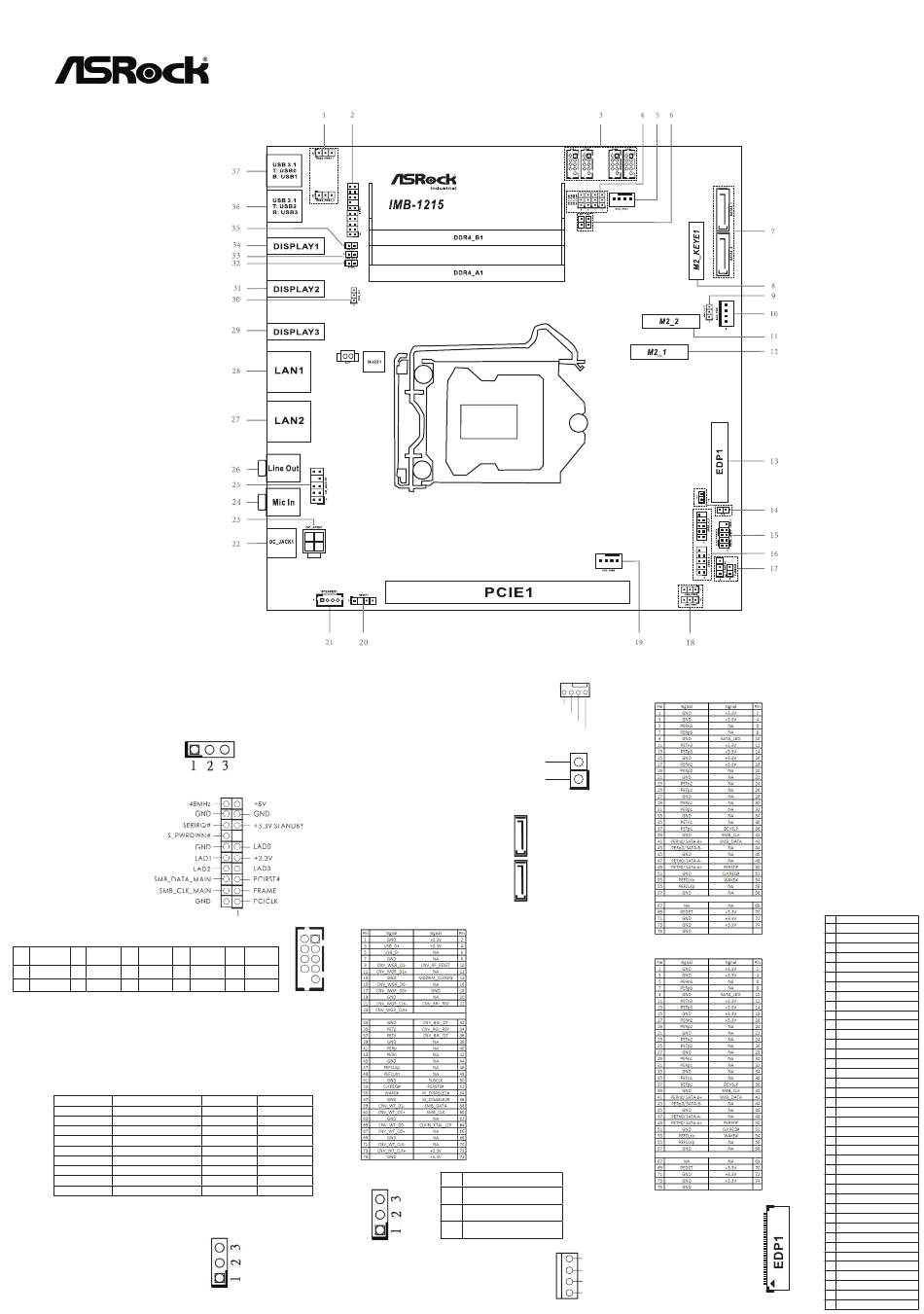

IMB-1215
1 : USB Power Setting Jumpers
USB3_PWR0_1 (For USB3_0_1)
USB3_PWR2_3 (For USB3_2_3)
1-2: +5V
2-3: +5VSB
2 : LPC Header
3 : COM Port Headers (COM1, 2, 3, 4)
Signal Signal Signal
PIN PIN PIN PIN
Name Name Name
1 DDCD# 3 TTXD 5 GND 7
2 RRXD 4 DDTR# 6 DDSR# 8
* This motherboard supports RS232/422/485 on COM3 port.
Please refer to below table for the pin definition. In addition, COM3
port (RS232/422/485) can be adjusted in BIOS setup utility >
Advanced Screen > Super IO Configuration. You may refer to our
user manual for details.
COM3 Port Pin Definition
PIN RS232
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 PWR
4 : COM Port PWR Setting Jumpers
(SET_CM1, 2, 3, 4)
1-2: +5V
2-3: +12V
Jumpers and Headers Setting Guide
5 : Chassis FAN Connector
(+12V)
6 : Chassis Intrusion Headers
CI1 :
Close: Active Case Open
Open: Normal
Cl2 :
Close: Normal
Open: Active Case Open
7 : SATA3 Connectors
(SATA3_1, SATA3_2)
8 : M.2 Socket (Key-E) (With CNVi)
2 1
Signal Signal
PIN
Name Name
RRTS# 9 PWR
CCTS#
RS422 RS485
TX- RTX-
RX+ N/A
TX+ RTX+
RX- N/A
GND GND
N/A N/A
9 : AMP_CTL1
N/A N/A
N/A N/A
PWR PWR
10 : SATA Power Output Connector
FAN_SPEED_CONTROL
CHA_FAN_SPEED
+12V
GND
GND
Signal
1
SATA3_1
SATA3_2
PIN Signal Name
1 GPIO_VOL_DW
2 GND
3 GPIO_VOL_UP
+12V
GND
GND
+5V
1
11 : M.2 Socket (Key-M) (M2_2)
12 : M.2 Socket (Key-M) (M2_1)
13 : eDP Connector
40
1
PIN Signal Name
1 NA
2 GND
3 eDP_TX#3_CON
4 eDP_TX3_CON
5 GND
6 eDP_TX#2_CON
7 eDP_TX2_CON
8 GND
9 eDP_TX#1_CON
10 eDP_TX1_CON
11 GND
12 eDP_TX#0_CON
13 eDP_TX0_CON
14 GND
15 eDP_AUX_CON
16 eDP_AUX#_CON
17 GND
18 LCD_VCC
19 LCD_VCC
20 LCD_VCC
21 LCD_VCC
22 NA
23 GND
24 GND
25 GND
26 GND
27 eDP_HPD_CON
28 GND
29 GND
30 GND
31 GND
32 CON_LBKLT_EN
33 CON_LBKLT_CTL
34 SMB_DATA
35 SMB_CLK
36 LCD_BLT_VCC
37 LCD_BLT_VCC
38 LCD_BLT_VCC
39 LCD_BLT_VCC
40 NA
