Guide to SATA Hard Disks
Installation and RAID Configuration
1.
Guide to SATA Hard Disks Installation ..............................2
1.1
Serial ATA (SATA) Hard Disks Installation ................2
2.
Guide to RAID Configurations ...........................................3
2.1
Introduction of RAID .................................................3
2.2 RAID Configuration Precautions ..............................6
2.3 Installing Windows
2.4 Configuring a RAID array .........................................8
3.
4.
Installing Windows
®
10 64-bit With RAID Functions .7
®
..................................................................14
®
on a HDD larger than 2TB in
..................................................................15
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ASROCK IMB-1224P

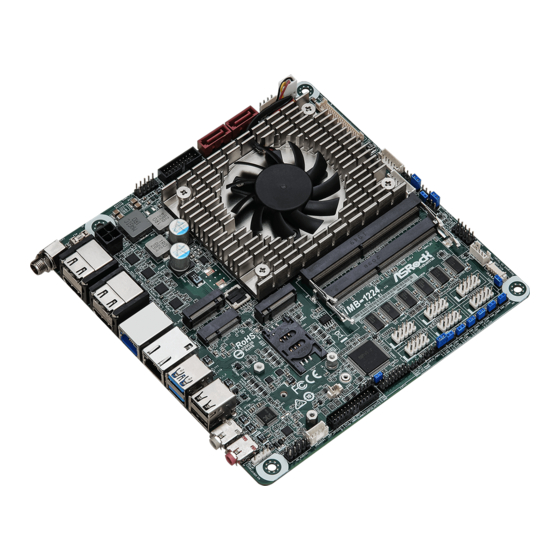

Summary of Contents for ASROCK IMB-1224P
-
Page 1: Table Of Contents
Guide to SATA Hard Disks Installation and RAID Configuration Guide to SATA Hard Disks Installation ......2 Serial ATA (SATA) Hard Disks Installation ....2 Guide to RAID Configurations ...........3 Introduction of RAID ..........3 2.2 RAID Configuration Precautions ......6 ® 2.3 Installing Windows 10 64-bit With RAID Functions .7 2.4 Configuring a RAID array .........8 2.4.1 Configuring a RAID array Using UEFI Setup Utility .. -
Page 2: Guide To Sata Hard Disks Installation
Guide to SATA Hard Disks Installation 1.1 Serial ATA (SATA) Hard Disks Installation Intel chipset supports Serial ATA (SATA) hard disks with RAID functions, including RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage. Please read the RAID configurations in this guide carefully according to the Intel southbridge chipset that your motherboard adopts. You may install SATA hard disks on this motherboard for internal storage devices. This section will guide you how to create RAID on SATA ports. -
Page 3: Guide To Raid Configurations
2. Guide to RAID Configurations 2.1 Introduction of RAID This motherboard adopts Intel southbridge chipset that inte- grates RAID controller supporting RAID 0 / RAID 1/ Intel Rapid Storage / RAID 10 / RAID 5 function with four independent Se- rial ATA (SATA) channels. This section will introduce the basic knowledge of RAID, and the guide to configure RAID 0 / RAID 1/ Intel Rapid Storage / RAID 10 / RAID 5 settings. RAID The term “RAID” stands for “Redundant Array of Independent Disks”, which is a method combining two or more hard disk drives into one logical unit. For optimal performance, please install identical drives of the same model and capacity when creating a RAID set. RAID 0 (Data Striping) RAID 0 is called data striping that optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks. It will improve data access and storage since it will double the data transfer rate of a single disk alone while the two hard disks perform the same work as a single drive but at a sustained data transfer rate. WARNING!! Although RAID 0 function can improve the access performance, it does not provide any fault tolerance. Hot-Plug any HDDs of the RAID 0 Disk will cause data damage or data loss. - Page 4 Intel Rapid Storage The Intel Rapid Storage technology supported allows you to create a RAID 0 and RAID 1 set using only two identical hard disk drives. The Intel Rapid Storage technology creates two partitions on each hard disk drive to create a virtual RAID 0 and RAID 1 sets. This technology also allows you to change the hard disk drive partition size without losing any data. RAID 10 RAID 10 is a striped configuration with RAID 1 segments whose segments are RAID 1 arrays. This configuration has the same fault tolerance as RAID 1, and has the same overhead for fault-tolerance as mirroring alone. RAID 10 achieves high input / output rates by striping RAID 1 segments. In some instances, a RAID 10 configuration can sustain multiple simul- taneous drive failure. A minimum of four hard disk drives is required for this setup.
- Page 5 RAID 5 RAID 5 stripes both data and parity information across three or more hard disk drives. Among the advantages of RAID 5 confi- guration include better HDD performance, fault tolerance, and higher storage capacity. The RAID 5 configuration is best sui- ted for transaction processing, relational database applications, enterprise resource planning, and other business systems. Use a minimum of three identical hard disk drives for this setup.
-
Page 6: Raid Configuration Precautions
Please use two new drives if you are creating a RAID 0 (striping) array for performance. It is recommended to use two SATA drives of the same size. If you use two drives of different sizes, the smaller capacity hard disk will be the base storage size for each drive. For example, if one hard disk has an 80GB storage capa- city and the other hard disk has 60GB, the maximum storage capacity for the 80GB-drive becomes 60GB, and the total storage capacity for this RAID 0 set is 120GB. You may use two new drives, or use an existing drive and a new drive to create a RAID 1 (mirroring) array for data protection (the new drive must be of the same size or larger than the existing drive). If you use two drives of different sizes, the smaller capacity hard disk will be the base storage size. For example, if one hard disk has an 80GB storage capacity and the other hard disk has 60GB, the maximum storage capacity for the RAID 1 set is 60GB. Please verify the status of your hard disks before you set up your new RAID array. WARNING!! Please backup your data first before you create RAID functions. In the process you create RAID, the system will ask if you want to “Clear Disk Data” or not. It is recommended to select “Yes”, and then your future data building will operate under a clean environment. Intel Rapid Storage Technology for PCIe Storage Use cases Prerequisite: * The PCIe Storage device must be attached to remapable PCIe slot or PCIe M.2 connector. * The PCIe Storage device must be AHCI-controller based. * System must be in RAID mode. - Page 7 Boot your system, and press <F2> key to enter BIOS setup utility. Go to Advanced Storage Configuration and set SATA Mode Selection to [RAID]. Press <F10> to save the configuration changes and exit setup. STEP 2: Use ASRock Easy RAID Installer Easy RAID Installer can copy the RAID driver from a support CD to your USB storage device with just one simple click in UEFI setup. Please note that this feature is not available for all models.
-
Page 8: Configuring A Raid Array
2.4 Configuring a RAID array You can configure a RAID array using either UEFI Setup ® Utility or Intel RAID BIOS setup utility, depending on the HDD capacity and the OS you are installing. Please refer to the table below to choose the corresponding RAID Utility. Windows 10 Under 2.2 Under 2.2 Over 2.2 TB Over 2.2 TB Capacity Ultra Fast Enabled Enabled Disabled Disabled Boot UEFI SETUP UTILITY\ Option ROM Boot\CSM [Launch Setting Storage OpROM policy] = [UEFI only] ®... -
Page 9: Configuring A Raid Array Using Uefi Setup Utility
2.4.1 Configuring a RAID array Using UEFI Setup Utility STEP 1: Enter the UEFI Setup Utility by pressing <F2> or <Del> right after you power on the computer. STEP 2: Go to Advanced Storage Configuration and set SATA Mode Selection to [RAID]. Then Enter VMD setup menu. STEP 3: Enable these two options: Enable VMD controller and Map this Root Port under VMD. Then press <F10> to save the configuration changes and exit setup. - Page 10 STEP 4: Enter Intel(R) Rapid Storage Technology in Advanced page. STEP 5: Select the option Create RAID Volume and press <Enter>.
- Page 11 STEP 6: Key-in a a volume name and press <Enter>, or simply press <Enter> to accept the default name. Select your desired RAID Level and press <Enter>. STEP 7: Select the hard drives to be included in the RAID array and select a stripe size. Select Create Volume and press <Enter>.
- Page 12 STEP 8: The RAID volume you just create is as following. If you want to delete a RAID volume, select the option Delete on the RAID volume info page and press <Enter>.
- Page 13 Click Yes to delete the RAID volume. *Please note that the UEFI screenshots shown in this installation guide are for reference only. The actual screen may differ by model on the RAID volume info page and press <Enter>.
-
Page 14: Installing Windows ® On A Hdd Under 2Tb In Raid Mode
® Installing Windows on a HDD under 2TB in RAID mode After the UEFI and RAID BIOS setup you may start ® 10 64-bit OS as usual. installing Windows... -
Page 15: Raid Mode
Windows 10 64-bit. After the UEFI and RAID BIOS setup, please follow the steps below. ® STEP 1: Copy Intel RAID drivers into a USB flash disk You can download the drivers from ASRock's website and unzip the files into a USB flash disk or copy the files from ASRock's motherboard support CD. (Please copy the files under the following directory: 32 bit: ..\i386\Win7_Intel.. 64-bit: ..\AMD64\Win7-64_Intel.. ® STEP 2: Install Windows 10 64-bit OS Press <F11> to launch boot menu at system POST and... - Page 16 ® Start Windows Installation. When you see “Where do you want to install Windows?” page, please click “Load Driver”. Plug the USB flash disk into your USB port; select “Browse” to find the RAID driver. Then choose the directory you have copied in the first step. Please keep the USB flash disk installed until the system's first reboot. Continue to install the OS by following the instructions.
- Page 17 ® If you install Windows 10 64-bit on a large hard disk (ex. Disk volume > ® 2TB), it may take more time to boot into Windows or install driver/utilities. If you encounter this problem, you will need to follow the instructions below to fix this problem. ® Windows 10 64-bit: A. Please request the hotfix KB2505454 through this link: http://support.microsoft.com/kb/2505454/ ® B. After installing Windows 10 64-bit, install the hotfix kb2505454. (This may take a long time; >30 mins.) C. Reboot your system. (It may take about 5 minutes to reboot.) ® D. Windows will install this hotfix then reboot by itself. E. Please start to install motherboard drivers and utilities.
