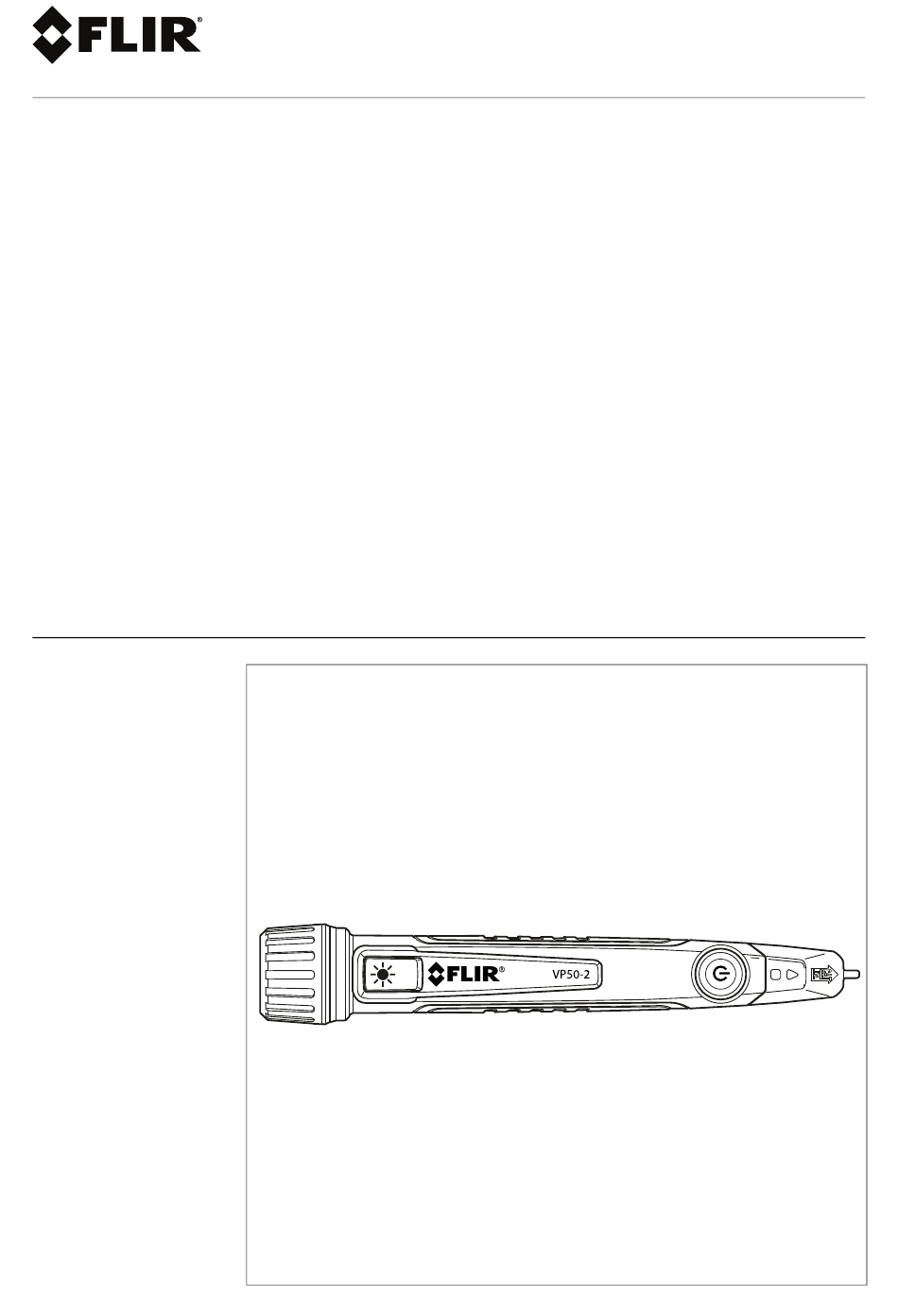

- Page 1 USER MANUAL Non-Contact Voltage Detector + Flashlight VP50–2 (110V regions) and VP52–2 (220V regions)
- Page 3 USER MANUAL Non-Contact Voltage Detector + Flashlight #NAS100038; r. AD/64642/64642; en-US...
-
Page 5: Table Of Contents
Table of contents Advisories ................1 Copyright ..............1 Quality Assurance ............1 Documentation ............1 Disposal of Electronic Waste ......... 1 Introduction................2 Key Features...............3 Safety ................4 Safety Symbols ............5 Descriptions ...............6 Product Description............. 6 Button, Indicator, and Beeper Descriptions....... 6 Operation ................8 Low (normal) and High Sensitivity Modes...... -
Page 7: Advisories
The documentation must not, in whole or part, be copied, photocopied, repro- duced, translated or transmitted to any electronic medium or machine-read- able form without prior consent, in writing, from FLIR Systems. Names and marks appearing on the products herein are either registered trademarks or trademarks of FLIR Systems and/or its subsidiaries. -
Page 8: Introduction
The VP50-2 (110 V regions) has a minimum excitation voltage of 90 V AC (this is its normal, or low sensitivity, mode); The VP52-2 (220 V re- gions) has a minimum excitation voltage of 190 V AC (this is its normal, or low sensitivity, mode). -
Page 9: Key Features
Key Features • Beeper sound • Vibration feedback alarms • Optimized High/Low sensitivity ranges • Multi-color LED alarm indicators • Bright flashlight • Dual LED illuminator at probe tip • ON/OFF button with auto power off (APO) • CAT IV 1000 V safety rated •... -
Page 10: Safety
Safety NOTE • This device will not detect DC voltage. • Before and after each use, verify proper operation by testing on a known ‘live’ circuit (with- in the stated range of this device). • Static electricity can randomly trigger this device, this is normal for a device of this type. •... -
Page 11: Safety Symbols
Safety 4.1 Safety Symbols Read, understand, and follow all safety information, warnings, and cautions before attempting to operate this device. Failure to do so can result in death or serious injury. Risk of electrical shock exists under normal use. Double insulation. #NAS100038;... -
Page 12: Descriptions
Descriptions 5.1 Product Description Figure 5.1 Product Description 1. AC Voltage sensor 2. Tip lighting 3. Alarm indicator 4. Status indicator 5. Power button: ON (short press); OFF (long press); Low/high sensitivity toggle (short press with meter ON) 6. Pocket clip 7. - Page 13 Descriptions Status Indicator When the meter is functioning normally and not in an alarm condition, the status indicator glows solid green (normal, low sensitivity, mode) or solid amber (high sensitivity mode). If the status indicator is flashing amber, please replace the batteries. If the status indicator is flashing red, the meter is malfunctioning, please return the meter for service.
-
Page 14: Operation
2. When ON, the status indicator (4) should be solid green, indicating a prop- er working condition. • If the status indicator is flashing amber, replace the batteries. • If the status indicator is flashing red, the meter is malfunctioning (con- tact FLIR for Service). #NAS100038; r. AD/64642/64642; en-US... -
Page 15: Flashlight
Operation 3. Once powered, short press the power button to toggle the sensitivity modes. The beeper will sound when the sensitivity is changed. See the Low and High Sensitivity Modes section for additional information. WARNING Test on a known live circuit before testing on an uncertain circuit. Varying electrical socket designs and insulation thickness/types can affect voltage detection performance. -
Page 16: Maintenance
Maintenance 7.1 Cleaning and Storage With the meter OFF, clean with a damp cloth and mild detergent, do not use harsh detergents, abrasives or solvents. Use compressed air to clear dust from the flashlight lens. Clean the lens with a commercial lens cleaner if necessary. Ensure that the device is dry before performing tests. -
Page 17: Specifications
VP52-2 excitation voltage in normal, low 190 V AC minimum sensitivity, mode Voltage ranges 90 ~ 1000 V AC (VP50-2) in normal, low sensitivity, mode 190 ~ 1000 V AC (VP52-2) in normal, low sensitivity, mode 24 ~ 1000 V AC in high sensitivity mode... -
Page 18: Customer Support
Customer Support Repair, Calibration, and Technical Support: https://support.flir.com. 9.1 Corporate Headquarters FLIR Systems, Inc. 27700 SW Parkway Avenue Wilsonville, OR 97070, USA #NAS100038; r. AD/64642/64642; en-US... -
Page 19: Three-Year Warranty
Three-Year Warranty This product is protected by FLIR’s 3-Year Limited Warranty. Visit https://support.flir.com/prodreg to read the 3-Year Limited Warranty document. #NAS100038; r. AD/64642/64642; en-US... - Page 20 #NAS100038; r. AD/64642/64642; en-US...
- Page 22 Customer support http://support.flir.com Copyright © 2020, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations.
