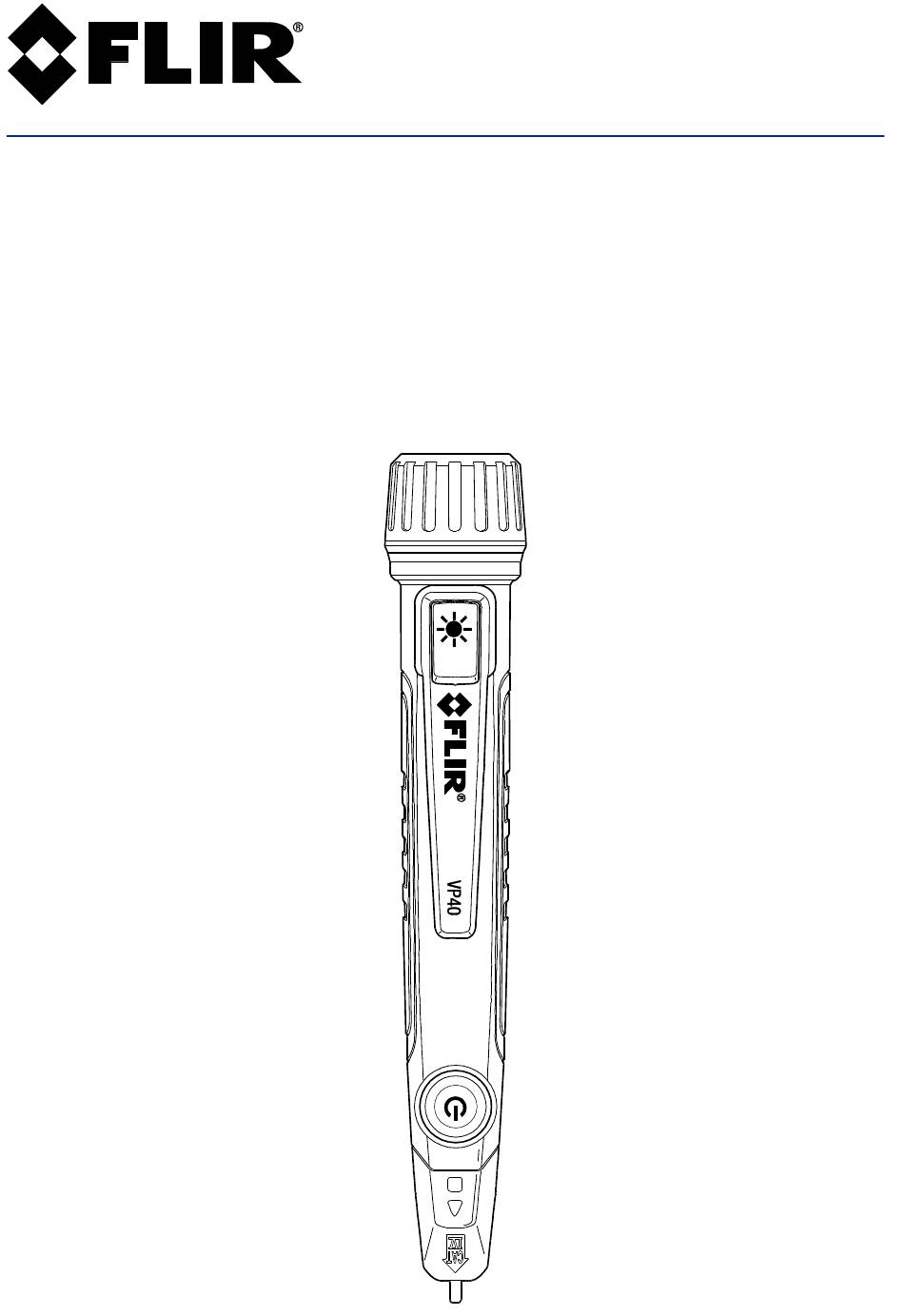

  • Page 1 USER MANUAL FLIR Non-Contact Voltage Detectors + Flashlight Models VP40 and VP42...

  • Page 2: Table Of Contents

    5. Maintenance ......................7 5.1 Cleaning and Storage ........................7 5.2 Battery Replacement ........................7 6. Safety ........................7 7. Specifications ......................9 8. Technical Support ....................10 9. Three-Year Limited Warranty .................. 10 FLIR VP40_VP42 USER MANUAL Document Identifier: VP40_VP42-en-US_AA...

  • Page 3: Advisories

    1. Advisories 1.1 Copyright © 2018, FLIR Systems, Inc. All rights reserved worldwide. No parts of the software including source code may be reproduced, transmitted, transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, optical, manual or otherwise, without the prior written permission of FLIR Systems.

  • Page 4: Introduction

    The VP40 has a minimum excitation voltage of 90V AC; The VP42 has a minimum excitation voltage of 190V AC. Both models have a high sensitivity mode allowing detection down to 24V AC.

  • Page 5: Button And Indicator Descriptions

    The excitation voltage required to activate the meter alarm is much lower in High-sensitivity mode. • In Normal mode, the minimum excitation voltage is 90V AC (VP40)/190V AC (VP42). • In High-sensitivity mode, the minimum excitation voltage is 24V AC.

  • Page 6: Basic Operation

    If the status indicator is flashing amber, replace the batteries. If the status indicator is flashing red, the meter is experiencing a malfunction - contact FLIR for service. 2. Once powered, short press the power button to toggle between High-sensitivity mode and Normal mode.

  • Page 7: Maintenance

    Failure to do so can result in death or serious injury Risk of electrical shock exists under normal use Double insulation CAUTIONS • Do not attempt to repair this device • Do not expose this device to extremes in temperature or humidity FLIR VP40_VP42 USER MANUAL Document Identifier: VP40_VP42-en-US_AA...
  • Page 8  Do not attempt to detect voltages outside the specified range  Always wear protective clothing and eye-ware  Do not use this device for purposes that have not been outlined in the user documentation FLIR VP40_VP42 USER MANUAL Document Identifier: VP40_VP42-en-US_AA...

  • Page 9: Specifications

    FLIR VP42 excitation voltage 190 V AC minimum Voltage ranges 90 ~ 1000 V AC (FLIR VP40) 190 ~ 1000 V AC (FLIR VP42) 24 ~ 1000 V AC in high sensitivity mode (FLIR VP40 and FLIR VP42) Detection distance 0 ~ 0.4”...

  • Page 10: Technical Support

    +1 855-499-3662 option 3 (toll-free) 9. Three-Year Limited Warranty This product is protected by FLIR’s 3-Year Limited Warranty. Visit www.flir.com/testwarranty to read the 3-Year Limited Warranty document. Register your product at the website to receive a free 1-year warranty extension.
  • Page 11 Technical Support Website http://support.flir.com Technical Support Email TMSupport@flir.com Service and Repair Email Repair@flir.com Customer Support Telephone +1 855-499-3662 option 3 (toll free) Publication Identification No.: VP40_VP42-en-US Release Version: Release Date: August 2018 Language: en-US FLIR VP40_VP42 USER MANUAL Document Identifier: VP40_VP42-en-US_AA...
