Programming Menu System

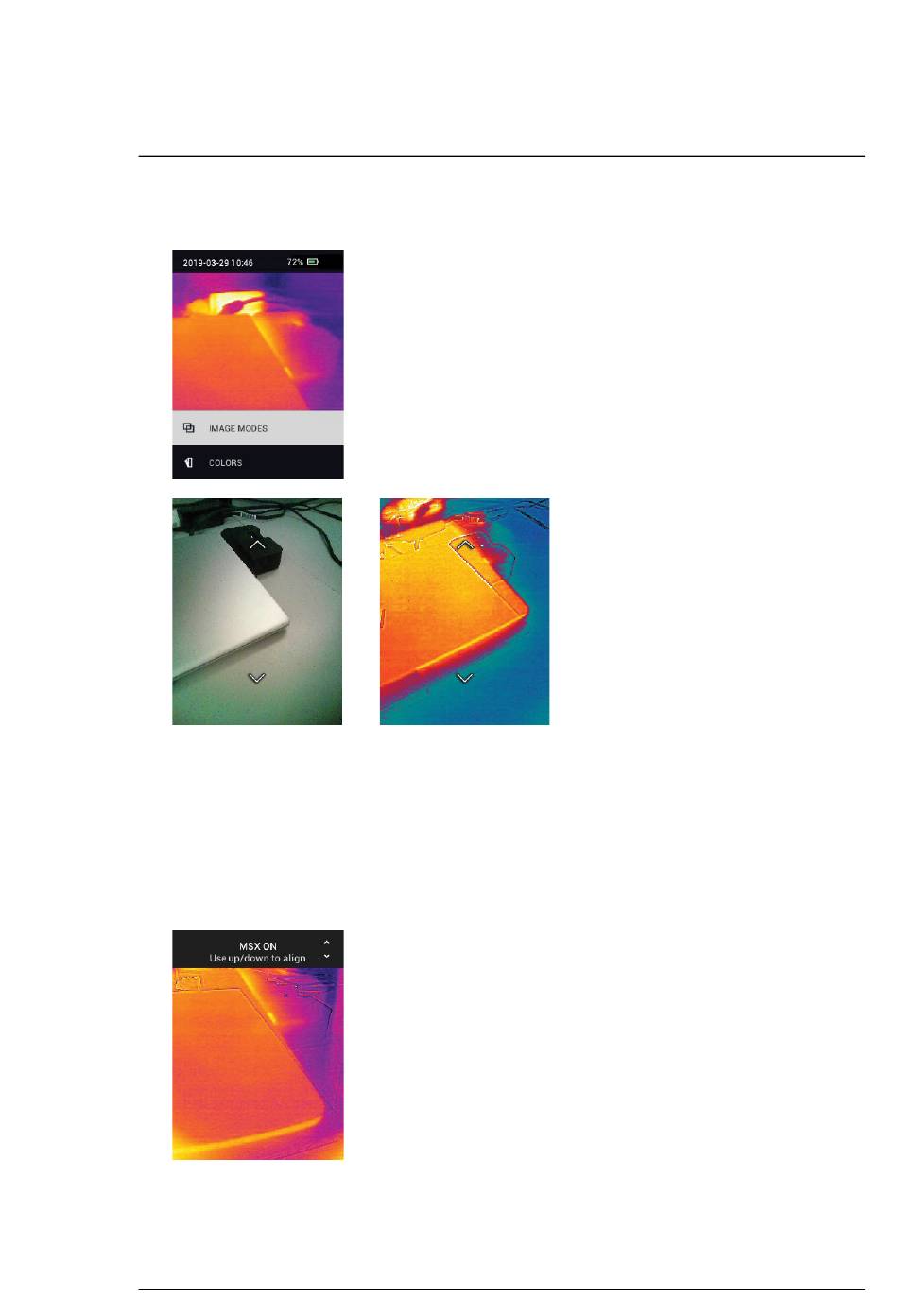

1. Image Modes: Press MENU at IMAGE MODES and use the arrow buttons
to select VISIBLE IMAGE or THERMAL PLUS VISIBLE IMAGE (MSX®).
2. MSX® Alignment: Adjust the alignment (so that the thermal image and the
visible image line up accurately) as follows: While viewing the THERMAL
PLUS VISIBLE IMAGE screen in the menu, press MENU to access the
MSX® adjustment screen and then use the arrow buttons to adjust the
alignment. Press MENU to confirm. Note that you can also adjust the
alignment directly in the normal operating mode using the arrow buttons
while viewing a Thermal Plus Visible image.
