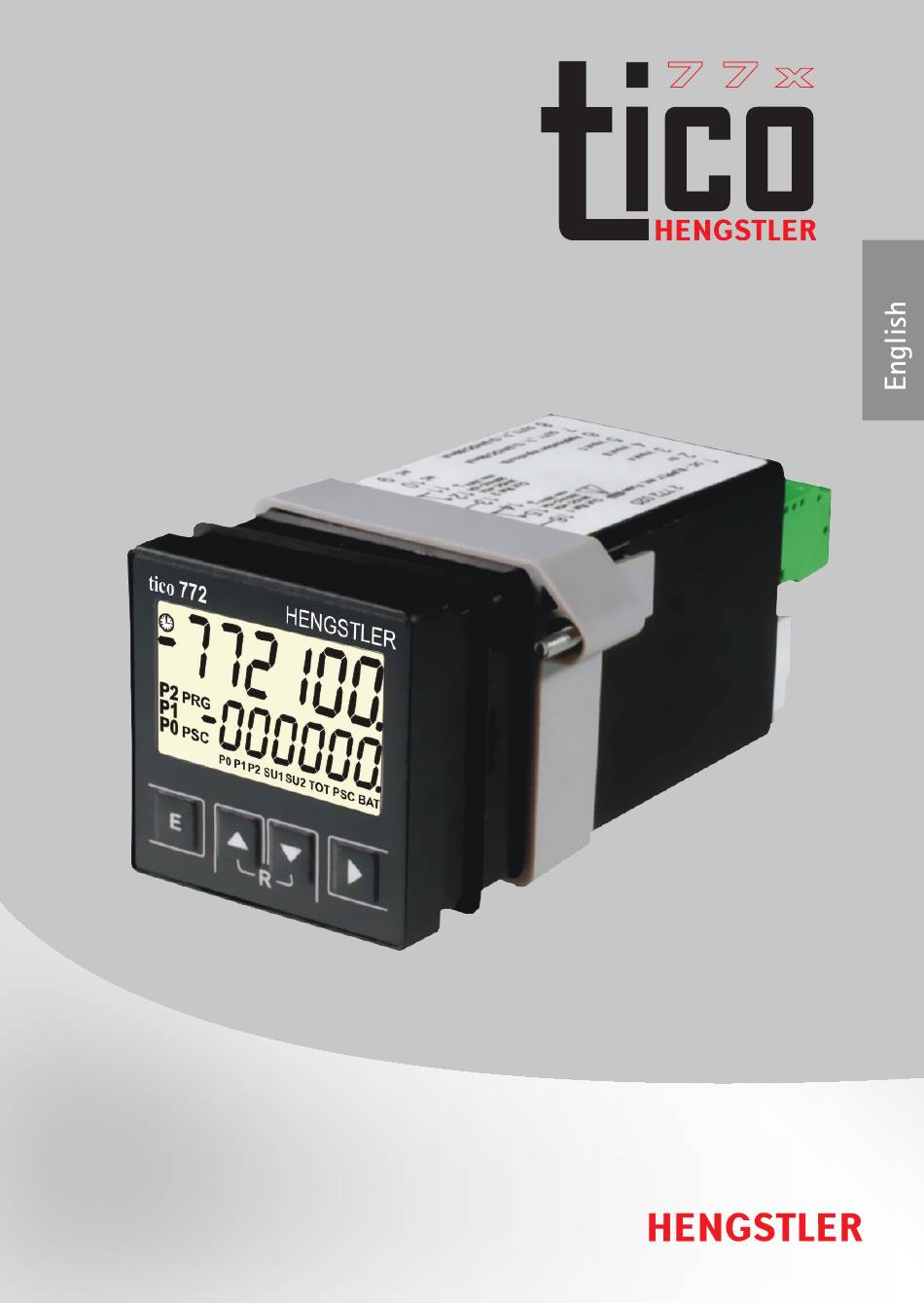

User Manual
bidirectional
Multifunctional-Counter
Part-No. 2 772 083 englisch; 05/2011
Original language German
English translated from German
