Rockwell Automation Allen-Bradley 2198-H2DCK Installation Instructions

Hiperface-to-dsl feedback converter kit

Advertisement

Quick Links

Installation Instructions
Original Instructions
Hiperface-to-DSL Feedback Converter Kit
Catalog Number 2198-H2DCK
Summary of Changes
Added EAC logo to back cover.
About the Feedback Converter Kit
This kit is designed for use with Allen-Bradley® 2090-Series motor feedback cables and provides
wire terminations for 10 Hiperface encoder signals. The Hiperface encoder signals are converted
into compatible digital-servo-link (DSL) feedback signals. You must wire the 10-pin converter
kit connector and assemble the connector housing with the cable shield and cable jacket properly
positioned.
Prepare the Cables
To prepare your existing Bulletin 2090 cables for use with the feedback converter kit, some
preparation is necessary so that the cable shield, conductor lengths, and strip lengths are correct.
Make sure your feedback cable preparation follows these guidelines:
• Trim the shield flush so that no strands can cause a short to adjacent terminals.
• Measure the conductor lengths so they are long enough to provide a service loop.
• Remove just enough insulation from each conductor to provide the proper strip length.

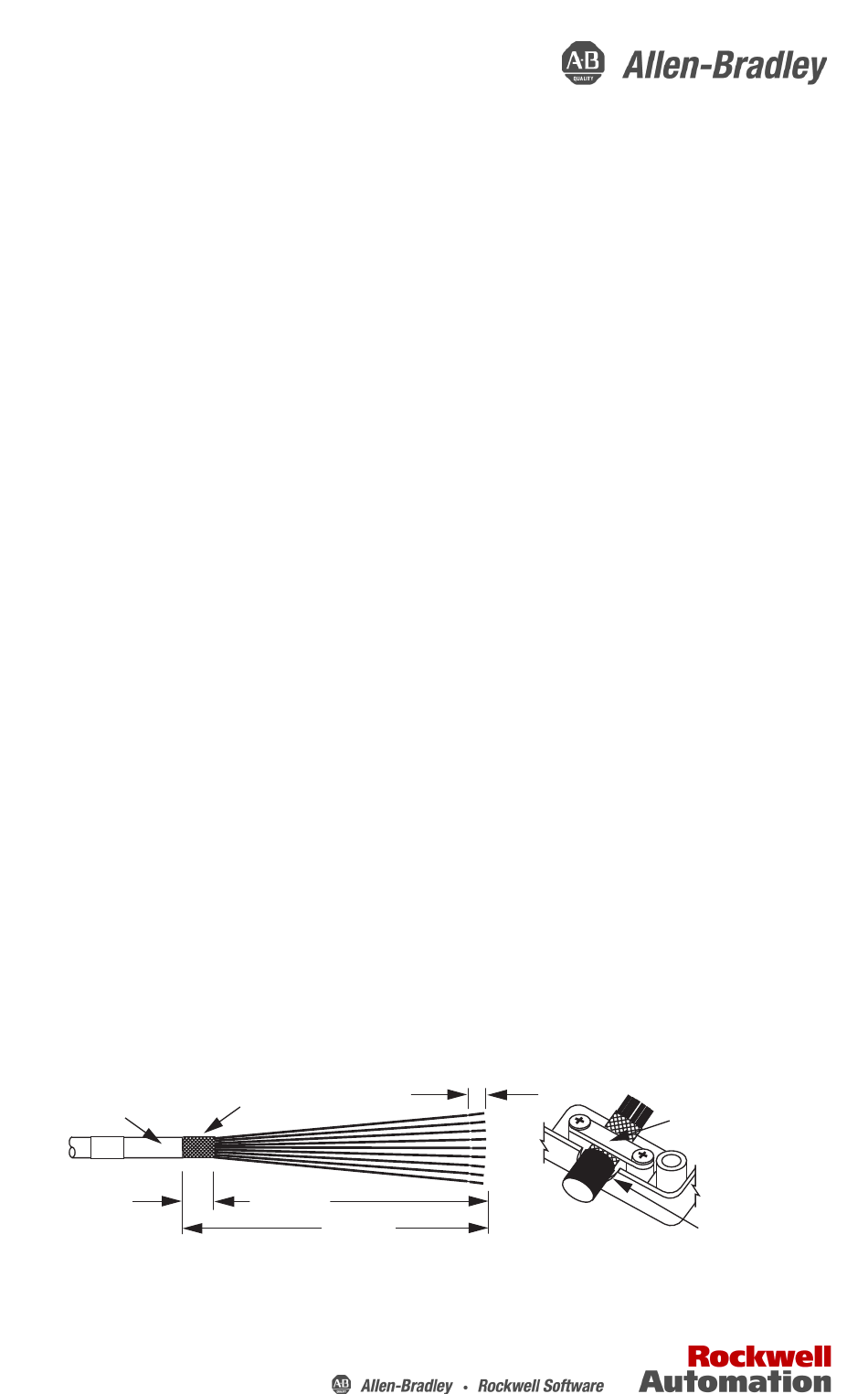

Feedback Cable
Cable Jacket
12.0 (0.5)
Cable Shield
5.0 (0.2)
103 (4.0)
115 (4.5)
Shield Clamp
Cable Positioned Where Cover
