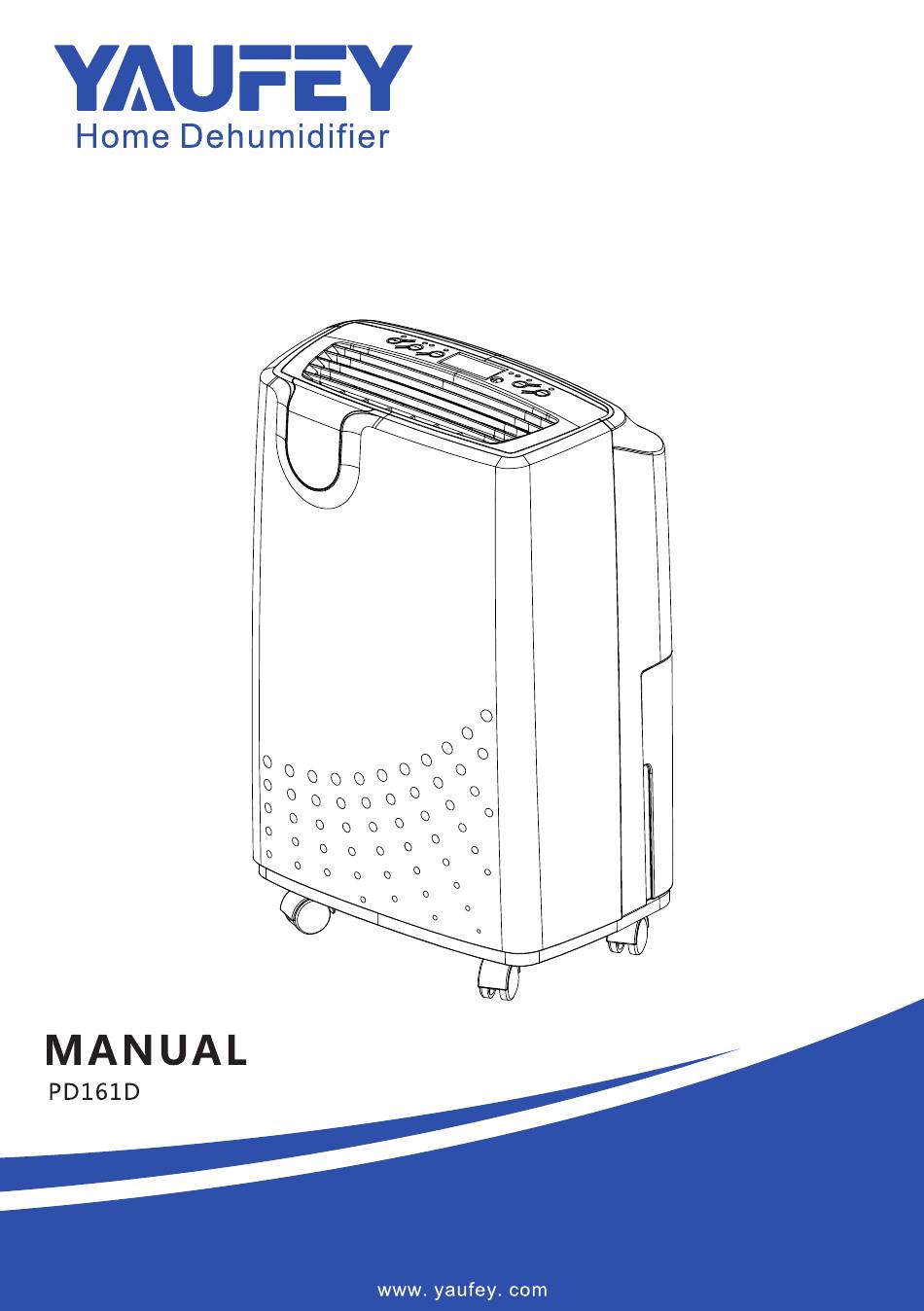

- Page 1 Before operating this product, please read the instructions carefully and save this manual for future use.
- Page 2 BEFORE FIRST USE: To prevent any internal damage, it is very important to keep refrigeration units (like this one) upright throughout their journey. Please leave it standing upright and outside the box for 24 HOURS before plugging it in.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions Parts Description Operation Care & Cleaning Troubleshooting Technical Specifications Warranty Warning Contact Us... -
Page 4: Important Safety Instructions
Important Safety Instructions IMPORTANT NOTICE FOR FIRST USE To prevent injury to the user or other people and property damage, the following instructions must be followed when using the Dehumidifier. Incorrect operation due to ignoring of instructions may cause harm or damage. - Page 5 Yaufey Customer Service at support@yaufey.com for repair or replacement. - Do not operate dehumidifier with a damaged cord or plug. Please contact Yaufey Customer Service at support@yaufey.com for repair or replacement. - To reduce the risk of fire or electric shock, do not use this dehumidifier with any solid-state speed control device.
-
Page 6: Parts Description
Parts Description FRONT Control Panel Air Outlet Grille REAR Handle Filter Air intake Grille Humidity Sensor Drain Hose Outlet Bucket... -
Page 7: Operation
Operation PLACE CORRECTLY PLACE CORRECTLY - This unit may have been tilted or placed upside down during shipping. To ensure this device works properly, please ensure this unit is upright for at least 24 hours before initial use. - This dehumidifier is designed to operate with a working environment between 41°F (5°C) and 100°F (38°C). - Page 8 Operation Setting Button The humidity level can be set within a range of 30%RH to 80%RH in 5% increments. When it start work, it will first automatically detect and show the humidity (and in the room, then you can press or hold the Setting Buttons to change temperature) the humidity selection in 5% increments.
- Page 9 Operation Speed Button Control the fan speed. Press to select either High or Normal fan speed. A higher fan speed will result in quicker moisture removal. Set the fan control to High for maximum moisture removal. When the humidity has been reduced and quiet operation is preferred, set the fan control to Normal.
- Page 10 - If the display reads "E1", "E2" or "E4" error codes, please turn off and unplug the unit, and check for any obstructions. Plug it in again and restart the dehumidifier, if the malfunction is still present, please contact Yaufey Customer Service at support@yaufey.com for repair and/or replacement.
- Page 11 Operation NOTE - Replace the empty bucket back into the unit and once seated correctly, the unit will start up again. - You should hear a click when the bucket is in the correct position. - Do not remove the float in the bucket, otherwise the sensor will not be able to sense the water level properly, so that the water will overflow from the bucket when the bucket is full.
-
Page 12: Care & Cleaning
Care & Cleaning CARE AND CLEANING OF THE DEHUMIDIFIER WARNING: Turn the dehumidifier off and remove the plug from the wall outlet before cleaning 1. Clean the bucket Clean the bucket with water every two (2) weeks. 2. Clean the air filter Clean the filter with clean water at least once every 30 days. -
Page 13: Troubleshooting
Troubleshooting Before calling Yaufey customer service, review this list. It may save you time and expense. This list includes the most common occurrences that are not the result of defective workmanship or materials in this dehumidifier. CAUSE PROBLEM - Make sure the dehumidifierʼs plug is inserted completely into the outlet. -
Page 14: Technical Specifications
Technical specifications Humidity removal(27℃/60%RH) Humidity removal(30℃/80%RH) Humidity removal(35℃/90%RH) Rated input power(27℃/60%RH) High temperature power (30℃/80%RH) Max Power(35℃/90%RH) Max allowable pressure of Heat exchanger Max allowable pressure of Air-in/Air-out side Max allowable pressure of high/ low pressure side Bucket capacity -11-... -
Page 15: Warranty
(c) exposure to liquid or infiltration of foreign particles; (d) servicing or modification of the product other than by Yaufey. These are our general terms for the warranty service, but we always urge our customers to reach out to us with any issue, regardless of warranty terms.
Need help?
Do you have a question about the PD161D and is the answer not in the manual?
Questions and answers
What does error message E4 mean
Error message E4 for the YAUFEY PD161D dehumidifier indicates a temperature sensor error. If this occurs, turn off and unplug the unit, check for obstructions, then plug it in and restart. If the problem persists, contact Yaufey Customer Service at support@yaufey.com for repair or replacement.
This answer is automatically generated
What refirgerant is used in it?
need a replacment hose for Yaufey dehumidifier model PD161D. Hose got ripped . I would like to order 2 hoses as they are light and can break easily
