Summary of Contents for YAUFEY PD161D

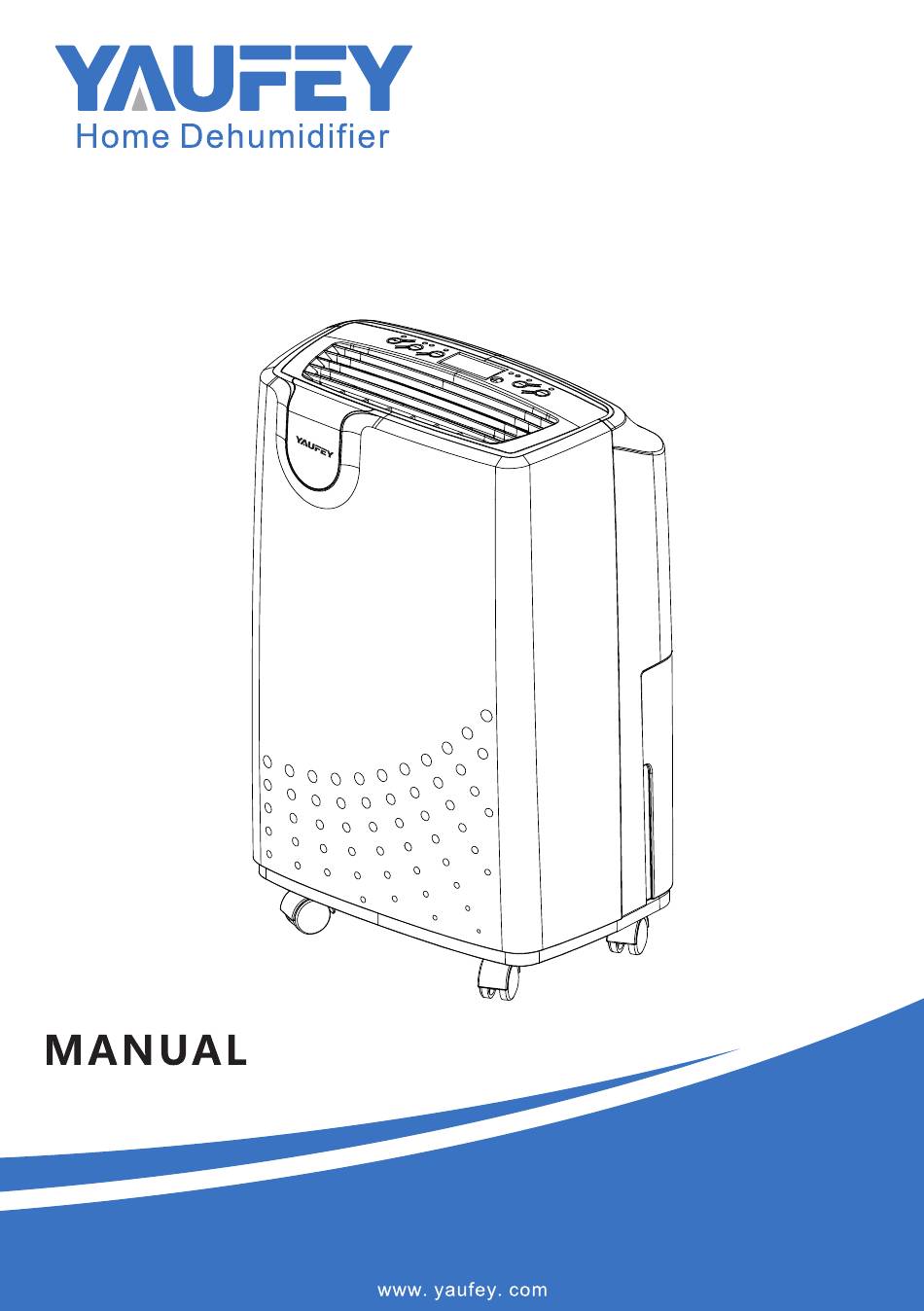

- Page 1 PD161D...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions Parts Description Operation Care & Cleaning Troubleshooting Technical Specifications Warranty Warning Contact Us... - Page 3 BEFORE FIRST USE: To prevent any internal damage, it is very important to keep refrigeration units (like this one) upright throughout their journey. Please leave it standing upright and outside the box for 24 HOURS before plugging it in.
-
Page 4: Important Safety Instructions
Important Safety Instructions IMPORTANT NOTICE FOR FIRST USE To preventing the user or other people's property damage injury, we must use the dehumidifier follow the instruction. Incorrect operation due to ignoring of instructions may cause harm or injury. This instructions is for household use only. 1. - Page 5 21. Always insert the filters securely. Make sure to clean the filter once every month. 22. Do not use the dehumidifier in tiny spaces. 23. If water enters the dehumidifier, please turn the dehumidifier off and disconnect the power, contact Yaufey Customer Service at email: support@yaufey.com in order to avoid a hazard.
-
Page 6: Parts Description
Parts Description FRONT Control Panel Air Outlet Grille REAR Handle Filter Air intake Grille Humidity Sensor Drain Hose Outlet Bucket... -
Page 7: Operation
Operation CONTROL PANEL Speed Button "BUCKET FULL" Indicator Lights Full SPEED Setting Button Timer Button Power Button Digital Display POWER button Press to turn the dehumidifier on and off. SETTING button The humidity level can be set within a range of 30%RH to 80%RH in 5% increments. -When it starts work, it will first automatically detect and show the room's humidity(and temperature). - Page 8 Operation Note: - Before entering TIMER setting, make sure power is being supplied to the unit. - Before entering TIMER setting, make sure pressing Setting Button sets one desired room humidity first. SPEED Button Control the fan speed. Press to select either High or Normal fan speed. A higher fan speed will result in quicker moisture removal.
- Page 9 2. When one of the above malfunctions occurs, the buzzer will alarm for a few seconds. Press any key during the alarm to release the alarm sound.-If the malfunction is still present, please don‘t hesitate to contact Yaufey Customer Service email: support@yaufey.com for help.
- Page 10 Operation REMOVING THE COLLECTED WATER There are two ways to remove collected water: 1. Use the bucket When the bucket is full, remove the bucket and empty it. Discard water from bucket. Note: Replace the empty bucket back into the unit and once seated correctly, the unit will start up again.
-
Page 11: Continuous Drainage
Operation Continuous Drainage The continuous drainage function can be realized by connecting the drainage pipe at the continuous drainage port Continuous drain Bucket Continuous drainage Pipe installation Picture 1: Example of error connection The water pipe upward arch position D above position B, the inside of the water pipe is prone to air and accumulation, which leads to a smooth discharge through the Pipe. -
Page 12: Care & Cleaning
Care & Cleaning CARE AND CLEANING OF THE DEHUMIDIFIER WARNING: Turn the dehumidifier off and remove the plug from the wall outlet before cleaning 1. Clean the bucket Clean the bucket with water every two (2) weeks. 2. Clean the air filter Clean the filter with clean water at least once every 30 days. -
Page 13: Troubleshooting
Troubleshooting Before calling Yaufey customer service, review this list. It may save you time and expense. This list includes the most common occurrences that are not the result of defective craft or materials in this dehumidifier. CAUSE PROBLEM - Make sure the dehumidifierʼs plug is inserted completely into the outlet. -
Page 14: Technical Specifications
Technical specifications 11.5pints/Day(5.45L/Day) 22.5pints/Day(10.7L/Day) 32.7pints/Day(15.5L/Day) -11-... -
Page 15: Warranty
Warranty Yaufey offers a 12-month warranty on all of our products purchased new and unused from Yaufey Technologies Co.,Ltd. or an authorized reseller, with an original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacturing, parts or workmanship during the Warranty Period. - Page 16 Home Dehumidifier （Scan the QR Code Get More)
Need help?
Do you have a question about the PD161D and is the answer not in the manual?
Questions and answers
What is default humidity setting on pd161 d
The default humidity setting on the YAUFEY PD161D is 30% RH.
This answer is automatically generated
