Leviton 41920-SP4 Installation Instructions

SAFETY INFORMATION
•
WARNING: TO AVOID DEATH OR SERIOUS INJURY, never push objects of any kind into this
product through openings, as they may touch dangerous voltages.
• WARNING: TO AVOID DEATH OR SERIOUS INJURY, never touch uninsulated wires or
terminals unless the wiring has been disconnected at the network interface.
• Read and understand all instructions. Follow all warnings and instructions marked on the product.
• Do not use this product near water - e.g., near a tub, wash basin, kitchen sink or laundry tub, in a
wet basement, or near a swimming pool.
Features
• Splits a single HDMI input to four HDMI outputs.
• Supports HDMI 2.0 features, 4Kx2K@60Hz 4:4:4, Dolby Vision.
• 18Gbps high bandwidth.
• HDMI input supports HDCP 2.2 and the outputs support HDCP Active or HDCP
Passive mode.
• Supports video resolution down-scaling, the 4K input can be automatically
reduced to 1080p output for compatibility with 1080p displays.
• Up to 6 types of built-in EDIDs can be selected via DIP switch.
• RCA and digital optical (TOSLINK) audio outputs for audio extraction.
• Up to 6 units can be cascaded to distribute video signals to multiple
video displays.
• CEC pass-through.
What's Included
(1) HDMI 1 x 4 splitter (2) Mounting brackets
(4) Mounting bracket screws (1) Power adapter (5V DC 1A) USB
(4) Non-skid pads (1) Instruction sheet
(1) USB Type A to C cable

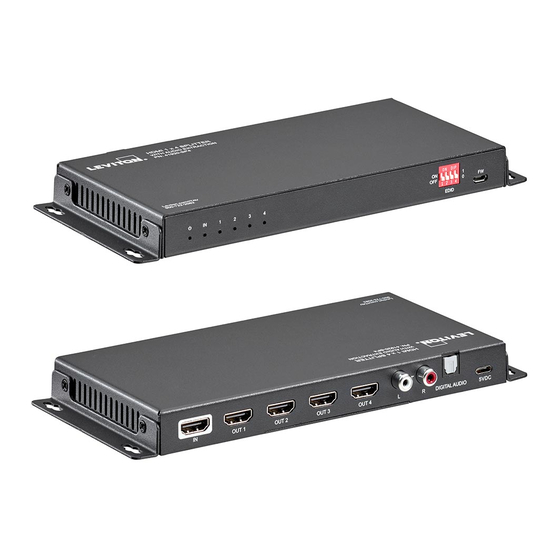

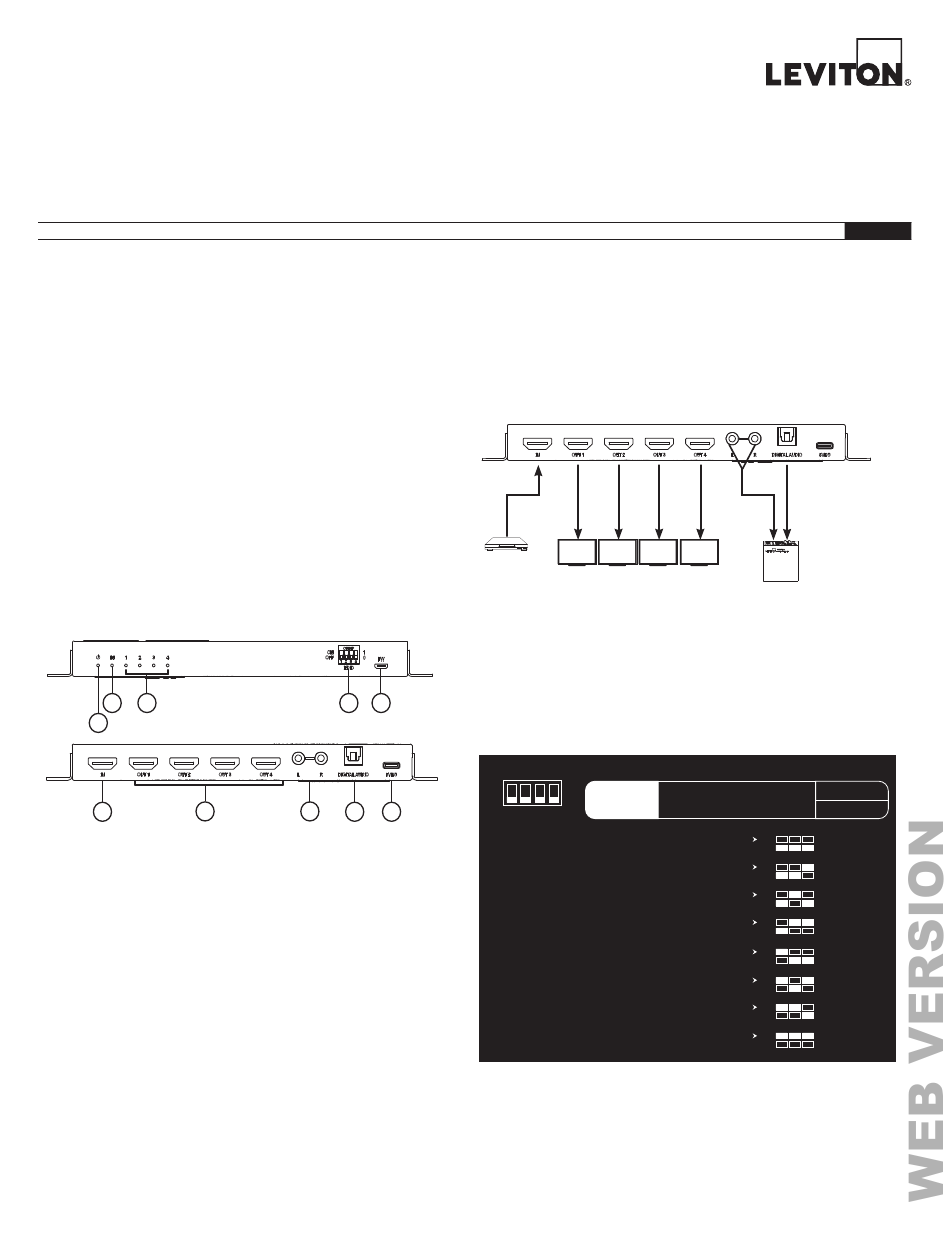

Panel Description
2
3
1
7
6
1. POWER INDICATOR: illuminates red when splitter is powered on.
2. INPUT INDICATOR: illuminates blue when an input signal is present.
3. OUTPUT 1-4 INDICATORS: illuminate green when there is HDMI output on
the corresponding channel.
4. EDID: 4-position DIP switch for setting EDID.
5. FW: not used.
6. HDMI IN: connect to HDMI source.
7. HDMI OUT 1-4: connect to HDMI display.
8. Audio OUT: L+R analog RCA audio.
9. DIGITAL AUDIO: digital optical audio output.
10. 5VDC: connect to USB power adapter.
© 2019 Leviton Mfg. Co., Inc.
HDMI ® 1 x 4 Splitter
with Audio Extraction
Cat. No. 41920-SP4
•
•
•
•
INSTALLATION INTRUCTIONS
System Connection
•
•
•
System Diagram
NOTE: Diagram for reference only.
HDMI Source
(e.g., Blu-ray DVD)
EDID Management
The Extended Display Identification Data (EDID) is used by the source device to
match its video resolution with the video resolution of the connected display. By
default, the source device obtains its EDID from the first connected display. The
DIP switch on the front panel can be used to set the EDID to a fixed value to ensure
4 5
video resolution compatibility with connected displays when those displays have
different video resolutions.
OFF
8
9 10
Never install communications wiring or components during a lightning storm.
Never install communications components in wet locations unless the components are
designed specifically for use in wet locations.
Use caution when installing or modifying communications wiring or components.
SAVE THESE INSTRUCTIONS.
System should be installed in a clean environment with temperature and humidity
control.
All power switches, plugs, sockets and power cords should be insulated for safety.
Connect all devices before powering on the splitter.
Display/ Display/ Display/
Projector Projector Projector
1 2 3 4
ON 1
ON
0
OFF
Default
Priority OUT 1 > 2 > 3 > 4
Priority OUT 1 > 2 > 3 > 4
1080p LPCM
1080p DTS/Dolby
4K/30Hz LPCM
4K/30Hz DTS/Dolby
4K/60Hz LPCM
4K/60Hz DTS/Dolby
DI-080-41920-05A
ENGLISH
(or)
Display/
Projector
Leviton Amp
41920-A70
1 2 3 4
HDCP Active
EDID Setting
HDCP Passive
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
DI-080-41920-05A
