- Page 1 INSTALLATION INSTRUCTIONS & USER MANUAL EVO INTELLIGENT BIDET SHOWER SEAT SIDE INLET EV105 IMPORTANT! Please read these instructions prior to installation Distributed by: T 04 568 9898 E sales@plumbline.co.nz www.plumbline.co.nz...
- Page 2 INSTALLATION INSTRUCTIONS EVO INTELLIGENT BIDET SHOWER SEAT SIDE INLET | EV105 General Installation Instructions Please carefully check the bidet shower seay prior to installation to ensure it has not been damaged during handling or transport, and check that all parts have been supplied. We suggest you keep this manual after reading/installation for later reference.
-
Page 3: Table Of Contents
Contents Safety Notes User Precautions Product Description Components Description Installation Steps Method of Use Cleaning & Maintenance Faults & Troubleshooting Product Dimensions Product Technical Specification... -
Page 4: Safety Notes
Safety Notes Read the safety instructions carefully before use so as to use the bidet seat correctly. Note the following warnings relevant to safety Compulsory Warning Prohibited Note Failure to observe the above-mentioned warning signs may result in injury or life-threatening risk. Warning Avoid splashing water on the bidet seat Splashing may result in fire or electric shock. - Page 5 Safety Notes Only use a suitable power outlet socket. Ensure that no water, cleaning Excessive loads on multi-outlet chemical or urine comes in powerboards is strictly prohibited. contact with the power plug. May result in overheating or fire. May result in fire or electric shock.
- Page 6 Safety Notes Do not disassemble, repair and modify Unplug the power supply when without authorization. cleaning the bidet seat. May result in fire or electric shock. May result in electric shock. Do not use cigarettes or other Do not bend or twist the combustible items near the bidet seat.
-
Page 7: User Precautions
User Precautions Do not place this product in direct sunlight. Ensure room temperature is above 0°C. May cause product discoloration If temperature is below 0°C water supply can freeze. and failure of seat heating function. Do not use substandard power supply. Do not shower urine on the bidet body and nozzle. -

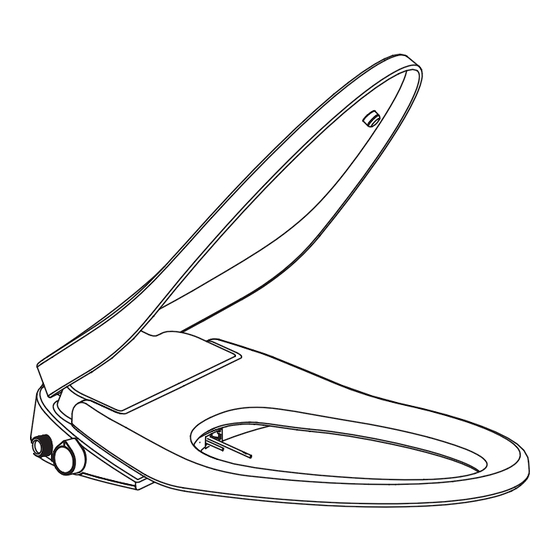

Page 8: Product Description
Product Description Toilet cover Drain plug Toilet seat Nozzle Control Knob Water supply hose joint Power plug Disassembly button Functional setting key Functional setting key Control Knob Water temperature STOP Seat temperature adjustment indicator adjustment indicator Water temperature Seat temperature adjustment key adjustment key Bidet... -
Page 9: Components Description
Component Description Note: There are two installation methods for this product (see 3A and 3B on the following page). Please choose one of the methods according to the actual situation . 1.Cover plate 2. Installation template 3.Fixing parts Screw (2) Expansion bolt (2) (up lock) Fixing plate (1) -
Page 10: Installation Steps
Installation Steps Installation tools Cross screwdriver Bucket and rag Adjustable wrench Installation precautions 1. Recommended Water pressure range: 0.1-0.75MPa. 2. Water inlet valves must be located close to the location where this product is installed and disassembled. Installation Procedure 1.Remove the old toilet seat plate. 2.Place the installation template on top of the toilet as shown. - Page 11 Installation Steps C L I 5.Slightly push the bidet seat into the fixing 4.The installation template is designed for plate in the specified direction until a "click" one- time use. Please discard it after the sound is heard, indicating that the bidet seat installation is completed.
- Page 12 Method of Use - Control Knob Instructions Standby mode 1.Make sure the plug is dry before power supply is connected. 2.After the power supply is connected, the bidet seat will perform a self-check, and the “beep” indicates that the self-check is completed and the toilet can be used normally.
-
Page 13: Method Of Use
Method of Use - Function Settings Function settings instructions Function settings key Water temperature Seat temperature adjustment indicator adjustment indicator Prompt Light OFF Light ON Highlighted Water temperature Seat temperature adjustment key adjustment key Repeatedly pressing “ ” will switch over water temperature in the sequence indicated in the left diagram. -
Page 14: Cleaning & Maintenance
Cleaning & Maintenance Manual cleaning of spray nozzle - Gently pull out the nozzle and apply a neutral detergent with a soft cloth, sponge or small brush. - Gently supporting the nozzle, wipe the spray tube and nozzle. Cleaning the filter Braided hose Filter Tips:... - Page 15 Cleaning & Maintenance Surge protector Check the surge protector regularly, at least once a month Inspection method: - Press the surge protector Reset button: - indicator light is on, and the power supply is on. - Press the surge protector "Test" key button: - indicator light is off, and the power supply is disconnected.
-
Page 16: Faults & Troubleshooting
Faults & Troubleshooting Common fault diagnosis If you think the bidet seat has a fault, try some of the following process methods. If the product is still not working properly, contact an authorised technician or electrician . Check power supply Check water supply 1.If water supply is under normal state. -
Page 17: Product Dimensions
Faults & Troubleshooting / Product Dimensions Alarm function Phenomenon Possible cause Solution Control Knob switch is not reset to Buzzer continuously Reset Control Knob to OFF state. beeps OFF state when away from seat Surge protector Electricity leakage beyond Cut off power supply, stop using product, contact and authorised technician. -
Page 18: Product Technical Specification
Product Technical Specification EV105 Product Technical Specification Items Description Model FE105-12 Rated voltage 220V~, 50Hz 960W Rated power (Inlet water temperature 15±5℃, flow at 600ml/min) Max. transient power 1550W Length of power line ≥ 1.1m Water supply pressure 0.1 ~ 0.75MPa Water supply temperature 5 ~ 35℃...
