SportsArt Fitness N865 Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
N865/G690 Service Manual (Mechanism Category)

Advertisement

loading
Need help?

Need help?

Do you have a question about the N865 and is the answer not in the manual?

Questions and answers

Related Manuals for SportsArt Fitness N865

Summary of Contents for SportsArt Fitness N865

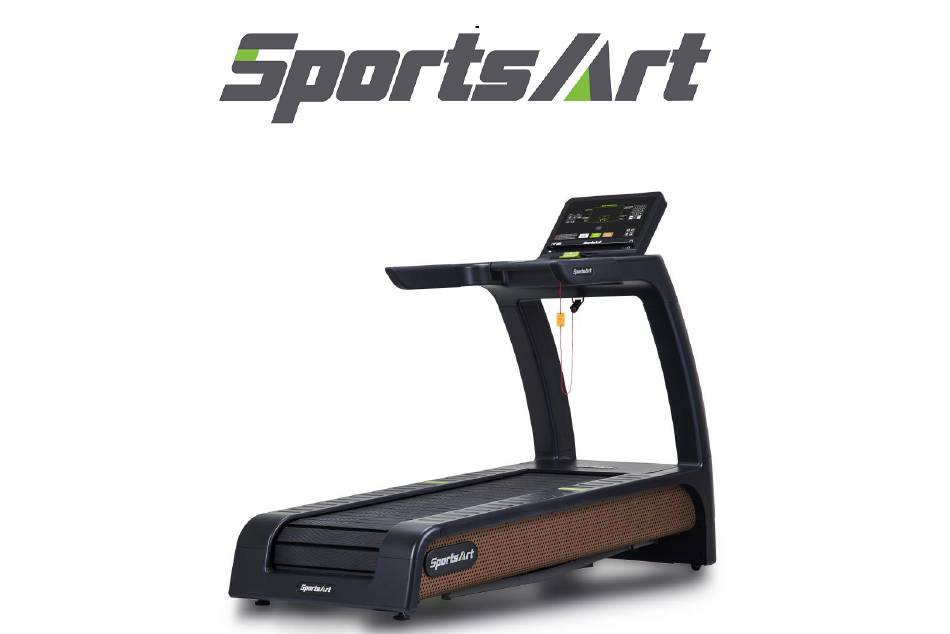

  • Page 1 N865/G690 Service Manual (Mechanism Category)
  • Page 2 1. Exploded View Diagram for Use in Business M1-1-1...
  • Page 3 1. Exploded View Diagram for Use in Business M1-1-2...
  • Page 4 1. Exploded View Diagram for Use in Business M1-1-3...
  • Page 5 1. Exploded View Diagram for Use in Business M1-1-4...
  • Page 6 1-2.Introduction to Major Parts of the Machine Electronic Meter Handl Support Rod Foot Plate Jogging Belt Rear-End Set Side Plate M1-2-1...
  • Page 7 1-2.Introduction to Major Parts of the Machine Front Wheel Block Wheel X4 Rear Wheel Slide Plate Horizontal Rod X3 M1-2-2...

  • Page 8: Inspection And Maintenance

    Inspection & Maintenance Item: Checklist. Sequence Check Items Check Contents Brake System a. When you abort operations, the Jogging Belt will be very tight. b. When you press Start, the Jogging Belt will become smooth. c. Remove the safety-key, and the Jogging Belt will be very tight. d.
  • Page 9 Inspection & Maintenance Item: Fine-tuning of the Tightness of the Jogging Belt and the Deviated Belt. Right Side: adjustment Testing Point for the of the Deviated Belt Test Rod Position for Placement of the Test Rod Left Side: Tightness Adjustment M2-2-1...
  • Page 10 Inspection & Maintenance Item: Fine-tuning of the Tightness of the Jogging Belt and the Deviated Belt Step2. Insert the Test Rod into the tightness testing port, as shown Step1. As shown below, gently insert the Test Rod into the tightness below.
  • Page 11 Inspection & Maintenance Step5. During adjustment, please set the Machine speed at around Step6. Again, insert the Test Rod in the Test Hole to test if the right 6kph. Hold the Handles with both hands. Run on the tightness is in place. If not, adjust the tightness again (see Step3). Machine to make the Belt move.
  • Page 12 Inspection & Maintenance Item: Inspection of the Block Wheel. Method: 1. Check the Surface of the Block Wheel. 2. Rotate the Block Wheel and check if the Bearing is moving smoothly. M2-3-1...
  • Page 13 Inspection & Maintenance Item: Cleaning and Maintenance of the Slide Plate. Method: 1. Use the Dry Cloth to clean the Surface of the Slide Rail as well as the Bearing of the Jogging Belt. 2. Also, clean out the dust and dirt on the bottom layer of the Jogging Belt. 一...
  • Page 14 Inspection & Maintenance Item: adjustment to tightness of the Poly-Rib Belt and the Deviated Belt. Method: 1. Please install the sound frequency app on your smartphone. 2. Adjust the Cast Steel Wheel, the Front Wheel and the Poly-Rib Belt depending on actual conditions, so that the Poly-Rib Belt is approximately in the middle of the idler wheel when it is rotated forward or backward.
  • Page 15 Inspection & Maintenance Item: Cleaning and Maintenance of the Front and Rear Wheels. Timing of Maintenance: When the Jogging Belt is disassembled. Method: 1. Use the clean cloth to clean out the dust on the surface. Dust on the Surface of the Rear Wheel before it is cleaned away by the Dry Cloth.
  • Page 16 Parts Disassembly and Replacement Item: N685 Disassembly of the Driver Set. Step1. As shown below, disassemble the screw x2 and take out the Step2. As shown below, take out the Driver Heatsink Screw x2. protective cover of the Driver Board. Step3.
  • Page 17 Parts Disassembly and Assembly Item: N685 Assembly of the Driver Set. Step1. Connect all wiring of the Driver. Step2. Lock the screw to the hole. Step3. Lock up the protective cover of the Driver. M3-1-2...
  • Page 18 Parts Disassembly and Dismantling Item: N685 Disassembly of the Rear Cover of the Electronic Meter. Step1. Use the Slotted Screwdriver to open the protective cover and Step2. Disassemble the Rear Cover Screw of the Electronic Meter x4. take it out. Step3.
  • Page 19 Parts Disassembly and Assembly Item: Replacement of the Jogging Belt. Step1. Pull in the direction of the arrow to take out the motor cover. Step4.Take out the rear-end protective cover group. Step3. Take out the Rear Cover on the left side and the right side. M3-3-1...
  • Page 20 Parts Disassembly and Assembly Item: Replacement of the Jogging Belt. Step5. Disassemble the Rear Screw of the Foot Plate on the left side Step6. Take out the Side Cover Plate of the Motor. and the right side x1. Step7. Disassemble the screw, as shown below. Step8.
  • Page 21 Parts Disassembly and Assembly Item: Replacement of the Jogging Belt. Step9. Disassemble the screw as shown below, and take out the Side Plate on the Step10. Take out the Block Wheel x4. left side and the right side. Step11. As shown below, disassemble the screwx2; and Step12.
  • Page 22 Parts Disassembly and Assembly Item: Replacement of the Jogging Belt. Step13. As shown below, disassemble the 3 Horizontal Rods. Step14. Disassemble the parts, as shown below. Step15. Disassemble the Screw of the Anti-Dust Set; and take out Step16. Disassemble the Screw of the Rear Wheel. the Anti-Dust Set.
  • Page 23 Parts Disassembly and Assembly Step17. Loosen the Screw of the Rear Wheel and take out the Rear Step18.Take out the Poly-Rib Belt and the Front Wheel screw x1. Wheel. Step19. Take out the Front Wheel to complete the process. M3-3-5...
  • Page 24 Parts Disassembly and Assembly During Assembly, you may follow the reversed sequence of disassembly for re-assembly. Relevant Parts that may need adjustment: 1. Position and tightness of the Poly-Rib Belt. 2. Position and tightness of the Jogging Belt. Reference photos are shown as follows: The Poly-Rib Belt is adjusted to the middle of the idler wheel.
  • Page 25 Parts Disassembly and Assembly Machine Type: N685/G690 Item: Replacement of the Poly-Rib Belt. Step1. As shown below, disassemble all accessories of the Machine Step2. As shown below, disassemble the Screw of the Front before replacement of the Poly-Rib Belt. Wheel, and take out the Belt. Step3.
  • Page 26 Parts Disassembly and Assembly Machine Type : N685/G690 Item : Replacement of the Poly-Rib Belt. Step5. Raise the Front Wheel, install the Poly-Rib Belt and lock the Step6. Adjust the position of the Poly-Rib Belt, so that the Poly-Rib Screw of the Front Wheel. First place the Belt into the Major Belt is in the middle of the idler wheel when it is rotated Belt Wheel, and install the Belt Pulley for the Cast Steel forward and backward.
  • Page 27 Parts Disassembly and Assembly Item: Replacement of the Surface of the Slide Plate. Timing of Replacement: When the Surface of the Slide Plate is overly worn Replacement Method: 1. As shown below, disassemble the screw to take out the old Slide Plate and thoroughly remove the remaining glue. 2.
  • Page 28 Parts Disassembly and Assembly Item: Replacement of the Surface of the Slide Plate. Description: Exploded View Diagram of Relevant Parts. M3-5-2...
  • Page 29 Parts Disassembly and Assembly Item: N685 Replacement of the Brake Pad. Step1. As shown below, takeout the protective cover. Step2. Loose the Spring of the Brake System. Step3. As shown below, disassemble the screw. Step4. Take out the accessories. M3-6-1...
  • Page 30 Parts Disassembly and Assembly Item: N685 Replacement of the Brake Pad. Step5. Take out the Brake Pad Screw x3, install the new Brake Pad and lock up the screws. M3-6-2...
  • Page 31 Parts Disassembly and Assembly Item: N685 Assembly of the Brake Pad System. Step1. Put the Brake Pad and the Spring back in place. Step2. Lock up the screws. M3-6-3...
  • Page 32 Parts Disassembly and Assembly Item: N685 Replacement of the Brake Gearbox. Step1. Disassemble the spring. Step2. As shown below, disassemble the screw x2. Step3. As shown below, disassemble the screw x3 and take out the Step4. During assembly, please lock up the screws in the specified gear set.
  • Page 33 Parts Disassembly and Assembly Item: N685 Replacement of the Generator Cast Steel Wheel. Step1. Remove the belt on the generator. Step2. As shown below, disassemble the specified screws. Step4. Screw holes of the Generator Cast Steel Wheel. Step3. As shown below, disassemble the Screws and take out the Cast Steel Wheel. M3-8-1...
  • Page 34 Parts Disassembly and Assembly Item: N685 Replacement of the Button under the Electronic Meter. Step2. Loosen the screws under the Electronic Meter. Step1. There are screws x2 under the Electronic Meter. Step3. Push the button group in the upward direction. Step4.
  • Page 35 Parts Disassembly and Assembly Item: Correction to the tightness of the Brake Pad Retaining Clip. Step2. Press <Change display>+<Enter> on the Electronic Meter, Step1. As shown below, loosen the screws slightly. and the panel will show ”- - -.” Then, the Electronic Meter will be shut off automatically.
