- Page 1 Salwico ST200 & Salwico ST600EX CGD50/500 Calibration Instruction...
- Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Consilium Building Safety AB assumes no legal responsibility for any error or damage resulting from the usage of this document.

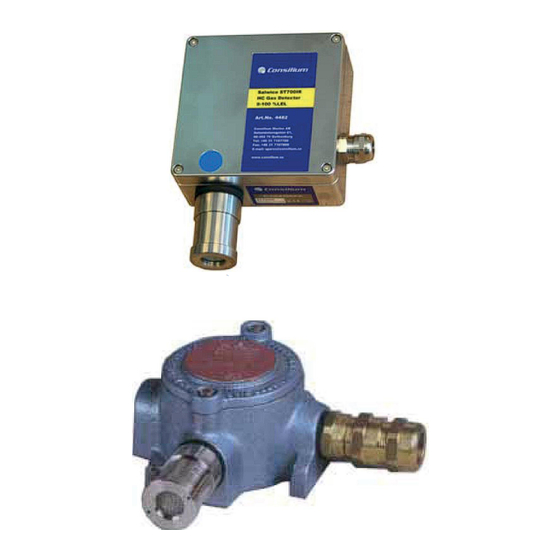

- Page 3 Salwico ST600EX 1.1 Preliminaries This instructions applies to the following products: Figure 1. Salwico ST200. Part No. 4470 Figure 2. Salwico ST600EX. Part No. 4460. NOTE! It is recommended to periodically carry out a gas response check on the gas detector to ensure correct operation.
- Page 4 1 Calibration Instruction for Salwico ST200 and Salwico ST600EX Calibration Instruction • A small terminal screw driver, with thin straight tip. • A multimeter with mA (milliampere) capacity. 1.2 Prerequisites Use the arrow keys on the control panel to manoeuvre through the different menus.
- Page 5 1 Calibration Instruction for Salwico ST200 and Calibration Instruction Salwico ST600EX Connect the Flowcap to the sensor head as shown in the picture. Connect the measuring tips of the multimeter to the test points in the detector. Plus is red, minus is black.
- Page 6 1 Calibration Instruction for Salwico ST200 and Salwico ST600EX Calibration Instruction Connect the suitable test-gas for the Recommendations: detector, normally a 50% LEL mixture. The ST200 and ST600EX can only respond to gas in normal Air. This means that Calibration gas in N2 / Nitrogen are not suited for these detectors.
- Page 7 1 Calibration Instruction for Salwico ST200 and Calibration Instruction Salwico ST600EX Scroll to Menu » Disablements. Choose the detector you just disabled and press Options. Select Reconnect and press Continue. 5103026_Salwico ST200 & Salwico ST600EX_Calibration Instruction_I0_EN_2019_C...
- Page 8 FOR ALL THOSE MOMENTS WHEN SAFETY MATTERS Consilium is a producer of safety and safety-related technologies for the marine, oil and gas, transport and building sectors. Our commitment goes beyond the products: We protect the lives of mothers and fathers, sisters and brothers, colleagues and friends. With representation in more than 25 countries in all time zones, we are always close to you.
