Consilium ST350 Quick Installation Manual

QUICK INSTALLATION GUIDE
Consilium ST350/ST450/ST650
NOTE! Read and understand this entire guide before
installing the detector. It contains information that is
essential for your safety and for the correct installation
and operation of the Consilium detector.

Safety

• If the detector is used in a potentially gas hazardous
environment, the relevant regulations for explosion classified
equipment must be observed at all times.
• Never change a sensor in a potentially hazardous atmosphere
while the transmitter is still powered.

Installation

Location:

Gas detectors should be installed where a potential gas hazard is
most likely to be present. Consider the behaviour of the specific gas
as well as factors such as the influence of temperature and natural
or forced air currents.
NOTE! Do not install the detectors on open weather
deck.
Location requirements for a correct function of the detector:
• Area free from shocks or vibrations
• Protection against rain or flooding
• Ease of access for maintenance and calibration purposes
Limitations for catalytic sensors (ST650EX):
• Minimum 10% oxygen in the surrounding atmosphere
• Not suitable for non-stop gas exposure
• Not suitable in areas where compounds containing silicon,
halogens, lead, organometals, sulphur, or organophosphates are
present

Mounting:

Arrange the detector in a vertical position, with the sensor pointing
downwards, to avoid accumulation of moisture, dirt, dust, silicone,
and/or chemical residue.
189
Ø7
179
Ø35
127

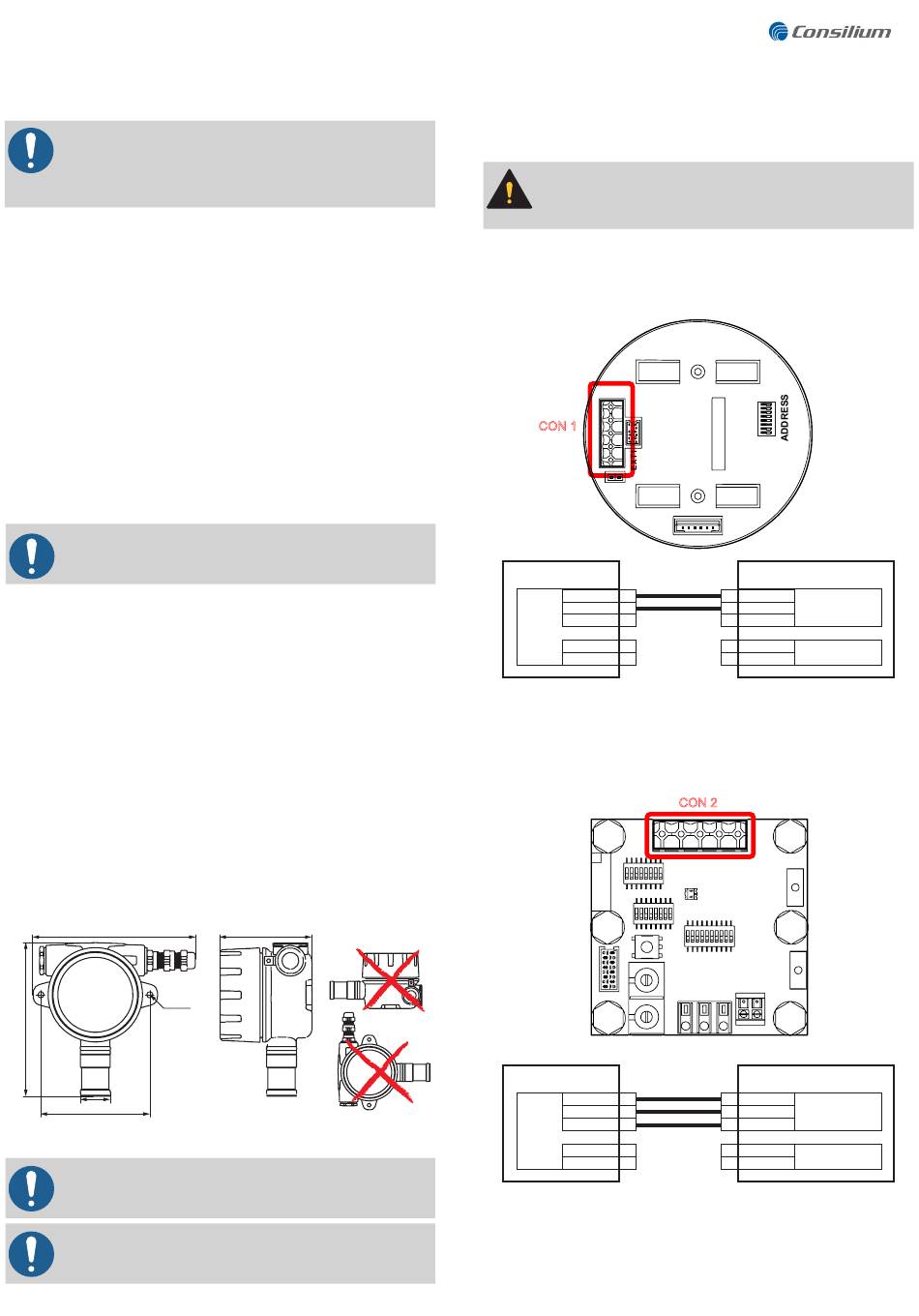

Figure 1. Detector dimensions (mm) and mounting position
NOTE! The detector should always be mounted
vertically.
NOTE! To increase the oxygen sensor lifetime, avoid
exposing it to air until commissioning.
107

Electrical connections

CAUTION! All electrical connections must be made
in accordance with local and national legislations,
applicable standards, and codes of practice.
Wiring for the ST450EC detector:
Connections are available on connector CON1 which is accessible
on the rear side of the main PCB.
CON 1
0 – 25 mA
Vin
CON 1
GND
B -
A +
SET1
ST450 EC
0-25 mA 1
V 2
in
GND 3
CON 1
B (-) 4
A (+) 5
Figure 2. ST450EC connections to control unit
Wiring for ST350 and ST650EX detectors:
Connections are available on connector CON2 which is accessible
on the main PCB.
ST350EX/650EX
0-25 mA 1
V 2
in
GND 3
CON 2
B (-) 4
A (+) 5
Figure 3. ST350 and ST650EX connections to control unit
5103106_ST350/ST450/ST650_Quick Installation Guide_M_EN_2019_B
S1
CN1
Control unit
1 Signal
PSU
2 +24 V DC
analog input
3 0 V
4 Rx (-)
Modbus RTU
RS485, Half Duplex
5 Tx (+)
CON 2
Control unit
1 Signal
PSU
2 +24 V DC
analog input
3 0 V
4 Rx (-)
Modbus RTU
RS485, Half Duplex
5 Tx (+)
