Description
KVD is a group name for detectors in the Salwico gas alarm
programme for detection of explosive, toxic or inflammable
fluids and gases. KVD detectors are intended for use in
heavy-duty industrial environments and can be adapted for
detection of different gases depending on which semi-
conductor sensor it is equipped with.
The KVD detector consists of an aluminium junction box and
a sintered housing around the sensor. The KVD is connected
to the central unit via a screened 3-core cable.
KVD(COD) is intended for detection of carbon monoxide
(CO). The KVD(COD) also includes a dust filter to minimise
interference from other gases.

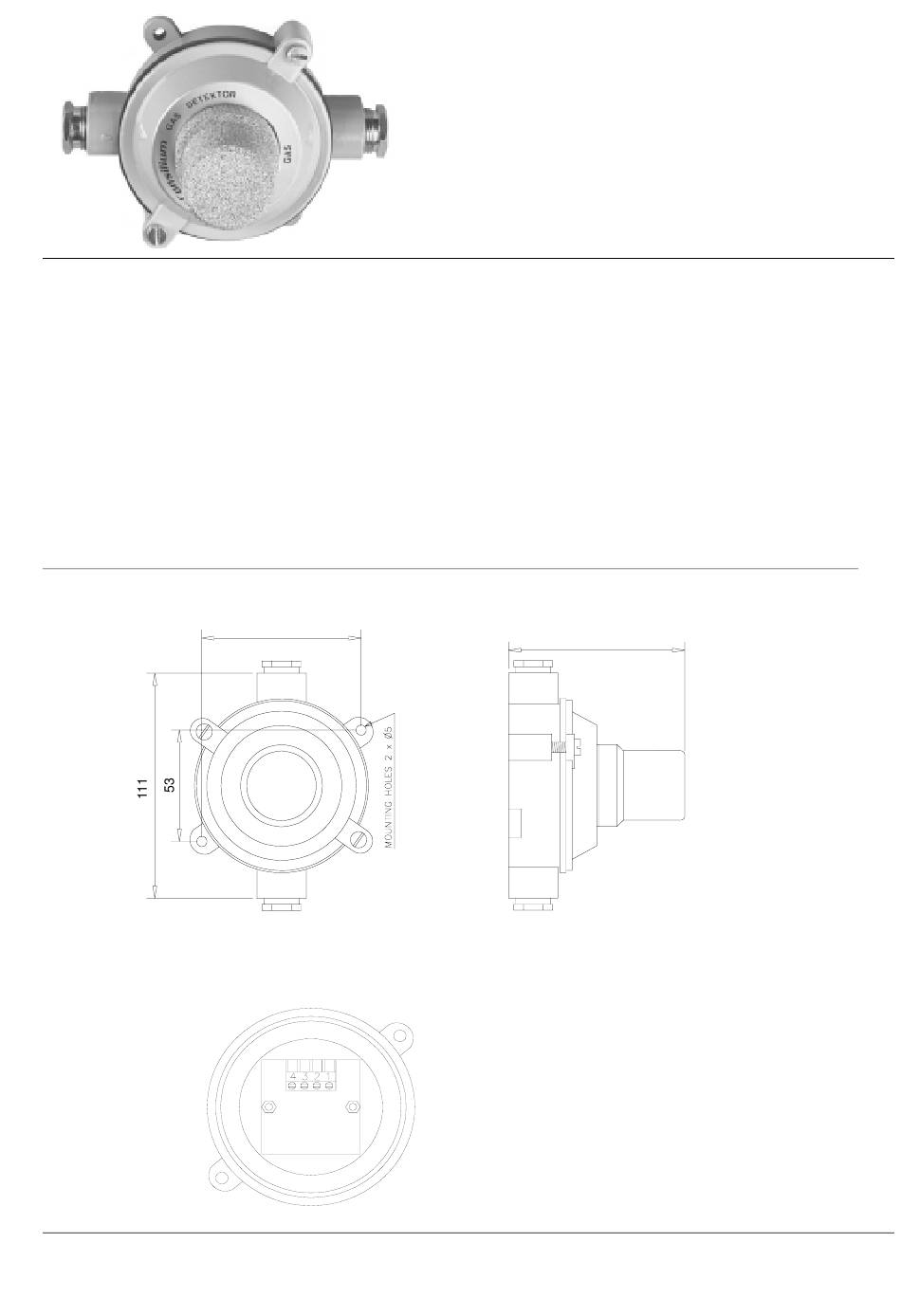

Dimensions (mm)
Connection
Specifications may be subject to change for improvement without prior notice
H:9>474@8
75
Consilium Marine AB
P.O. Box 8763, SE-402 76 Göteborg
Phone +46 31 7107700 Fax +46 31 7107800
www.consilium.se
$,7B4.: ' ( )
System: Gas Alarm System
Technical data
Cable connection to
gas alarm central
Enclosure protection
Cable entry
Temperature range
Relative humidity
Material connection box
Weight
Colour
86
Gas Detector
Part no. 3242
See connection diagram
for gas detector
IP-54
6 - 11 mm
-40° - +85°C
0 - 95%
Varnished aluminium
350 g
Grey box with nickel-
plated sintered housing
Data sheet no: 3242.01.1.E
