  • Page 1 Salwico GD True IR Salwico GS5000 Calibration Instruction...
  • Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Consilium Building Safety AB assumes no legal responsibility for any error or damage resulting from the usage of this document.

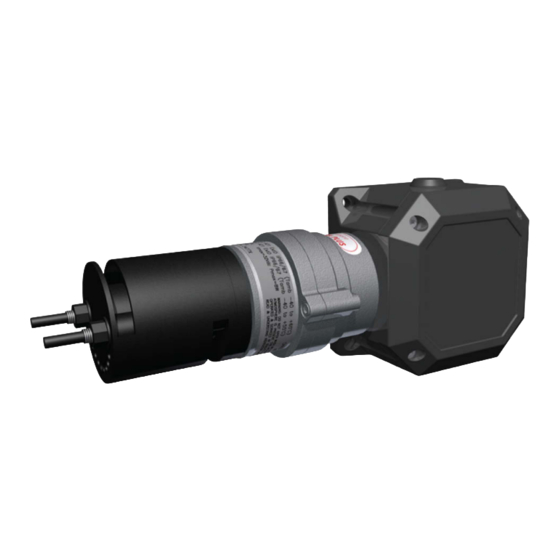

  • Page 3 Calibration Instruction 1 Calibration Instruction for Salwico GD True IR 1 Calibration Instruction for Salwico GD True IR 1.1 Preliminaries This instructions applies to the following products: 5200138-00A, 5200138-01A, 5200204-00A, 5200204-01A and 5200204-02A. Figure 1. Salwico GD FH TRUE IR It is recommended to carry out a gas response check each 6 moths on the gas detector to ensure the correct operation.
  • Page 4 1 Calibration Instruction for Salwico GD True IR Calibration Instruction 1.2 Calibrating the sensor (Zero calibration) Use the arrow keys on the control panel to manoeuvre through the different menus. Press the right arrow key to access the menu tree. Scroll to 4 Gas Detectors and press Continue.
  • Page 5 Calibration Instruction 1 Calibration Instruction for Salwico GD True IR After the gas detector reading has stabilized press Calibrate. You will get a confirmation message that the detector has been successfully calibrated. Press Close to get back to menu Gas Detectors. CAUTION! If a zero gas or compressed air has been used during calibration make...
  • Page 6 1 Calibration Instruction for Salwico GD True IR Calibration Instruction Use the keys to enter calibration gas concentration that will be used during the span calibration; the default value will be half of the detector range. Press Continue to proceed. In the Span calibration menu you will be able to see the real time value of the detector.
  • Page 7 Calibration Instruction 1 Calibration Instruction for Salwico GD True IR 5103024_Salwico GD True IR_Calibration Instruction_I0_EN_2014_C...
  • Page 8             www.consiliumbuildingsafety.com...
