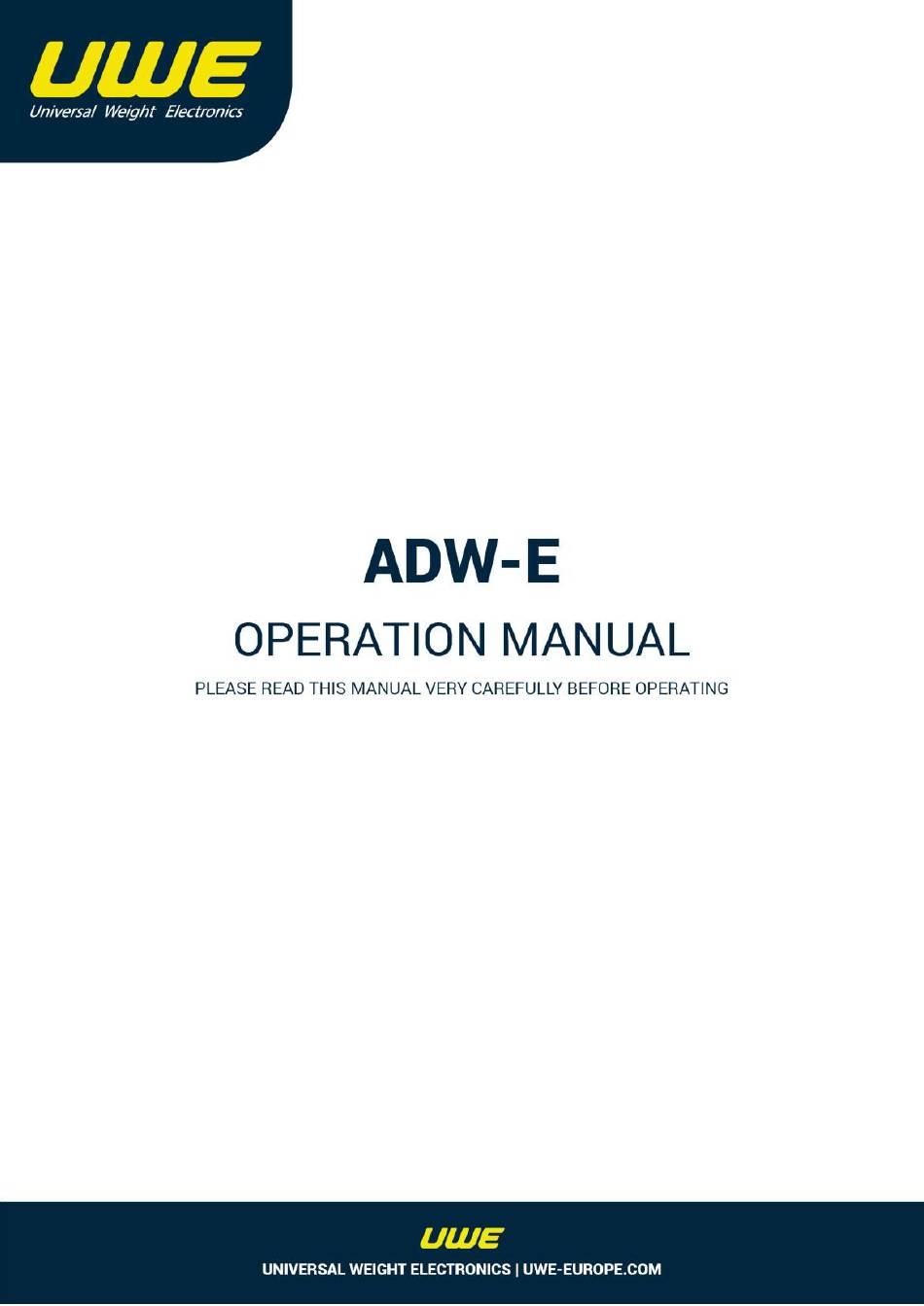

UWE ADW-E Series Operation Manual

Hide thumbs

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADW-E Series and is the answer not in the manual?

Questions and answers

Related Manuals for UWE ADW-E Series

Summary of Contents for UWE ADW-E Series

  • Page 2: Table Of Contents

    CONTENTS CAUTIONS 1. INSTALLATION 2. SPECIFICATIONS 3. KEYBOARD LAYOUT AND DESCRIPTION 4. INITIAL SETUP 5. INSTRUCTION FOR USE 6. TROUBLE SHOOTING 7. DAILY CARE AND MAINTENANCE...
  • Page 3 CAUTIONS 1. This unit is legal for trade only when it is sealed (and/or stamped) and bearing a serial number. Do not attempt to break the seal (or stamp) affixed to this scale or remove the serial number. Contact your dealer for more information and after sales service.
  • Page 4 8. Always apply the battery cap when not in charging. 9. Check desiccant underneath the scale periodically. Should any part of the desiccant turns to pink color, contact your dealer for scale inspection.

  • Page 5: Installation

    1. INSTALLATION Check and make sure that the following accessories are included: This operation manual Scale x 1 Plastic platter x 1 Stainless steel cover x 1 Screw x 1 Rubber cap x 1 Power adaptor x 1 Contact your dealer if any item is missing. FIG 1...
  • Page 6 FIG 2 Locks the plastic platter (FIG 1 A) to the platter holder, with the screw (FIG 1 B) included, and then apply the screw rubber cap (FIG 1 C). Place the stainless steel platter (FIG 1 D) onto the plastic platter. Power on the scale a.
  • Page 7 b. Before first time use, charge the scale for at least 8 hours to ensure the best performance. c. After battery is fully charged, remove adaptor from scale. Apply the battery cap (FIG 2 E) to seal the DC input jack of scale.

  • Page 8: Specifications

    2. SPECIFICATIONS Model No. Capacity Division (e) (Max) OIML Non-OIML ADW-1500E 1500g 0.5g ADW-3000E 3000g 0.5g ADW-6000E 6000g ADW-15KE 15kg 0.005kg 0.002kg ADW-30KE 30kg 0.01kg 0.005kg Tare Range Full Tare Range Power-on ±10% Max Zero Range Zero Range ±2% Max Min.

  • Page 9: Keyboard Layout And Description

    3. KEYBOARD LAYOUT AND DESCRIPTION 1. OFF KEY Press this key to turn scale off 2. ON/ZERO KEY Press this key to: (a) turn scale on or reset display value to zero; (b) move cursor to the right in function setup 3.
  • Page 10 (b) decrease value in function setup 5. LO INDICATOR This indicator appears to indicate the weight detected below the low limit set (Weight check function) 6. OK INDICATOR This indicator appears to indicate the weight detected within the high and low limit range (Weight check function) 7.
  • Page 11 10. NET INDICATOR This indicator appears to indicate the tare function is in operation and weight displayed is net weight 11. LO-BAT INDICATOR When this indicator appears, recharge the scale immediately. Failure to do so may cause unrecoverable damage to the rechargeable battery inside scale 12.

  • Page 12: Initial Setup

    4. INITIAL SETUP 4.1 PLACING THE SCALE In order to obtain an accurate weighing result, the scale must be placed on a strong and level surface. If required, adjust the adjustable feet (FIG 2 F) underneath scale to obtain a level position. Refer to the bubble indicator for leveling condition.
  • Page 13 4.2.2 Select Auto Power Off Setting The scale is equipped with Auto Power Off Function. The scale will power off automatically if it is not used for 4 minutes. Follow the below steps to enable/disable Auto Power Off Function. a. Scale is off b.
  • Page 14 Press TARE four times Scale displays F.5 Press MODE to select baud rate of 4800, 9600, 19200, 38400 Press and hold MODE for 2 seconds to enter transmission protocol setup Press MODE to select protocol of N81 or E71 When the preferred transmission protocol shows on display, press ON/ZERO to confirm and restart the scale or TARE for next function setup NOTE:...
  • Page 15 Press TARE five times Scale displays F.7 Press MODE to select transmission mode “trAn1” or “trAn2” When the preferred data transmission mode shows on display, press ON/ZERO to confirm and restart the scale or TARE for next function setup NOTE: “trAn1”...
  • Page 16 Scale displays F.9 Press MODE to select between “Tr._on” or “Tr.oFF” -To enable Auto Tare Function, press TARE when Tr._on appears -To disable Auto Tare Function, press TARE when Tr.oFF appears Press ON/ZERO to confirm and restart the scale or TARE for next function setup...

  • Page 17: Instruction For Use

    5. INSTRUCTION FOR USE 5.1 BEFORE WEIGHING Make sure that: The plastic platter is screwed firmly and the stainless steel platter cover is placed on the plastic platter. The scale is placed on a level and strong surface. The scale is turned on. The ZERO INDICATOR is on.
  • Page 18 5.3 SELECT WEIGHT UNIT Press MODE to shift between metric or avoirdupois weight units. The weight unit used before power off would be employed when the scale is turned on again. NOTE: To comply with the law of certain countries and certain approval requirements, the avoirdupois weight units may be disabled.
  • Page 19 Remove all loads from platter. Turn scale on. Scale displays zero weight; if not, press ON/ZERO. Press and hold ON/ZERO. Scale displays: -L._oFF = Function enable -L1._on = Function disable. 5.5 SET DISPLAYED VALUE TO ZERO WHEN UNLOADED Press ON/ZERO can eliminate a positive or negative value when scale is not at its zero.
  • Page 20 5.6 TARE OFF THE WEIGHT OF A CONTAINER When a container is used, follow the below steps to manually tare off the weight of container and get the net weight. a. Remove all loads away from platter b. Make sure that the ZERO INDICATOR is on. c.
  • Page 21 5.7 CLEAR THE TARE FUNCTION Remove all loads from platter The tare effect will be cancelled: -Automatically if automatic tare function is employed, or -By pressing TARE After TARE is pressed, the NET INDICATOR would disappear. 5.8 WEIGHT CHECK FUNCTION This scale is equipped with Weight Check Function.
  • Page 22 When the require high weight limit attained, press and hold ON/ZERO, then press TARE The LO INDICATOR appears and the cursor is flashing, scale is now in lower weight limit setup Utilize MODE, TARE and ON/ZERO to set the required low weight limit When the require low weight limit attained, press and hold ON/ZERO, then press TARE...
  • Page 23 NOTE: Weight Check Function will not valid when the weight unit engaged (e.g. lb) is different from the original weight unit programmed under (e.g. gram). Weight Check Function will not valid when the weight is less than minimum load. Please refer to SPECIFICATION for minimum load of each capacity.
  • Page 24 5.9 EXTENDED DISPLAY This scale is equipped with extended display function for reference purpose only. To activate the function, press and hold MODE for 2 seconds and display will flash the extended digit for 5 seconds before return to normal. 5.11 RECHARGE THE SCALE The scale is equipped with a built-in rechargeable battery.

  • Page 25: Trouble Shooting

    6. TROUBLE SHOOTING Syndrome Scale cannot be turned on Check: Is the scale charged? Action: Recharge the scale for at least 8 hours before first time use or plug in the power adaptor before power on the scale. Check Is the power adaptor inserted properly into both the electricity outlet and the DC inlet of scale.
  • Page 26 Check Is there anything obstructing the platter? Action Remove all obstacles. Syndrome Weighing result is not accurate Check Is the scale placed in a level condition? Action Adjust the adjustable feet to a level condition. Check Is the scale affected by airflow, vibration or RFI? Action: Place the scale away from all disturbances.

  • Page 27: Daily Care And Maintenance

    7. DAILY CARE AND MAINTENANCE Clean the scale with a soft and damp cloth. If necessary, apply a mild detergent. Do not use any harsh, abrasive material, acetone, volatile solvent, thinner or alcohol for cleaning. Verify the accuracy of scale periodically. Re-calibrate the scale if necessary.
  • Page 28 KONFORMITÄTSERKLÄRUNG Declaration of conformity Déclaration de conformité Die ichtselbsttätigen Waage The non-automatic weighing instrument L'instrument de pesage à fonctionnement non automatique Hersteller: Universal Weight Enterprise Manufacturer: Fabricant Co., Ltd. Typ/Modell: ADW-E Type/Model: Type/modèle: Nr. der EG-Bauartzulassung (gegebenen falls): T6160 No of the EC type-approval certificate (where applicable): Nº...

This manual is also suitable for:

Adw-1500eAdw-3000eAdw-6000eAdw-15keAdw-30ke
