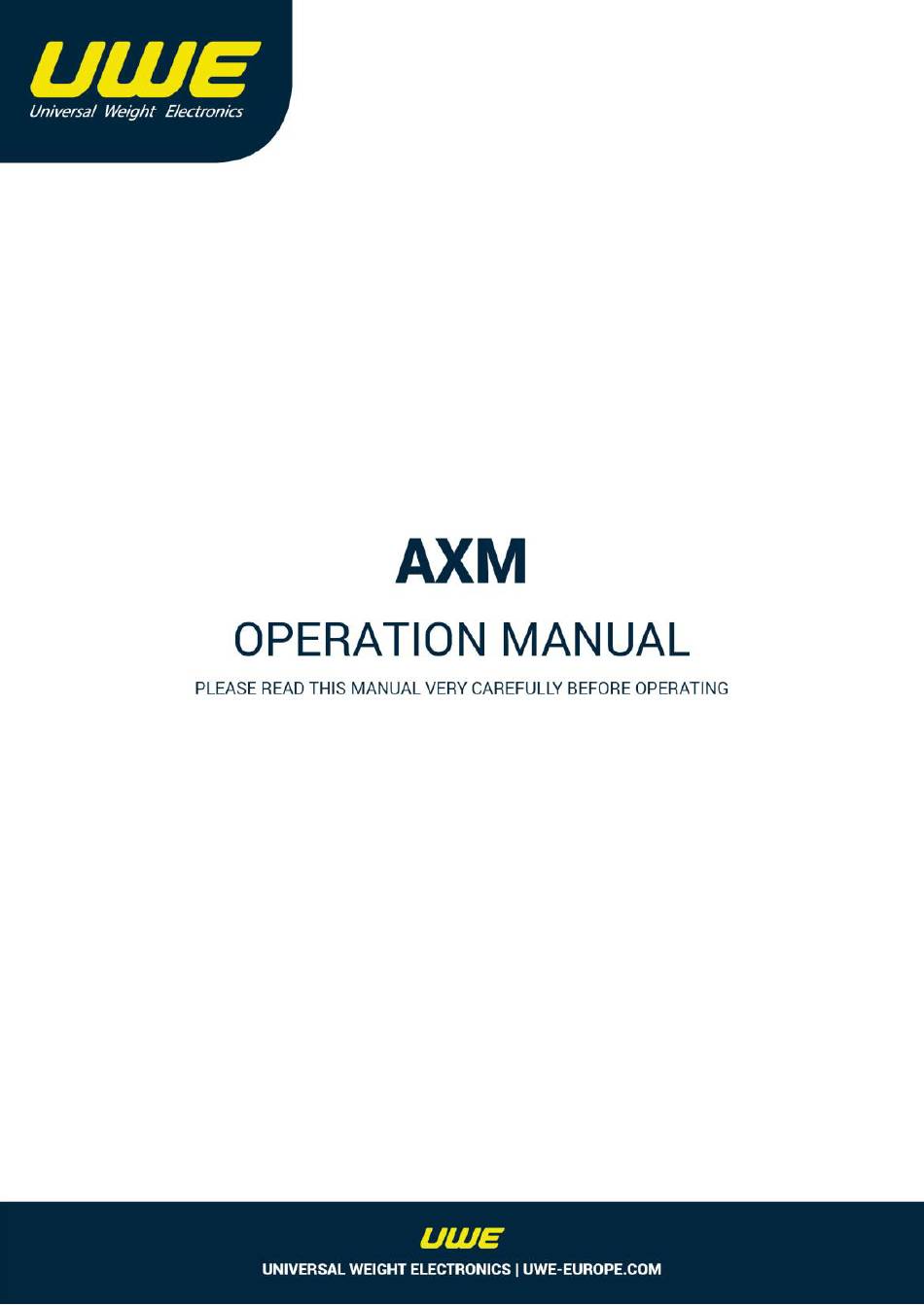

UWE AXM Series Operation Manual

Hide thumbs

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the AXM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UWE AXM Series

Summary of Contents for UWE AXM Series

  • Page 2: Table Of Contents

    CONTENTS CAUTIONS 1. INSTALLATION 2. SPECIFICATIONS 3. KEYBOARD LAYOUT AND DESCRIPTION 4. INITIAL SETUP 5. INSTRUCTION FOR USE 6. TROUBLE SHOOTING 7. DAILY CARE AND MAINTENANCE...
  • Page 3 CAUTIONS 1. This unit is legal for trade only when it is sealed (and/or stamped) and bearing a serial number. Do not attempt to break the seal (or stamp) affixed to this scale or remove the serial number. Contact your dealer for more information and after sales service.

  • Page 4: Installation

    1. INSTALLATION Check and make sure that the following accessories are included: Operation Manual x 1 Scale x 1 Plastic platter x 1 Stainless steel cover x 1 (Optional) Power adaptor x 1 Dust Cover x 1 Contact your dealer if any item is missing. Place the stainless steel platter (if purchased) onto the plastic platter.

  • Page 5: Specifications

    2. SPECIFICATIONS Model No. Capacity Division (e) (Max) OIML Non-OIML Extended AXM-1500 1500g 0.5g 0.2g 0.05g AXM-3000 3000g 0.5g 0.1g AXM-6000 6000g 0.2g AXM-15K 15kg 0.005kg 0.002kg 0.0005kg AXM-30K 30kg 0.01kg 0.005kg 0.001kg Tare Range Full Tare Range Power-on ±10% Max Zero Range Zero Range ±2% Max...

  • Page 6: Keyboard Layout And Description

    3. KEYBOARD LAYOUT AND DESCRIPTION OFF KEY Press this key to turn scale off ON/ZERO KEY Press this key to turn scale on or set weight to zero MODE KEY Press this key to shift among different weight units and/or turn backlight on/off TARE KEY Press this key to tare off the weight of a container WEIGHT UNIT INDICATOR...
  • Page 7 ZERO INDICATOR This indicator appears to indicate a zero weight status NET INDICATOR This indicator appears to indicate the tare function is in operation and weight displayed is net weight LO-BAT INDICATOR When this indicator appears, recharge the scale immediately. Failure to do so may cause unrecoverable damage to the rechargeable battery inside scale NOTE: The charging indicator is located on the left side of...

  • Page 8: Initial Setup

    4. INITIAL SETUP 4.1 PLACING THE SCALE In order to obtain an accurate weighing result, the scale must be placed on a strong and level surface. If required, adjust the adjustable feet underneath scale to obtain a level position. Refer to the bubble indicator for leveling condition.
  • Page 9 4.2.2 Select Auto Power Off Setting The scale is equipped with Auto Power Off Function. The scale will power off automatically if it is not used for 4 minutes. Follow the below steps to enable/disable Auto Power Off Function. Scale is off Press and hold TARE, then press ON/ZERO Scale displays F.1 Press TARE three times...
  • Page 10 Press TARE four times Scale displays F.5 Press MODE to select baud rate of 4800, 9600 and 19200 Press and hold MODE for 2 seconds to enter transmission protocol setup Press MODE to select protocol of N81 or E71 When the preferred transmission protocol shows on display, press ON/ZERO to confirm and restart the scale or TARE for next function setup NOTE:...
  • Page 11 Press TARE five times Scale displays F.7 Press MODE to select transmission mode “trAn1” or “trAn2” When the preferred data transmission mode shows on display, press ON/ZERO to confirm and restart the scale or TARE for next function setup NOTE: “trAn1”...
  • Page 12 Scale displays F.9 Press MODE to select between “Tr_on” or “TroFF” -To enable Auto Tare Function, press TARE when Tr_on appears -To disable Auto Tare Function, press TARE when TroFF appears Press ON/ZERO to confirm and restart the scale or TARE for next function setup...

  • Page 13: Instruction For Use

    5. INSTRUCTION FOR USE 5.1 BEFORE WEIGHING Make sure that: The plastic platter is placed correctly on top of load receptor and the stainless steel platter cover is placed on the plastic platter. The scale is placed on a level and strong surface. The scale is turned on.
  • Page 14 5.3 SELECT WEIGHT UNIT Press MODE to shift between metric or avoirdupois weight units. The weight unit used before power off would be employed when the scale is turned on again. NOTE: To comply with the law of certain countries and certain approval requirements, the avoirdupois weight units may be disabled.
  • Page 15 5.6 SET DISPLAYED VALUE TO ZERO WHEN UNLOADED By pressing ON/ZERO, a positive or negative weight displayed will be set to zero and ZERO INDICATOR appears. Refer to SPECIFICATIONS for maximum zero range. NOTE: -When scale is set at OIML and application is legal for trade.
  • Page 16 After TARE is pressed, the NET INDICATOR would appear. Refer to 5.2 for weighing procedures. Weight displayed under is the net weight of the subject matter. Refer to SPECIFICATIONS for maximum tare range. NOTE: - When scale is set at OIML and application is legal for trade.
  • Page 17 5.9 EXTENDED DISPLAY This scale is equipped with extended display function for reference purpose only. To activate the function, press and hold MODE for 2 seconds and display will flash the extended digit for 5 seconds before return to normal. 5.10 RECHARGE THE SCALE The scale is equipped with a built-in rechargeable battery.

  • Page 18: Trouble Shooting

    6. TROUBLE SHOOTING Syndrome Scale cannot be turned on Check: Is the scale charged? Action: Recharge the scale for at least 8 hours before first time use or plug in the power adaptor before power on the scale. Check Is the power adaptor inserted properly into both the electricity outlet and the DC inlet of scale.
  • Page 19 Syndrome Rated capacity cannot be reached Check Is the NET INDICATOR on? Action: Turn the scale off. Remove all loads from platter and turn on again. Check Is there anything obstructing the platter? Action Remove all obstacles. Syndrome Weighing result is not accurate Check Is the scale placed in a level condition? Action...

  • Page 20: Daily Care And Maintenance

    7. DAILY CARE AND MAINTENANCE Clean the scale with a soft and damp cloth. If necessary, apply a mild detergent. Do not use any harsh, abrasive material, acetone, volatile solvent, thinner or alcohol for cleaning. Verify the accuracy of scale periodically. Re-calibrate the scale if necessary.
  • Page 21 KONFORMITÄTSERKLÄRUNG Declaration of conformity Déclaration de conformité Die ichtselbsttätigen Waage The non-automatic weighing instrument L'instrument de pesage à fonctionnement non automatique Hersteller: Universal Weight Enterprise Manufacturer: Fabricant Co., Ltd. Typ/Modell: Type/Model: Type/modèle: Nr. der EG-Bauartzulassung (gegebenen falls): T6155 No of the EC type-approval certificate (where applicable): Nº...

This manual is also suitable for:

Axm-1500Axm-3000Axm-6000Axm-15kAxm-30k
