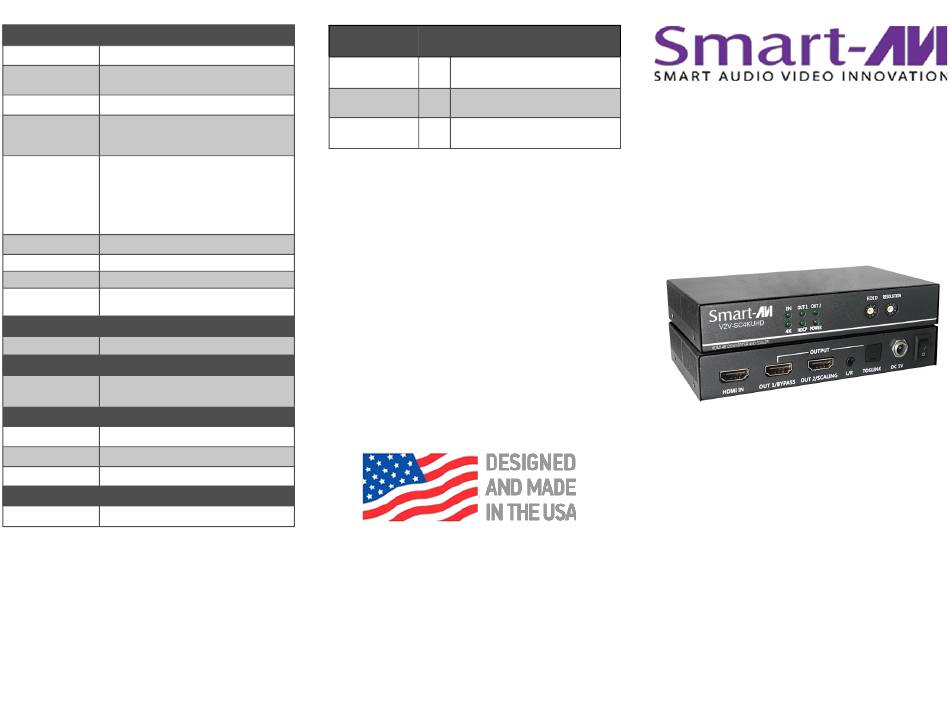

SMART-AVI V2V-SC4KUHD Quick Start Manual

TECHNICAL SPECIFICATIONS
VIDEO
Format HDMI 4K Converter and Scaler
Maximum Pixel
165 MHz
Clock
Input Interface (1) HDMI (Type A female connector)
(2) HDMI (Type A female connector);
Output Interface (1) TOSLINK, Spdif audio output;
(1) 3.5mm jacket, L/R audio output
640 x 480@60Hz, 800x600@60Hz,
1024x768@ 60Hz, 1280x768@60Hz,
1280x800@60Hz, 1280x960@60Hz,
Resolution
1280x1024@60Hz, 1360x768@60Hz,
1366x768@60Hz, 1400x1050@60Hz,
1440x900@60Hz, 1600x900@60Hz,
5 volts p-p (TTL)
DDC
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable
Up to 20 ft.
Length
AUDIO
Output (1) 3.5 mm Stereo Audio
POWER
Power 12V DC, 2A power adapter with center-
Requirements pin positive polarity
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CONTROL
Front Panel Push Buttons with LED indicators
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
HDMI 4K Converter and Scaler.
V2V-SC4KUHD-S 1
12V DC, 2A power adapter with
PS5VD3A 1
center-pin positive polarity.
1 Quick Start Guide
NOTICE
The information contained in this document is subject
to change without notice. SMART-AVI makes no war-
ranty of any kind with regard to this material, includ-
ing but not limited to, implied warranties of merchant-
ability and fitness for particular purpose. SMART-AVI
will not be liable for errors contained herein or for
incidental or consequential damages in connection
with the furnishing, performance or use of this materi-
al. No part of this document may be photocopied,
reproduced, or translated into another language with-
out prior written consent from SMART-AVI, Inc.
Toll Free: (800) AVI-2123
Phone: (702) 800-0005
2455 W. Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
smartavi.com

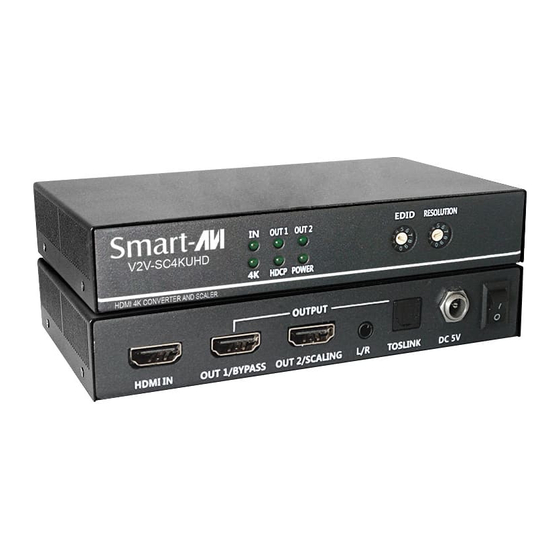

V2V-SC4KUHD
HDMI 4K Converter
and Scaler
HDMI 4K CONVERTER
AND SCALER
Quick Start Guide
A full Manual can be downloaded from
www.smartavi.com/V2V-SC4KUHD/
