SLIDEWHIZZER SW-04 Assembly Instructions Manual page 7

NOTE: Please ensure that the slide pieces connect without any gaps.

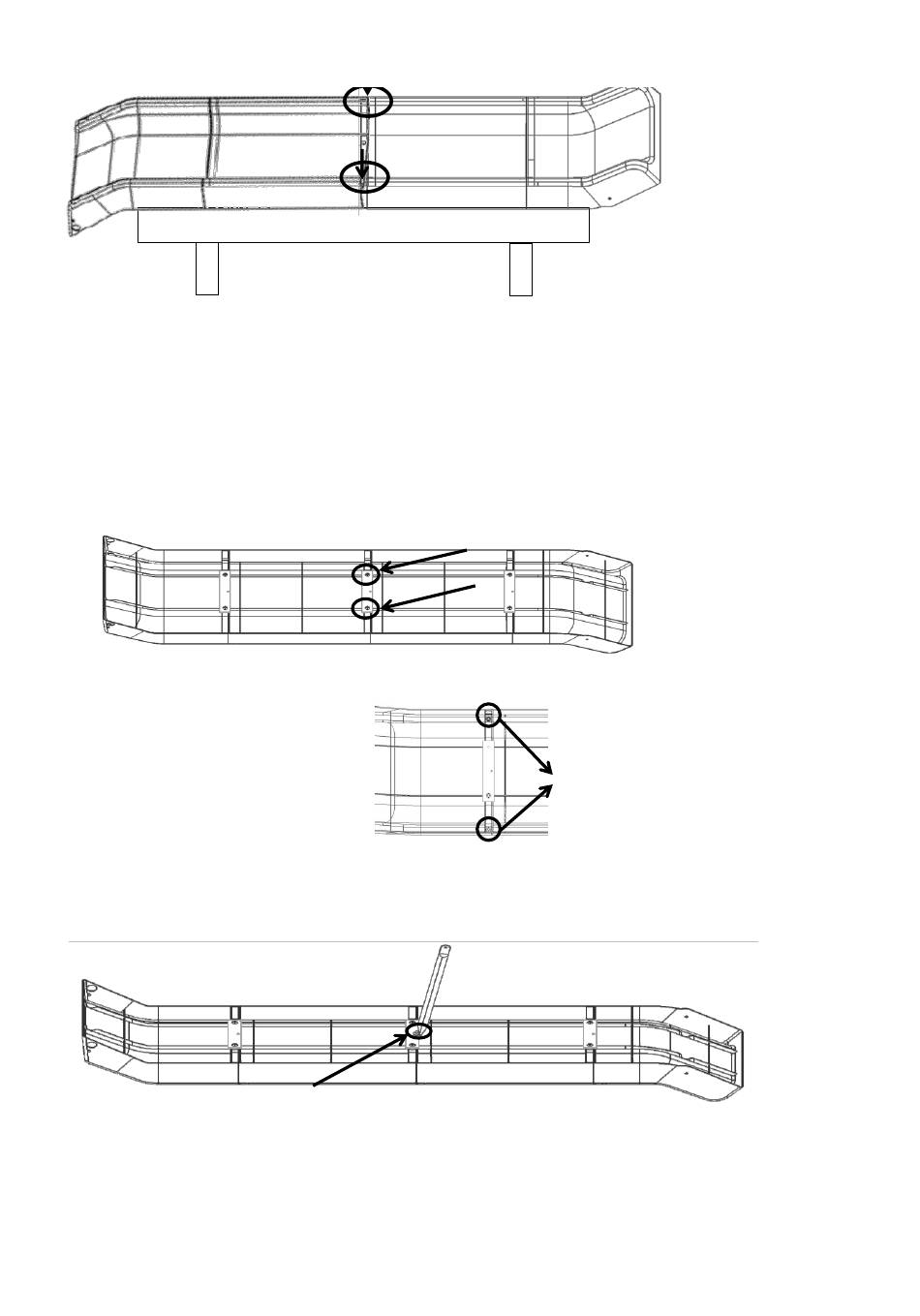

3 -3. Fasten the slide chute of Step 1 and Step 2 by using the steel plate (X) x 1
and bolt (Q) x 2. (Figure 2)
3 - 4. Bolt the edge of the slide chute of Step 1 and Step 2 by using bolt (M) x 2.
(Figure 3)
Step 4 Assembling the support bar
4 - 1. Fasten the support bar (Y) to the middle screw hole of the steel plate (X) of Step 3
by using the bolt (C) x 1.
Step 5 Assembling the Top/Bottom handrail and
the ladder
FLAT TABLE
Page 7 of 11
(Figure 2)
(Figure 3)
