SLIDEWHIZZER SW-04 Assembly Instructions Manual page 6

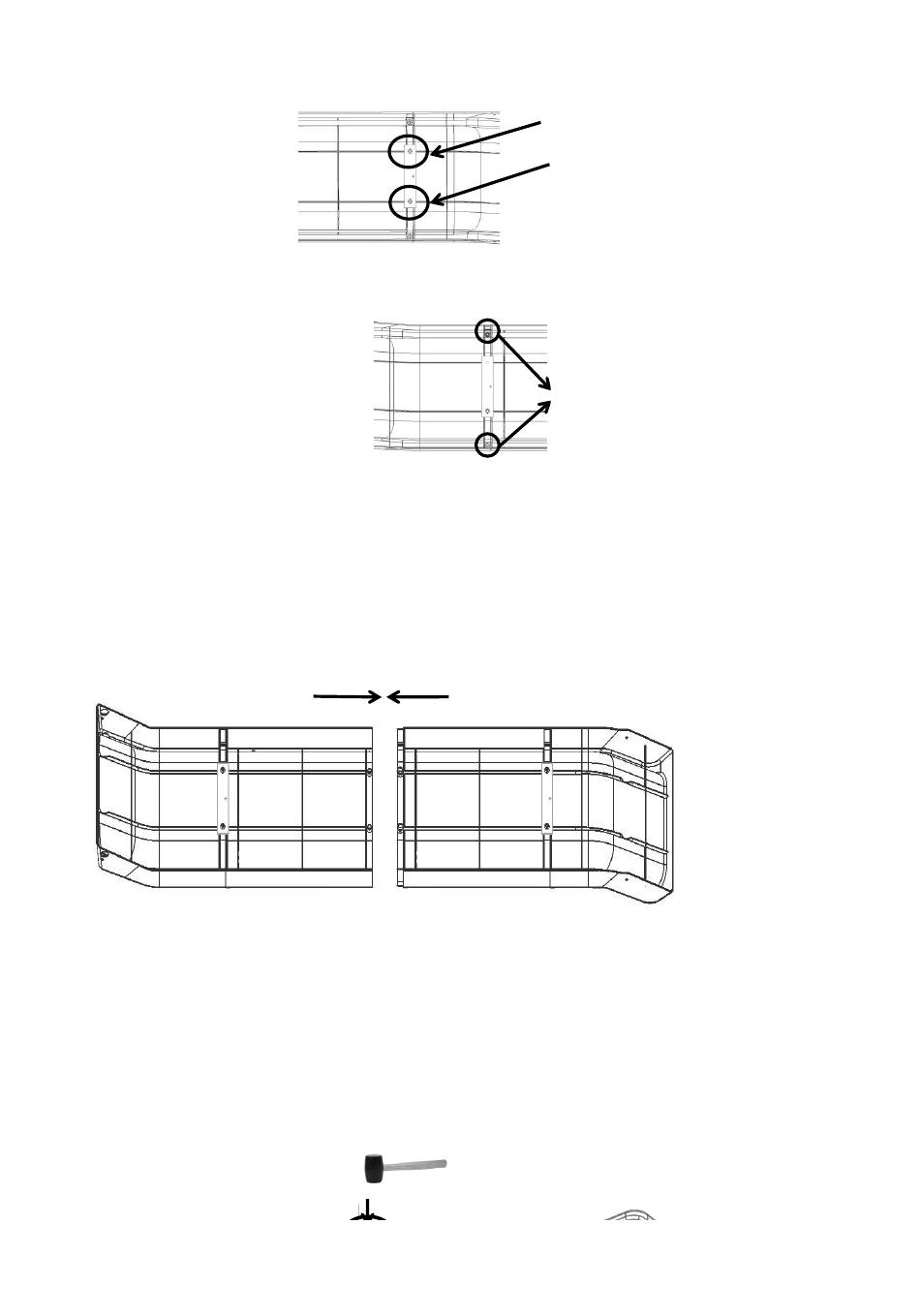

(Figure 3)
2 - 4. Bolt the edge of the Middle slide chute (V) and the Bottom slide chute (W)
by using bolt (M) x 2. (Figure 4)
Step 3 Complete the slide chute assembly
3 -1. Turn the slide chute of Step 1 and Step 2 to the back side and connect them
by embedding tongue-and-groove joint firmly. (Figure 1)
Slide chute of Step 1
NOTE: The easiest way to install the two chute pieces is to lay both of them flat on
a table, with the backside facing up -- towards you. Connect the pieces together as
closely as you can. With your heel of your hand, press down on the connection
point until there is no gap. Doing this on a table is best, as you can remain
standing and give more pressure to the heel of your hand, as needed.
3 -2. Turn the Middle slide chute (V) onto the logo side. Use a rubber mallet to
strike on the edge of connection.
Slide chute of Step 2
(Figure 1)
(Figure 3)
(Figure 4)
Page 6 of 11
