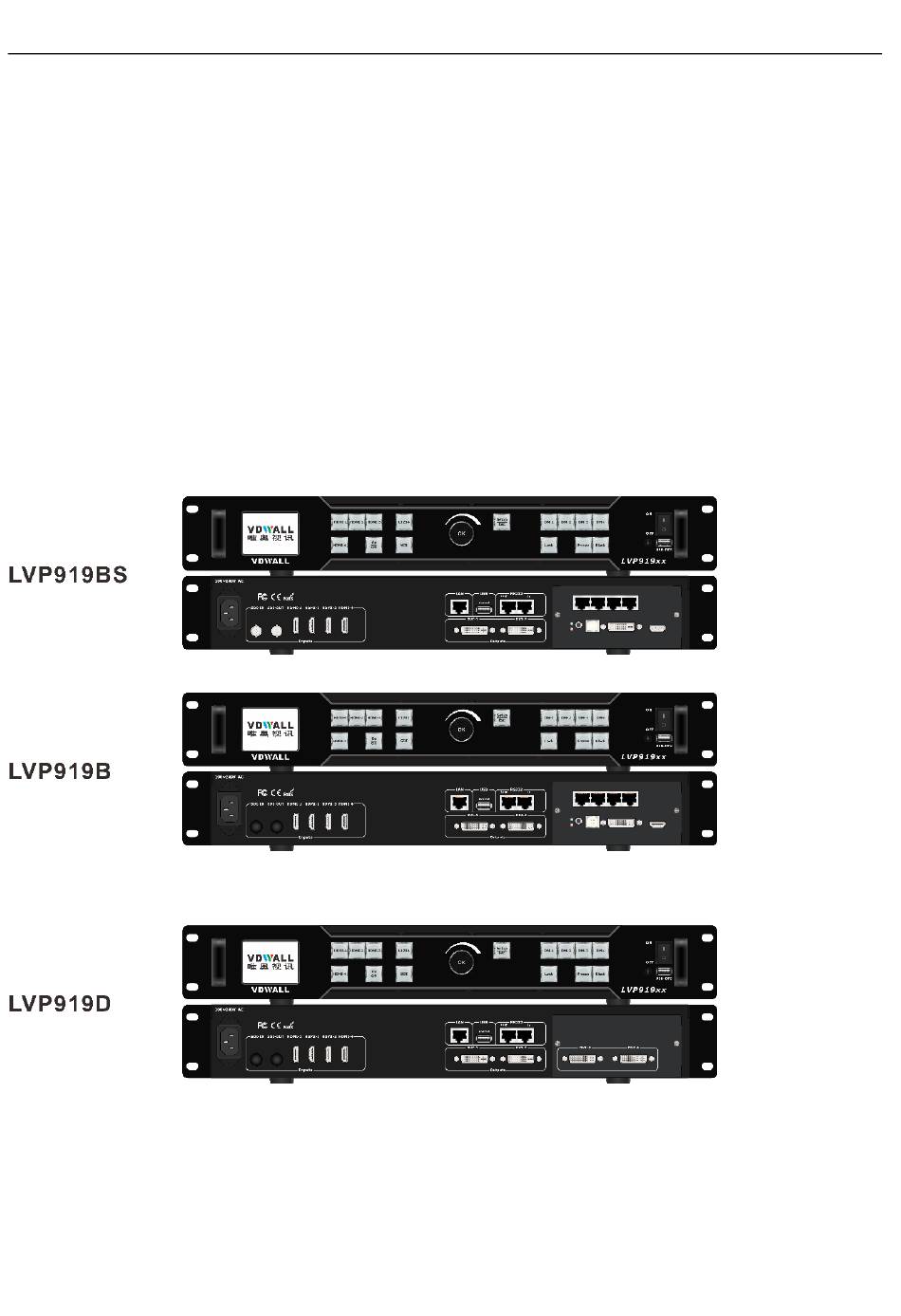

- Page 1 LVP919XX User Manual LED Multi-Image Processor --- LVP919xx User Manual V1.0...
-
Page 2: Table Of Contents
E-2）Output Image Setup ..........................17 E-3）Input Video Setup ..........................23 E-4）Window Image Setup ........................... 24 E-5）Image Quality ............................26 E-6）LED Control System ..........................28 E-7）LAN Configuration ..........................29 E-8）Device System ............................. 30 Appendix：Modification Record ............................31 SHENZHEN VDWALL CO., LTD... -
Page 3: Chapter 1：Safety Precautions
To prevent rupture or damage of power cords, please handle and keep them properly. Please immediately unplug power cord and have the device repaired, when 1. Liquid splashes to the device. 2. The device is dropped down or cabinet is damaged. 3. Obvious malpractice is found or performance degrades. SHENZHEN VDWALL CO., LTD... -
Page 4: Chapter 2：Accessory List
(LED sending card is optional accessory) 0.5M DVI cable 2-4 pcs 1.5m Power Cable x 1 according to quantity of 1.5m HDMI Cable outputs USB Disk x 1 1.5m USB Cable x 1 User Manual x 1 SHENZHEN VDWALL CO., LTD... -
Page 5: Chapter 3：Hardware Connection
C-1）Signal Port Rear panel signal port Communication & Control Video Input Video Output Sending Card(Optional) Picture 1-1 LVP919BS Communication & Control Video Input Video Output Picture 1-2 LVP919D Front panel control port USB Firmware Update Picture 2 SHENZHEN VDWALL CO., LTD... -
Page 6: Port Description
TCP/IP Ethernet control port Serial control port，RS232 electrical level，connect to PC RS232 In RS232 port Rear Panel RS 232 Cascading output port，facilitate multiple processors RS232 Out centralized control USB-Control USB control port, usually use this for software control SHENZHEN VDWALL CO., LTD... -
Page 7: Front Panel Button Description
One key black screen, press Black button, button indicator will light up, output full black image；in image black mode，press Black button to exit black screen mode and button indicator will light off SHENZHEN VDWALL CO., LTD... -
Page 8: Signal Connecting
LVP919XX User Manual C-4）Signal Connection Picture 4 Picture 4 LVP919BS Connection Diagram SHENZHEN VDWALL CO., LTD... -
Page 9: Technical Specification
≤ 3936， (LVP919D) defined height ≤ 3936 Other 100-240VAC 50/60Hz Input Voltage Power Consumption 0-50℃ Ambient Temperature 15-90% Ambient Humidity 482.6(L) x 244(W) x 44(H) mm Dimension 535（L）x 315（W）x125（H）mm Packing Dimension G.W：5.2Kg, N.W：3.7Kg Weight SHENZHEN VDWALL CO., LTD... -
Page 10: Installation Dimension
LVP919XX User Manual C-6）Installation Dimension Picture 5 SHENZHEN VDWALL CO., LTD... -
Page 11: Chapter 4：Processor Button Control
5） The last line shows the output image brightness, as shown in the figure above, the brightness is 100. Below actions can be operated under user operation state: 1) Select input signal 2) Operate the layer display mode, adjust the brightness; SHENZHEN VDWALL CO., LTD... -
Page 12: Input Signal Selection
Knob to menu 9.2】Copy Display Mode，select source mode and target mode separately，press OK to apply. 9.2．Copy Display Mode 1】Source Mode DM-1 DM-2 DM-3 DM-4 DM-5 DM-6 DM-7 DM-8 2】Target Mode DM-1 DM-2 DM-3 DM-4 DM-5 DM-6 DM-7 DM-8 【OK】to Copy Exit（Or【Esc】） SHENZHEN VDWALL CO., LTD... - Page 13 Press DM+ to enter mode operation menu，select 9.4】Display Mode Recover，press OK to apply. 9.4 Display Mode Recover 1】Source Mode DM-1 DM-2 DM-3 DM-4 DM-5 DM-6 DM-7 DM-8 2】Target Mode DM-1 DM-2 DM-3 DM-4 DM-5 DM-6 DM-7 DM-8 【OK】to Recover Exit（Or【Esc】） SHENZHEN VDWALL CO., LTD...
-
Page 14: Other Operation
Press Black button，Black button light indicator on，output one full black image，press Black button again or reboot processor，return to normal output image. D-3-3）Image Froze Press Freeze button，Freeze button light indicator on，activate image freeze，press Freeze or reboot processor，return to normal output image. SHENZHEN VDWALL CO., LTD... - Page 15 In Port Signal Status Img.Layer Source HDMI-1 1920x1080_60 L1 On HDMI-1 HDMI-2 1920x1080_60 L2 On HDMI-2 HDMI-3 1920x1080_60 L3 On HDMI-4 HDMI-4 No Signal No SDI Module L4 On None Image Brightness default=100 Image Brightness 范围[0-100] SHENZHEN VDWALL CO., LTD...
-
Page 16: Chapter 5: Adjustment And Setup
Knob to select language, press OK to confirm and apply. Adjust and setup 1】语言/ Language English 2】Output Image >> 3】Input Video >> 4】Display Layer >> 5】Image Enhance >> 6】LED Control System >> 7】LAN Config >> 8】Device System >> SHENZHEN VDWALL CO., LTD... -
Page 17: Output Image Setup
1） output port can’t exceed this resolution； 2） Besides preset output resolution，LVP919xx support custom output resolution. After select custom output resolution，need to configure 2.1.1）H-Active(Width), 2.1.2）V-Active(Height) SHENZHEN VDWALL CO., LTD... - Page 18 LED1= 1280X1408 LED2= 1152X1408 LVP919B output port DVI-1/ DVI-2 connect to LED sender BLT04 ， LED Sender：BLT04 drive LED1 and LED2 separately LVP919B output resolution DVI-1 DVI-2 1392x1436_60Hz Picture 6 SHENZHEN VDWALL CO., LTD Picture 10 Picture 10...
- Page 19 3） Picture 7 is DVI-1 unit screen Fast Mosaic setup. Picture 8 is DVI-2 unit screen Fast Mosaic setup，select 【OK】 to Set，then 2.4. Output Image Size And Position and 2. 5. Crop The Input Image parameters will be configured automatically. SHENZHEN VDWALL CO., LTD...
- Page 20 Picture 8 4） On few occasions, fine tuning are required after implementation of Fact mosaic, enter menu 2.4. Output Image Size And Position and 2. 5. Crop The Input Image，manually fine tune input and output image parameters. SHENZHEN VDWALL CO., LTD...
- Page 21 2.4. Output Image Size And Position 1】Hori. Start ->0 2】Width 1280 ->1280 3】Vert. Start ->0 4】Height 1408 ->1408 Exit（or【Esc】） Description： 1） Output image size&position must be within output resolution 2） As picture 6，DVI-1 output image width =1280 height =1408 SHENZHEN VDWALL CO., LTD...
- Page 22 -> 4】Crop Height 1080 ->1080 Exit（or【Esc】） Description： LVP919xx output ports could freely crop input image size&position within input resolution； 1） 2） As picture 6，DVI-2 input image cropping：Input Hori.Start=1010, Input Width = 910，Input Vert.Start=0, Input Height =1080. SHENZHEN VDWALL CO., LTD...
-
Page 23: Input Video Setup
LVP919XX User Manual E-3）Input Video Setup This menu is invalid to LVP919xx. SHENZHEN VDWALL CO., LTD... -
Page 24: Window Image Setup
2432 LED total resolution=2432x1408， each layer size&position must be within this range 1408 As left picture，L3 layer position ：( 640,480 ) , size：1200x600 1200 Picture 9 Setup Process： Press（DM-1,DM-2,DM-3,DM+）button to select window display mode； SHENZHEN VDWALL CO., LTD... - Page 25 Open/Close layer frame，if enable window 4.8.2）Enable frame, set to On 4.8.3）Frame Color Red Frame color option，adjust red,green,blue 4.8.4） Frame Color Green channel to realize different display color 4.8.5）Frame Color Blue 4.8.6）Frame Size Frame thickness，range from 0~255 SHENZHEN VDWALL CO., LTD...
-
Page 26: Image Quality
RGB channel. Following table is description. Menu Item Description Brightness adjustment，brightness R/G/B channel range： 5.1 Brightness 0~512，default value 255. Black field black background adjustment, Black Bias R/G/B 5.2 Black Level Bias channel range：-255~255，default value 0. SHENZHEN VDWALL CO., LTD... - Page 27 5.3.4 S-Space Source space，includes: HD709，NTSC，sRGB，L1L，Adobe， UHD-2020，Apple，DCT-P3 and actual measure 5.3.5 T-White Target white point，D50,D65 5.3.6 T-Space Target space，includes DCT-P3，Adobe，sRGB，UHD-2020，Apple， HD709 and actual measure 5.3.7 Measure When the color space option is actual measure，manually configure associated value. SHENZHEN VDWALL CO., LTD...
-
Page 28: Led Control System
LVP919XX User Manual E-6）LED Control System LVP919xx don’t provide internal sending card，menu is invalid. SHENZHEN VDWALL CO., LTD... -
Page 29: Lan Configuration
Knob to enter menu setup，rotate Knob to adjust parameter，press OK to confirm and apply. When press Setup to exit communication setup, processor LCD screen will prompt LAN parameters are changed and need reboot，reboot accordingly to activate new setup. SHENZHEN VDWALL CO., LTD... -
Page 30: Device System
【OK】 to Set Exit（or【Esc】） E-8-2） Initialize Device 3】 Initialize Device could reset processor configuration and initialize processor to factory default mode. Under this menu, press OK button，system will prompt device reset, press OK again to confirm and apply. SHENZHEN VDWALL CO., LTD... -
Page 31: Appendix：modification Record
LVP919XX User Manual Appendix：Modification Record Version Date Description Edit V1.0 2024.8 First Release SHENZHEN VDWALL CO., LTD...
