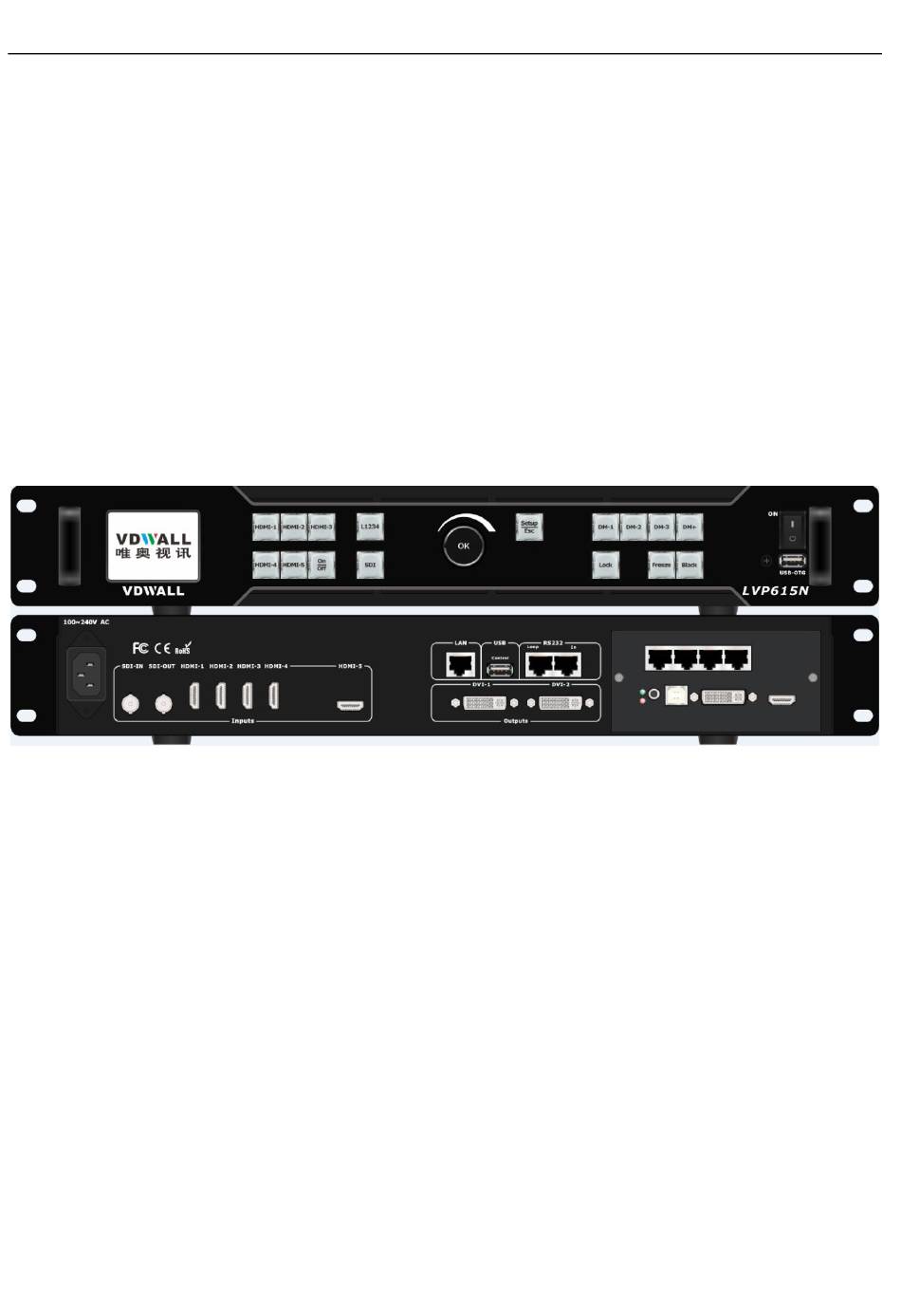

- Page 1 LVP615N Series User Manual LVP615N Series LED Multi-Image Processor --- User Manual V1.0...
-
Page 2: Table Of Contents
LVP615N Series User Manual Content Ⅰ Safety Precautions ............................3 Ⅱ Accessory Package............................4 Ⅲ Hardware And Connection ..........................5 C-1）Signal Port Illustration ..........................5 C-2）Port Description ............................. 6 C-3）Front Panel Button Description ......................7 C-4）Signal Connection ..........................8 C-5）Technical Specification .......................... 9 C-6）Installation Dimension .......................... -
Page 3: Ⅰ Safety Precautions
LVP615N Series User Manual Ⅰ Safety Precautions Danger ! There is high voltage in the processor, to prevent any unexpected hazard, please do not open the cover of the device, unless you are a maintenance personnel. Warning ! 1) This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device. -
Page 4: Ⅱ Accessory Package
LVP615N Series User Manual Ⅱ Accessory Package Please unpack the product with care, and then check whether all the following items are included in the package. The accessories supplied with this product may differ from the following pictures, but they are applicable for the regions where you live. -
Page 5: Ⅲ Hardware And Connection
LVP615N Series User Manual Ⅲ Hardware And Connection C-1）Signal Port Illustration Rear panel signal port Communication & Control Video Input Video Output Sending Card（Optional） Picture 1 Front panel signal port Firmware Update Port Picture 2 SHENZHEN VDWALL CO., LTD... -
Page 6: Port Description
LVP615N Series User Manual C-2）Port Description C-2-1）Video Input Port LVP615N supports HDMI input, described as following table： Port Description HDMI-1, HDMI-2, HDMI1.4b digital video input（compatible with 2K 60Hz and lower HDMI-3, HDMI-4, signal） HDMI-5 Optional input module，supports HD-SDI/3G-SDI signal C-2-2）Image Output Port LVP615N supports 2 DVI outputs. -
Page 7: Front Panel Button Description
LVP615N Series User Manual C-3）Front Panel Button Description Knob+OK Display Mode Input Signal Selection&Switch Setup, Return Other Function Picture 3 Button Description Signal switch button, L1234 is layer switch button, press this button continuously to switch image layer，when selected layer is L1 or L2, press HDMI-1, HDMI-2, HDMI-3, HDMI-4 button to switch layer signal，On/Off... -
Page 8: Signal Connection
LVP615N Series User Manual C-4）Signal Connection Picture 4 SHENZHEN VDWALL CO., LTD... -
Page 9: Technical Specification
LVP615N Series User Manual C-5）Technical Specification Input Port Specification Amount Standard Resolution Color Depth HDMI-1/2 CEA_861D ， HDMI1.4b /3/4 ≤ 1920×1080p_60Hz /YCbCr420 8 Bits / CEA_861D ， HDMI1.4b /YCbCr422 10 Bits HDMI-5 ≤ 1920×1080p_60Hz /YCbCr444 （user-defined） SMPTE 424 720p_50Hz SMPTE 296... -
Page 10: Installation Dimension
LVP615N Series User Manual C-6）Installation Dimension Picture 5 SHENZHEN VDWALL CO., LTD... -
Page 11: Ⅳ Device Operation
LVP615N Series User Manual Ⅳ Device Operation After powering on the LVP615N，the system will automatically detect the current hardware and software configuration of the device. After booting up and in the operation state, the LCD screen displays the interface as following, left picture is... -
Page 12: Input Signal Selection And Layer On/Off Operation
LVP615N Series User Manual D-1）Input Signal Selection And Layer On/Off Operation LVP615N supports maximum 4 layers display，L1, L2 layer could randomly select signal source from 4 HDMI input channels，in standby state，press L1234 continually to select target layer， then press input signal button (HDMI-1, HDMI-2, HDMI-3, HDMI-4) for layer source selection，user could press On/Off button to close selected layer. - Page 13 LVP615N Series User Manual Display Mode Backup：This menu is used to backup DM-1, DM-2, DM-3 to DM-6, DM-7, DM-8. Press DM+ button to enter mode operation menu，select menu 9.3】Display Mode Backup，press OK to confirm and apply. 9.3 Display Mode Backup 1】...
-
Page 14: Other Operation
LVP615N Series User Manual D-3）Other Operation D-3-1） Button Lock And Device Info Check Press Lock，other buttons will be locked，only LAN, RS232, USB control is accessible，thus avoid control conflict between local control and remote control. When LVP615N receive remote control command, device will automatically enter button lock mode. - Page 15 LVP615N Series User Manual reboot processor，return to normal output image. D-3-4） Brightness Adjustment In operation state，rotate Knob to directly adjust output Image brightness level, press Knob to confirm and apply. @DM-1 LVP615N In Port Signal Status Layer Source HDMI-1 1920x1080_60...
-
Page 16: Ⅴ Adjustment And Setup
LVP615N Series User Manual Ⅴ Adjustment And Setup When processor boot up, in operation state，press Setup to enter menu Adjust And Setup，LCD interface is displayed as following. Adjust And Setup 1】语言/ Language English 2】Output Image >> 3】Input Video >> 4】Display Layer >>... -
Page 17: Output Image Setup
LVP615N Series User Manual E-2）Output Image Setup After boot up, press Setup to enter menu setup, rotate Knob to select 2. Output Image，press Knob （OK button）to enter following menu： 2. Output Image 1】Resolution 1920x1080_60Hz 2】Fast Mosaic >> 3】Output Port DVI-1 4】DVI-1 Size&Posi. -
Page 18: Input Video Setup
LVP615N Series User Manual 2） Custom resolution width range 640~3840，height range 480~2880，frequency 60Hz or 50Hz. As above picture showed，current output resolution is 1920x1080. E-3）Input Video Setup After boot up, press Setup to enter menu setup, rotate Knob to select 3. Input Video，press Knob （OK）into menu，user could configure each input HDMI Video Signal Range and User-Defined... - Page 19 LVP615N Series User Manual E-3-2） Custom EDID LVP615N all HDMI inputs support custom EDID，press Knob to enter menu 3.3. User-Defined EDID as following picture，rotate Knob to adjust 1）H-Active(Width) ,2）V-Active(Height) and 3） Vertical Refresh（Hz），then press OK to activate new EDID. 3.3. User-Defined EDID 1】H-Active (Width)
-
Page 20: Layer Setup
LVP615N Series User Manual E-4）Layer Setup After boot up, press Setup to enter menu setup, rotate Knob to select 4. Display Layer，press Knob button(OK) to following menu. LVP615N supports 4 layers display，this menu is used to set each window position, size and frame. - Page 21 LVP615N Series User Manual E-4-2） Image Frame Setup LVP615N window layer supports image frame color and thickness customization，following table is description of 4.8 Layer Frame. Under menu 4.8.1）Display Layer, rotate Knob to select window layer（L1，L2，L4，L5）, use 4.8.2）Enable to open/close window frame，then adjust frame color and thickness in menu 4.8.3）~ 4.8.6）.
-
Page 22: Image Quality
LVP615N Series User Manual E-5）Image Quality After boot up，press Setup to enter menu setup, rotate Knob to select 5. Image Enhance，press OK to following menu. 5. Image Enhance menu provides brightness, black bias and color gamut mapping adjustment. 5. Image Enhance 1】Brightness... - Page 23 LVP615N Series User Manual E-5-2） Color Mapping Setup 5.3.Color Space 1】Out Layer 2】On/Off 3】S-white 4】S-Space HD-709 5】T-white 6】T-Space DCT-P3 7】Measure.------------------------------------------------- White Cx： 0.680 0.265 0.150 0.313 Cy： 0.320 0.690 0.60 0.329 【OK】to Set Exit（or【Esc】） LVP615N supports color gamut mapping function，enable LED screen to convert different color gamut to LED screen built-in gamut, achieve realistic display.
-
Page 24: Led Control System
LVP615N Series User Manual E-6）LED Control System LVP615N doesn’t provide internal sending card，menu is invalid. SHENZHEN VDWALL CO., LTD... -
Page 25: Lan Configuration
LVP615N Series User Manual E-7）LAN Configuration After device boot up，press Setup to enter menu setup, rotate Knob to select 7. Lan Config，press Knob button(OK) to following menu. 7. LAN Config 1】IP 192.168.1. 8 2】Mask 255.255.255.0 3】Gate 192.168.1. 1 4】MAC 76-64-77-1D-2B-3C Description：... -
Page 26: Device System
LVP615N Series User Manual E-8）Device System Device system menu consists RS232/USB Com.with,Device ID, Initialize Device. 8. Device System 1】RS232/USB Com. with Main Ctrl 2】Device ID 3】Initialize Device 【OK】 to Set Exit（or【Esc】） E-8-1）RS232/USB Connection Setup and Device ID 1】 RS232/USB Com.with is used to configure processor USB communication state，optional main control or sending card 2】Device ID is used to configure each processor ID when... -
Page 27: Appendix：manual Modification Record
LVP615N Series User Manual Appendix：Manual Modification Record Ver. Date Description Draft V1.0 2024.7 First release SHENZHEN VDWALL CO., LTD...
