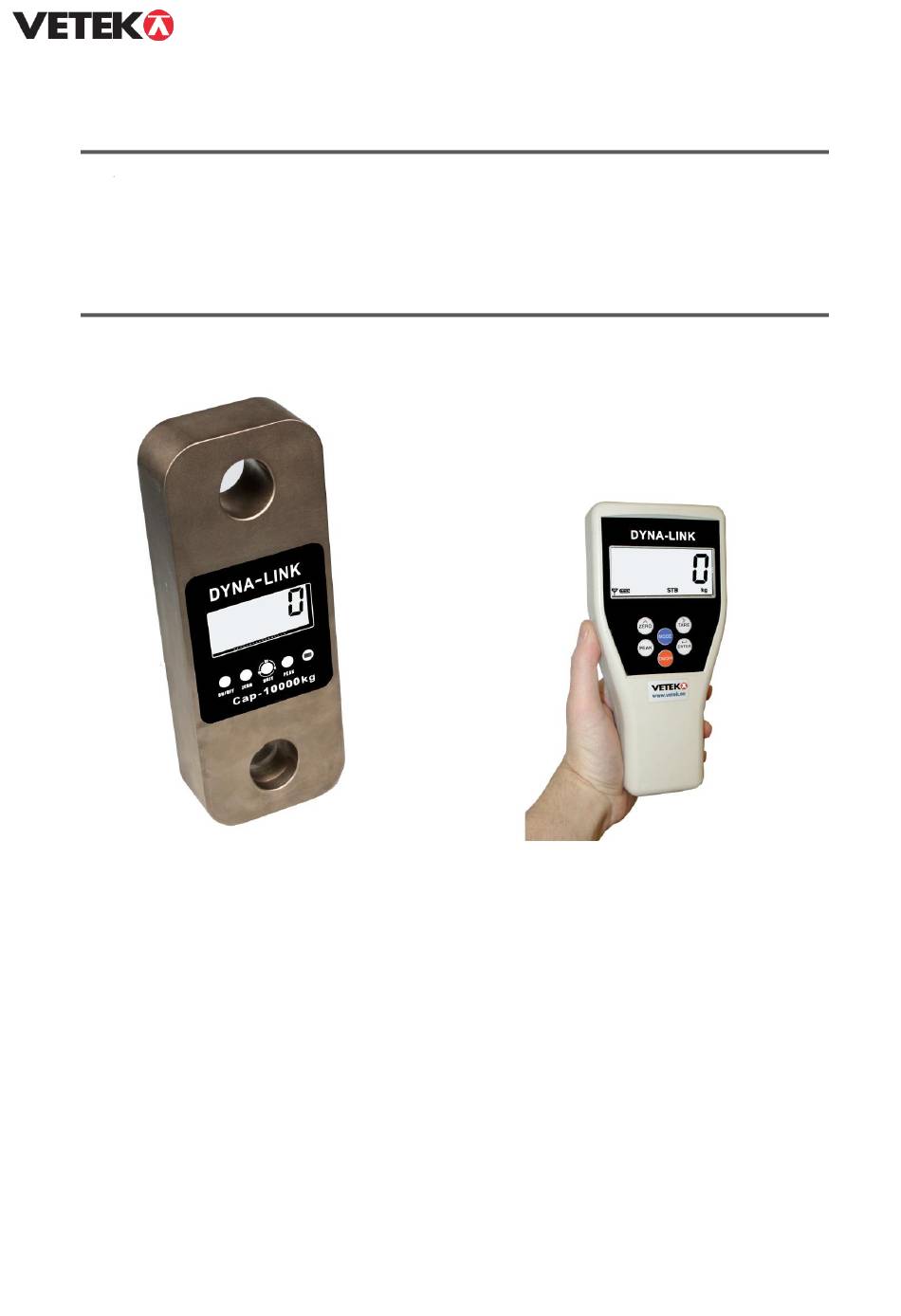

- Page 1 Manual MANUAL ERT DYNALINK With optional remote display Hantverksvägen 15, Nordens största webbshop för vågar Manual_ERT_V2 Tel. +46 (0)176-208920 76493 Väddö, Sverige www.vetek.se Email info@vetek.se...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFE OPERATION GUIDE……………………………………………………………………..…. CHAPTER 1 FEATURES AND SPECIFICATION..............3 1.Features......................... 2.Main technical data............…………………………….…… 3.Specification........................4.Appearance illustration....................5.Power supply........................CHAPTER 2 DISPLAY AND KEY................... 5 1. Led display........................2. Key area......................... CHAPTER 3 WIRELESS INDICATOR OPERATION GUIDE..........7 CHAPTER 4 DYNA LINK FUNCTION GUIDE................. -
Page 3: Safe Operation Guide
FE OPERATION GUIDE： 1. Do not overload this Dyna-link load guage. 2. Do not perform overhead weighing. Stay clear when Dyna-link load guage is in operation 3. Do not perform weighing under strong wind condition which may cause incorrect reading 4. -
Page 4: Main Technical Data
2. Main technical data 25mm (1’’) 5digits LCD Display Power on zero range 20% F.S. Manual Zero Range 4% F.S. Tare Range 20% F.S. ≤10 seconds Stable Time Overload Indication 100% F.S. + 9e Max. Safety Load 125% F.S. Ultimate Load 400% F.S. -
Page 5: Appearance Illustration
4.Appearance illustration CAPACITY A(mm) B(mm) C(mm) D(mm) Ø(mm) H(mm) MATERIAL 1000kg Aluminium 2000kg Aluminium 3000kg Aluminium 5000kg Aluminium 10000kg Steel 15000kg Steel 20000kg Steel 30000kg Steel 50000kg Steel 100000kg 1230 Steel 200000kg 1380 Steel 5. Power supply Battery: “LR6(AA)”size alkaline batteries. 1.5Vⅹ3 Current: the Dyna-link load guage average current is about DC 25mA, 3pcs new batteries can be used for about 50hours.wireless indicator average current is about DC 20mA, 4pcs new batteries can be used for about 80hours... -
Page 6: Chapter 2 Display And Key
CHAPTER 2 DISPLAY &KEY 1. LCD DISPLAY a.25mm (1’’) 5digits LCD with all fuctions and units. ：Wireless signal,it Appear means signal stable, it disppear while signal miss.it flash means signal weak. ： Battery Voltage, ：Full, ：Low, ：Empty d. PEAK：Current value is Peak Hold value(maxmium value). e. -
Page 7: Wireless Indicator Operation Guide
b. ZERO: When DYNA LINK load guage switch on with no load on the hook, but there are small digits on screen, press this key to obtain the zero reading. c. UNIT : Press UNIT key, the unit on LCD will circlely sequence change: “kg”→ “t”→ “lb” →“klb”→ “N” → “k N”... -
Page 8: Chapter 4 Dyna Link Function Guide
◆ Used as function select，normally combined with 【MODE】Key. ◆ Press【MODE】key once, display “OFF”, Press【ENTER】Key to realize remote power OFF。 ◆ Press【MODE】key twice,display “SETUP”, Press【ENTER】Key access Parameter Setting status.Setting finih,press【MODE】key again storage data and back to test mode. ◆ Press【MODE】key 3 times, display “dC”, Press【ENTER】Key to inquire battery voltage, press【 MODE】key again back to test mode. -
Page 9: Turn On/Off
◆TURN OFF 1 Manual Power Press (ON/OFF) Key 3Seconds Press【MODE】Key select “OFF”,press【ENTER】 2 Remote Power 3Seconds Choose turn off method when parameter setting, the scale will display〖 -〗after no operation at Auto Power OFF 15minutes to save power,and it will turn off automatically after 60minutes. -
Page 10: Accumulation Clear
7. ACCUMULATION CLEAR OPERATION DISPLAY ILLUSTRATION 〖 CLr 〗 Press 【 MODE 】 key 7 Ask if you want to clear or not times 〖noCLr〗 Press【MODE】key Cancel clear Then Press【ENTER】 〖8.8.8.8.8.〗 Press【ENTER】key Confirm clear 8. BATTERY VOLTAGE OPERATIO DISPLAY ILLUSTRATION 〖U *.**〗... - Page 11 OPERATION DISPLAY ILLUSTRATION 〖FS=02〗 Choose capacity ， the Press【ZERO】to screen display choose 02/03/05/06/10/15/20/30/50/60/75 circularly， take cap:2000kg as example, choose FS=02 〖Id=02〗 Press 【ENTER】 to New Dyna-link ， the screen display Id=02, if dyna-link calibrated，the screen confirm display calibrated division. 〖Id=01〗 Choose division ，...
- Page 12 〖Un=0〗 New dyna-link ， the screen display Press 【ENTER】 to confirm Un=0, if dyna-link calibrated，the screen display calibrated unit. 〖Un=0〗 Choose unit，Un=0：kg, Un=1: lb, Un=2: N, Press【ZERO】 to choose Un=3: KN, Un=4: ton, Generally, choose Un=0 when ex-stock. 〖OFF 1 Press 【ENTER】...
-
Page 13: Calibration
〖02000〗 Set “2 LO” or “2 HI” Value. Press 【 ZERO 】 to set value, Press【TARE】 to move digit 〖 Press 【ENTER】 to g〗 acceleration of gravity confirm 〖9.7940〗 New dyna-link ， the screen display 9.7930, Press 【ENTER】 to if dyna-link calibrated，the screen display confirm calibrated value. - Page 14 CHAPTER 6 DISPLAY ILLUSTRATION DISPLAY ILLUSTRATION REMARK 〖no519〗 Without wirelsee signal 〖SEtUP〗 Enter parameter setting 〖UAdJ 〗 Enter voltage calibration 〖LoAd〗 Calibration point 〖¯ ¯ ¯ ¯ ¯ 〗 Exceed high limit Tare weight can’t exceed full 〖 〗 capacity Exceed low limit Tare weight can’t be negative 〖-----〗...
-
Page 15: Chapter 7 Troubleshooting Guide
Zero drift between weighment large error Zeroed before before applying Requires recalibration See calibration applying weight weight Kg/lb wrong selecion See operation Wireless distance shortened Wireless indicator’s Replace battery. battery is low Nordens största webbshop för vågar www.vetek.se Email info@vetek.se...
