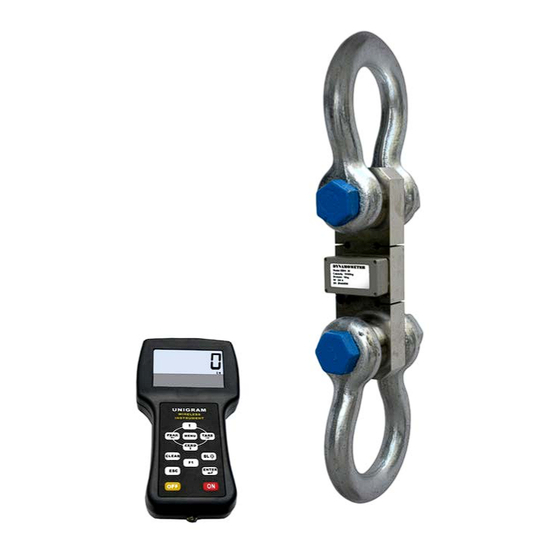

Vetek EBW-2D User Manual

Wireless tension link
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
WIRELESS TENSION LINK
USER MANUAL
MODEL: EBW-2D
www.vetek.se
Hantverksvägen 15
Tel. +46 (0)176-208920
info@vetek.se
76493 Väddö, Sverige
1
Manual_EBW_V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBW-2D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vetek EBW-2D

Summary of Contents for Vetek EBW-2D

  • Page 1 USER MANUAL WIRELESS TENSION LINK USER MANUAL MODEL: EBW-2D www.vetek.se Hantverksvägen 15 Tel. +46 (0)176-208920 info@vetek.se 76493 Väddö, Sverige Manual_EBW_V1...

  • Page 2: Table Of Contents

    ------------------------------------------------------------------------------10 CHAPTER 4 PARAMETER SETTING & CALIBRATION-------------------------------------12 1 Parameter setting-------------------------------------------------------------------------------------12 2 Calibration----------------------------------------------------------------------------------------------15 CHAPTER 5 DISPLAY ILLUSTRATION-----------------------------------------------------------16 CHAPTER 6 TROUBLESHOOTING GUIDE-----------------------------------------------------17 CHAPTER 7 RS232 PROTOCOL-----------------------------------------------------------------18 Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 3: Safe Operation Guide

    7. Check shackle, safety pins, and latches periodically. Contact your dealer for parts replacement in case defect, deform or wearing is found. Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 4: Chapter 1 Features And Specification

    Tension link Charger DC4.2V/1000mA Nominal operating Temp. - 10℃ ~ + 40℃ ≤85% RH under 20℃ Operating Humidity Wireless Distance 100M without obstacle Wireless Frequency 433MHz Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 5: Specification

    (mm) (mm) (mm) (mm) (mm) (mm) (k ) EBW-5 5000 10000 EBW-10 EBW-20 20000 30000 EBW-30 50000 EBW-50 EBW-10 100000 EBW-15 150000 EBW-20 200000 Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 6: Power Supply

    Generally, charging time should not less than 4hours, it have charging protection, long time charging can’t damage the battery. CHAPTER 2 INDICATOR DISPLAY 1. Tension link transmitter 1. ON/OFF KEY Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 7: Indicator Display

    1. In testing status ,there are small digits on screen, press this key to obtain the zero reading. 2.In Parameter Setting status，it used as scrolling down digit. Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...
  • Page 8 When load is changing, press this key will catch and display the maximum reading of the load. Press this key again, reading will return to normal.( in setting mode it can move digit to left). Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 9: Chapter 3 Operation Guide

    Press ON/OFF key when power ON status, ,the key light will not flash ◆ Turn off indicator Manual Power OFF Press Key 1 Second The indicator will turn off automatically Auto Power OFF after 2 ZERO Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 10: Tare

    Front four digits of total value 〖L****〗 Rear four digits of total value Return Press key again key can check different times weight and accumulation. Press 7. ACCUMULATION CLEAR Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 11: Unit

    〖 Press 0〗 Return to normal testing 11. SET POINT There are two user programmable Set-Point can be used for safety and warning applications Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...
  • Page 12 Press Set “2 LO” or “2 HI” Value. e.g.3000kg change value 〖 End 〗 Press Confirm above parameter setting，Exit 〖 0〗 parameter setting program. Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 13: Chapter 4 Parameter Setting &Calibration

    〖Pt=0〗 Press to choose Choose decimal position, screen display 0/1/2/3 circularly, 0=xxxxx, 1=xxxx.x, 2=xxx.xx, 3=xx.xxx， Cap.5000kg ,we choose Pt=0 Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...
  • Page 14 N, Un=3: KN, Un=4: ton, Generally, choose Un=0 when ex-stock. 〖OFF 1〗 New tension link, it display OFF 1,if tension Press to confirm link calibrated，it display calibrated value. Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...
  • Page 15 〖03000〗 Set “2 LO” or “2 HI” value. e.g.3000kg Press change value 〖g= 〗 Press to confirm Acceleration of gravity Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 16: Calibration

    〖P0000 Press Press input P1358 〖CLIbr〗 Access calibration Status Press 〖CALSP Zero point calibration Press 〖LoAd First load calibration Press Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...
  • Page 17 100% capacity standard weight 3. If you only have 20% standard weight, after first load calibration, when it display 〖LoAd2〗, press【ESC】, it will display End. Calibration finish. Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 18: Chapter 5 Display Illustration

    〖 End 〗 calibration ready 〖 OFF 〗 Turn off Input value before STB light 〖Unstb〗 CHAPTER 6 TROUBLESHOOTING GUIDE Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...

  • Page 19: Chapter 7 Rs232 Protocol

    Sign and Decimal F2 F3 F4 F5 F6 (1Byte) (1Byte) 0x30：kg (+ and -) sign: 0x31：Lb High 4 bits 0x32：N Decimal: 0x33：kN Low 4 bits 0x34：t Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email info@vetek.se...
  • Page 20 -68.1lb: (F1 F2 F3 F4 F5 F6 F7 F8 )31 F1 30 30 36 37 38，30 30 36 37 38 6.78kg: (F1 F2 F3 F4 F5 F6 F7 F8 )30 02 30 30 36 37 38，30 30 36 37 38 Box 79 Hantverksvägen 15 Tel. +46 (0)176-208920 www.vetek.se 76040 Väddö, Sverige Fax +46 (0)176-208929 Email...
