Section 3: Installation and Enabling Instructions
Figure 3-1
Figure 3-1
Figure 3-2

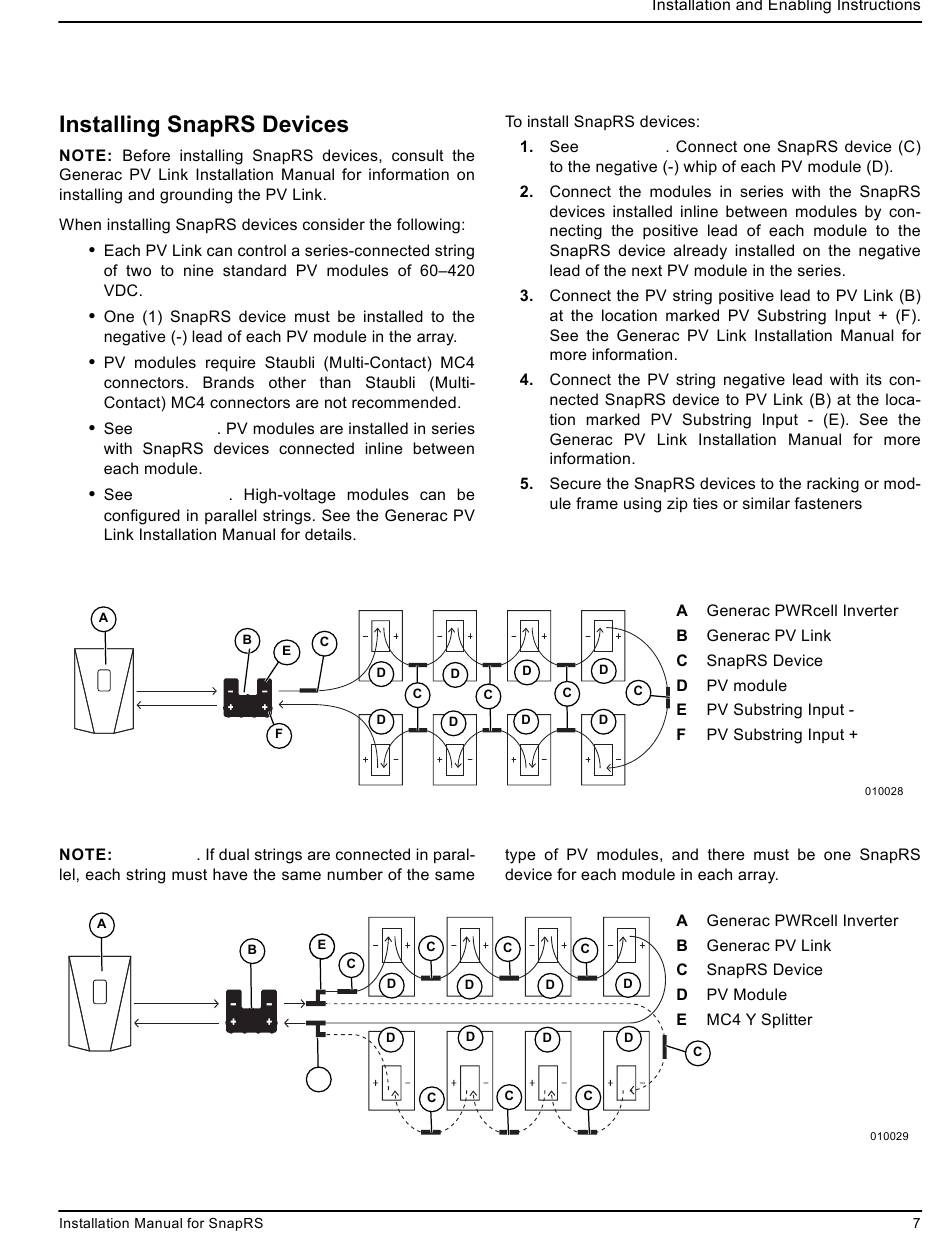

Figure 3-1. Single-String PV Array with Generac SnapRS™ Devices
Figure 3-2
Figure 3-2. Parallel-Input PV Array with Generac SnapRS™ Devices
