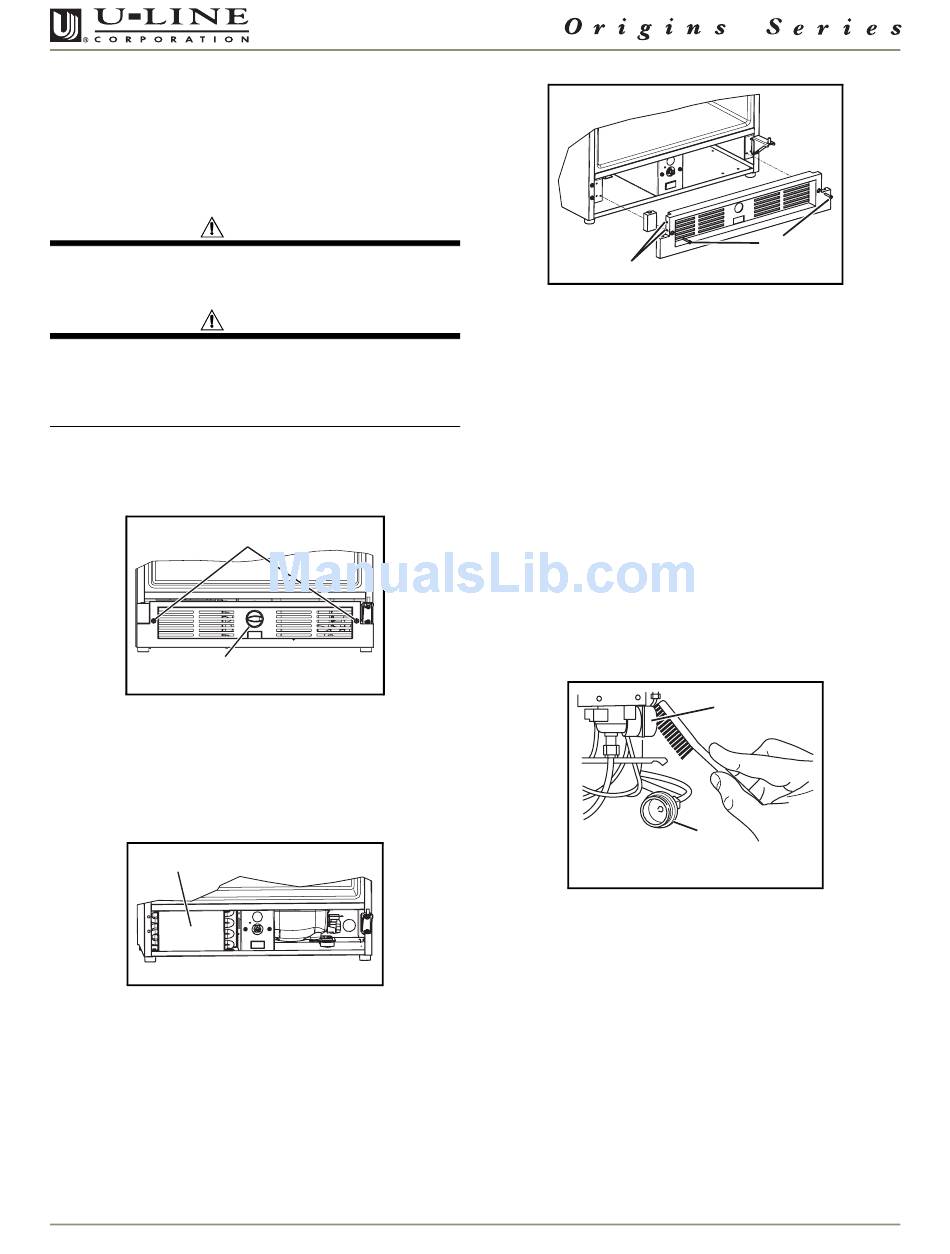

U-Line Combo CO29FF Use And Care Manual page 10

Condenser Cleaning
Interval - Every Three Months
To maintain operational efficiency, keep the front grille
free of dust and lint, and clean the condenser every three
months. Depending on environmental conditions, more
or less frequent cleaning may be necessary.
WARNING
Disconnect electric power to the unit before
cleaning the condenser.
WARNING
DO NOT touch the condenser fins. The condenser
fins are SHARP and can be easily damaged.
IMPORTANT IMPORTANT
DO NOT use any type of cleaner on the condenser
unit.
1. Disconnect power to the unit.
1
Figure 7
2. Remove the control knob (Figure 7, 1) by pulling it
straight out, away from grille.
3. Remove two screws from grille (Figure 7, 2) and save.
4. Remove grille and grille cap from unit.
1
Figure 8
5. Clean the condenser coil (Figure 8, 1) using a using a
soft brush with a "combing" action or vacuum cleaner.
Do not touch the condenser coil.
10
2
ULIN_0197_A
ULIN_0153_A
1
6. Make sure grille cap is behind grille in slots provided in
grille (Figure 9, 1) before attaching grille to unit, and
secure but do not overtighten both grille screws
(Figure 9, 2).
7. Reinstall the control knob (Figure 7, 1).
8. Reconnect power to the unit.
Ice Maker Maintenance
Inlet Screen
Interval - Every Twelve Months
The solenoid valve inlet screen must be cleaned at least
once each year as follows:
1. Shut off the water at the main supply valve.
2. Pull the unit out to access the back panel.
3. Disconnect electrical power to the unit.
4. Disconnect the hose connector (Figure 10, 1) from the
water solenoid valve (Figure 10, 2).
5. DO NOT remove the inlet screen from the water
solenoid valve. Use a tooth brush to gently clean any
sediment from the inlet screen.
6. Re-connect the water supply hose connector (Figure
10, 1) to the water solenoid valve (Figure 10, 2).
Tighten the connector securely.
7. Open the water main supply valve and check for
leakage at the water hose connection. Ensure that the
water supply line is not kinked.
8. Reconnect power to the unit before re-installing.
CO29FF
2
ULIN_0198_A
Figure 9
2
1
ULIN_0054_A
Figure 10
