Crompton Integra 1540 Operating Instructions Manual

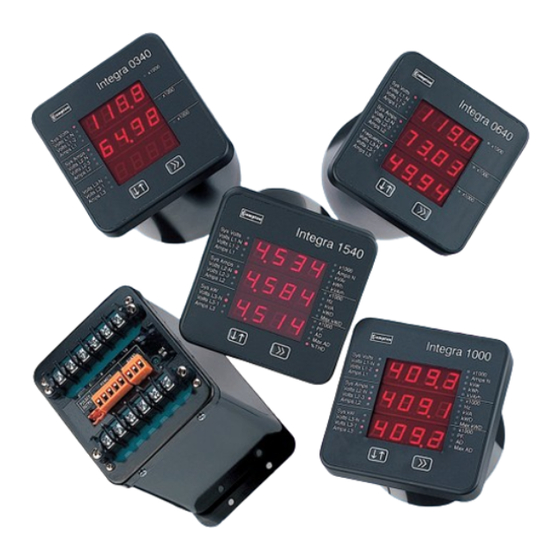

Switchboard integra multifunctional metering for three-phase electrical systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

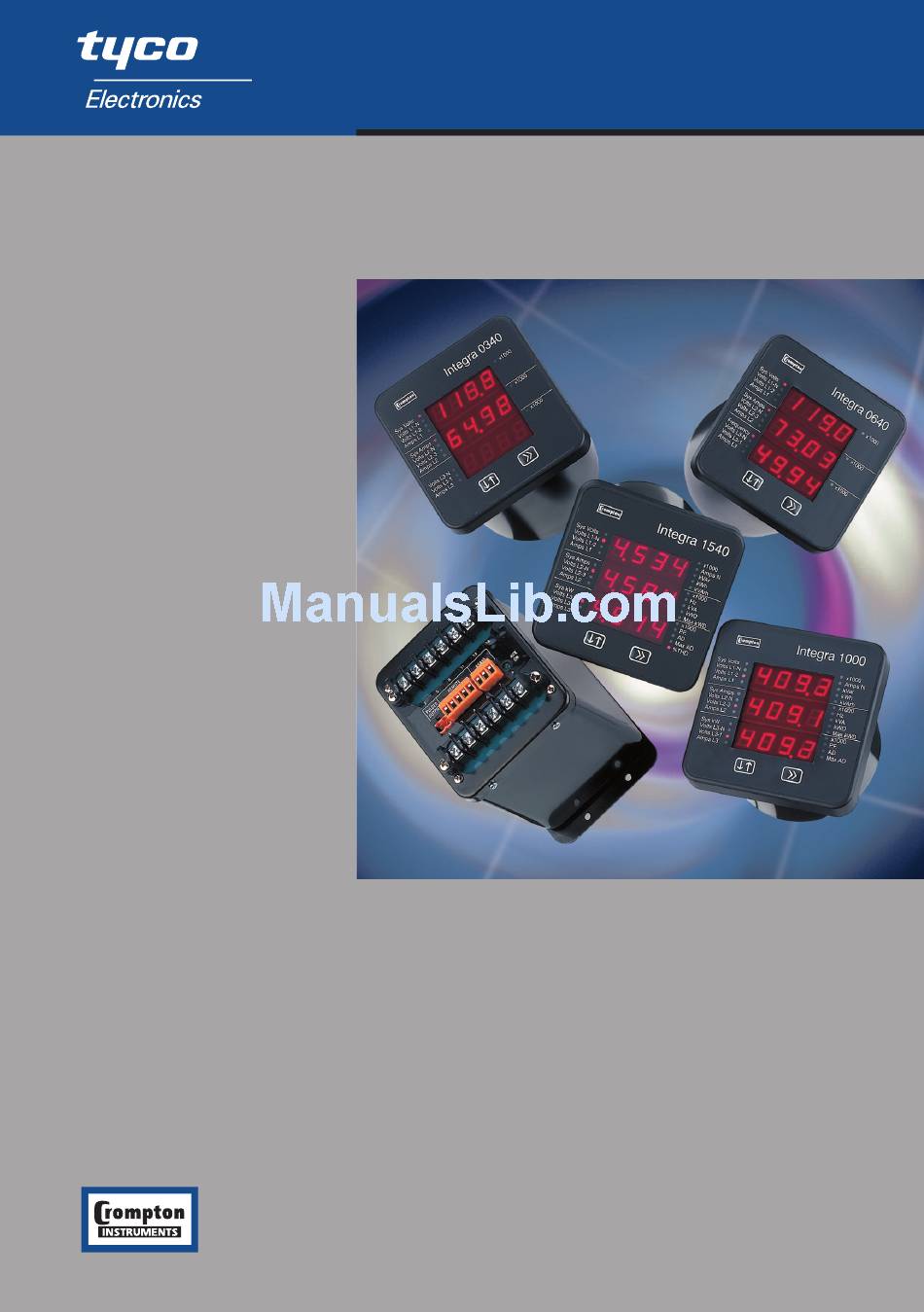

Installation and Operating Manual
Switchboard Integra 1540, 1000, 0640, 0440
0340 & 0240 Digital Metering Systems
Tyco Electronics UK Limited
Crompton Instruments
Freebournes Road, Witham, Essex, CM8 3AH, UK
Tel: +44 1376 509 509
Fax: +44 1376 509 511
Energy Division
http://energy.tycoelectronics.com
