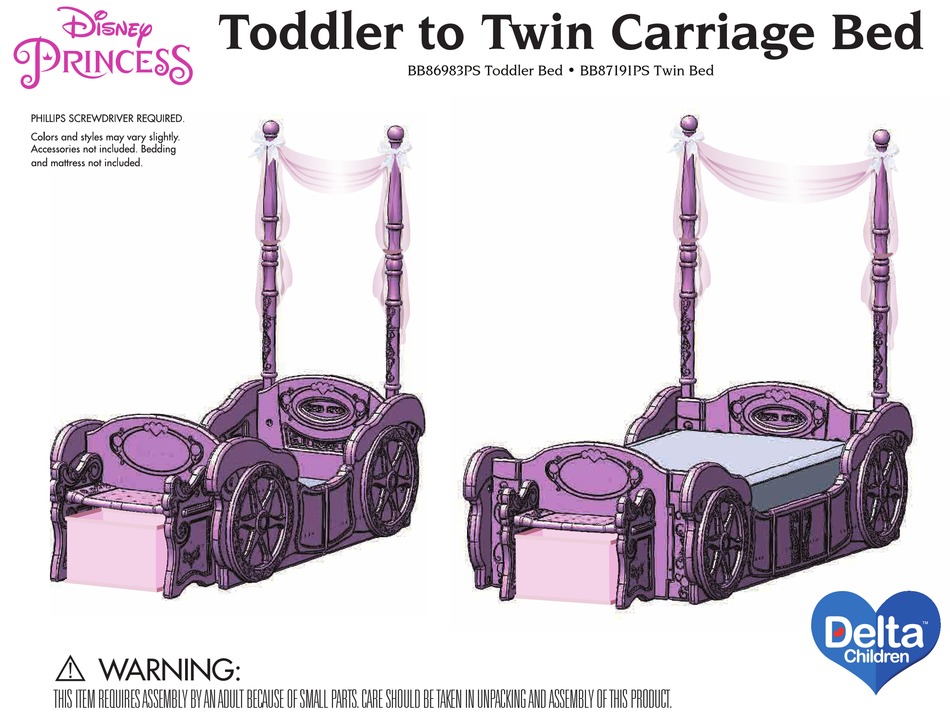

- Page 1 Toddler to Twin Carriage Bed BB86983PS Toddler Bed • BB87191PS Twin Bed WARNING: THIS ITEM REQUIRES ASSEMBLY BY AN ADULT BECAUSE OF SMALL PARTS. CARE SHOULD BE TAKEN IN UNPACKING AND ASSEMBLY OF THIS PRODUCT.
- Page 2 Toddler Bed Parts: TO FULLY ASSEMBLE THE BENCH PARTS HARDWARE SET FOUND IN TODDLER BED BOX TODDLER BED YOU WILL NEED 16 x 1” Length (1) Left (1) Right Panel Panel 8 x 1.5” Length (2) Side Panel Female (2) Side Panel Male (2) Headboard/Footboard Panel (headboard side view) (2) Support Straps...
- Page 3 Stickers • Please apply all stickers on individual parts before assembly. • For best results, place individual parts on a flat surface before applying stickers and acrylic jewels. (24) A3 C3 D1 E7 F1 (4 Jewels) (12)
- Page 4 Canopy Drapings (1 Toddler Center Draping) (1 Twin Center Draping) (1 Left Side Draping) (1 Right Side Draping)
- Page 5 1 Apply all decals E5 x 2 A2 x 6 C2 x 6 E5 x 2 Alternate Headboard Decal...
- Page 6 2 Assemble Bench • Make sure seat is all the • Align seat with slots in bench sides way to the front and • Slide into place screwholes on sides line up • Turn flap down so it sits flat across the back of the seat.
- Page 7 3 Toddler Bed Assembly 4 x 1” • Insert Panel C into Panel A for both sides • Insert Panel E latch hooks into both left/right side panel grooves • Slide downward into a fully locked position 4 x 1.5”...
- Page 8 • Align pole top with pole base 4 x .5” 4 x 1” • Align pole base with slots in side panels on back of headboard 4 x 1.5” 4 x .5” • Slide into place until poles are flush with sides...
- Page 9 • Align bench to footboard (Panel E)
- Page 10 4 x .5” • Align screwtab openings on straps to screwholes in sides 4 x 1” • Use these screw tabs for toddler bed setup • Use screws and washers to securely attach straps to both sides...
- Page 11 Skip to Section 5 to attach canopy draping...
- Page 12 4 Twin Bed Assembly • 1) Insert Panel B into Panel A for both sides • 2) Insert Panel C into Panel B for both sides 8 x 1” • Insert Panel D into Panel E 8 x 1” • Insert Panel F into Panel E...
- Page 13 • Insert Panel F latch hooks into side Panel C grooves for both sides 4 x 1.5” • Insert Panel D latch hooks into side Panel A grooves for both sides...
- Page 14 • Align pole top with pole base 4 x .5” 4 x 1” • Align pole base with slots in side panels 4 x .5” 4 x 1.5” • Slide into place until poles are flush with sides...
- Page 15 • Align bench to footboard (Panel E)
- Page 16 4 x .5” • Align screwtab openings on straps to screwholes in sides 8 x 1” • Use these screw tabs for twin bed setup • Use screws and washers to securely attach straps to both sides...
- Page 17 Go to Section 5 to attach canopy draping...
- Page 18 5 Canopy Draping • Attach top of Drape O to top • Attach middle of Drape O to top • Choose correct size of Center Drape P (Toddler) or Drape Q (Twin) for bed. of (1st) Pole J with velcro close of (1st) Pole J with velcro close • Attach to Drape O with velcro close.
- Page 19 6 Fabric Storage Bin • Fully expand Fabric Bin • Insert Bin Base (N) to stabilize.
- Page 21 TODDLER BED WARNING WARNING • Failure to follow these warnings and the assembly instructions could result in serious injury or death. INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT. • The user's maximum weight shall not be greater than Openings in and between bed parts can entrap head and neck of a small child. 50 LB (22.7 kg).
