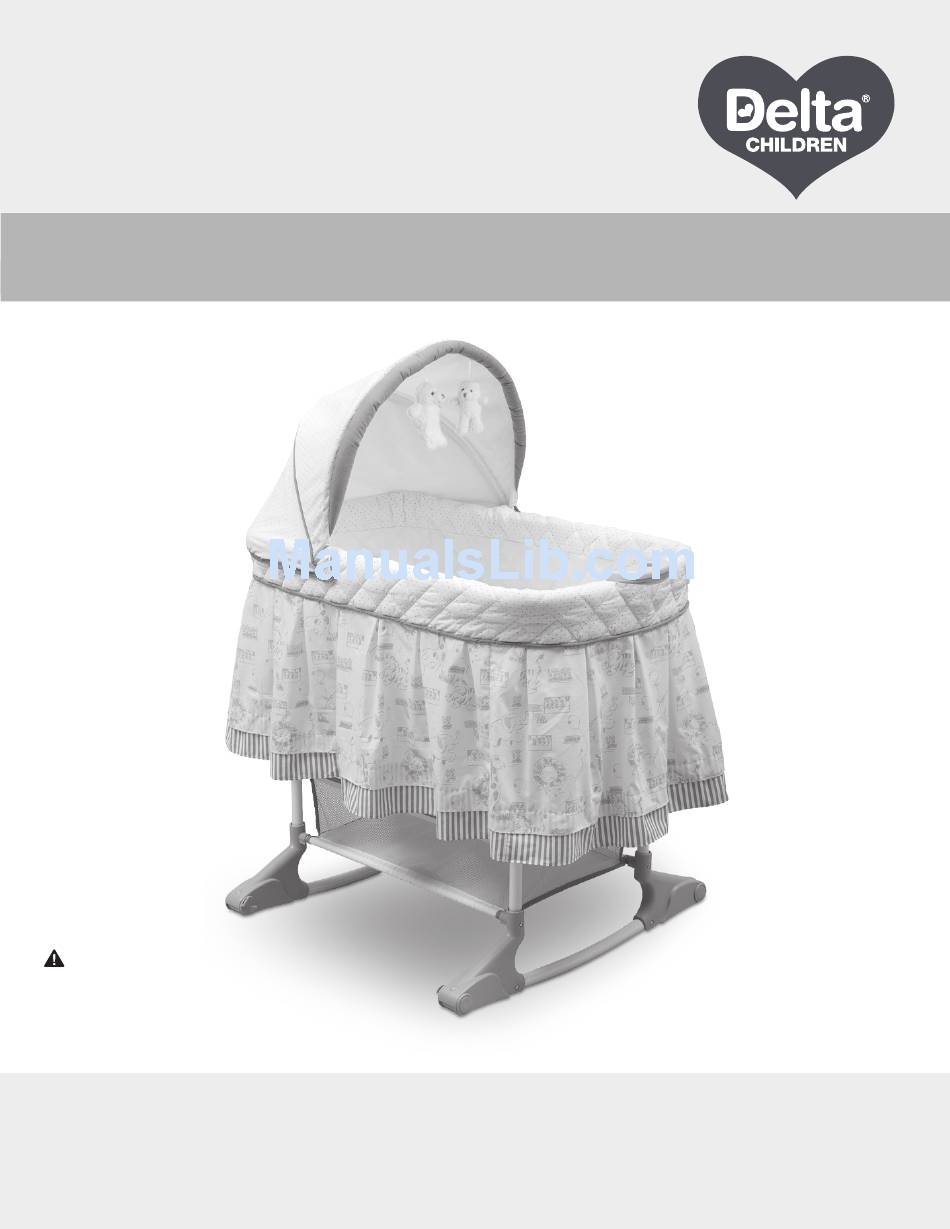

Play Time
Rocking Bassinet
Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.
35201-270
WARNING:
CHOKING HAZARD
Adult assembly required because of
small parts. Keep assembly parts out
of reach of children under 3 years.
Required Tools: 4 "AA" Batteries (Not included), Screwdriver (Not included)
Customer Service: 1-(800)-377-3777
INSTRUCTION MANUAL
Styles and colors may vary
www.DeltaChildren.com
DCP IM 11-20-2017
Advertisement
Table of Contents
Related Manuals for Delta Children 35201-270
Summary of Contents for Delta Children 35201-270
- Page 1 Play Time Rocking Bassinet INSTRUCTION MANUAL Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. 35201-270 Styles and colors may vary WARNING: CHOKING HAZARD Adult assembly required because of small parts. Keep assembly parts out of reach of children under 3 years.
- Page 2 Delta Childrens Products Corp . 114 West 26th Street New York, NY 10001 1-800-377-3777 www.deltachildren.com...
- Page 3 Parts IMPORTANT! Please remove all parts from the package and identify them before assembly. Frame Base with Wheels - 2 Liner Mattress Support Mattress Pad Cross Tubes -2 Storage Basket Canopy Legs -2 M5 X 2.6cm Screw -2 M6 x 4cm Screw – 8 Sheet M5 2.7cm Pre-installed Screw in Music Box-2 M5 Lock Nut –...
- Page 4 Bassinet Assembly Cross Tubes Storage Basket Tunnels Slots Base Note: You may need the help of another adult to help steady all parts for assembly. • Place a base on a flat surface with the slots facing up. • Fit a cross tube into each slot. Push down on each tube to be sure it is in place.
- Page 5 Bassinet Assembly Receptacles Base Short Tunnels Cross Tubes Legs • First, fit the ends of a leg into short fabric sleeves in the storage basket. • Then, fit the ends of the leg into receptacle in each base. • Repeat this procedure to assemble the other leg to the storage basket and bases.
- Page 6 Bassinet Assembly M6 x 4cm Screws M6 x 4cm Screws PULL PULL • Turn the assembly upright. • Insert four M6 x 4cm screws through the holes in the frame and legs. • Check to be sure the legs are secure. While gently holding the base down, pull up on the legs.
- Page 7 Bassinet Assembly Mattress Support • While holding an M6 lock nut in place with the wrench, completely tighten a screw with the Phillips screwdriver. • Repeat this procedure tighten the other three screws. • Place the mattress support into the frame. •...
- Page 8 Bassinet Assembly Mobile Attachment Icon Liner M5 Lock Nuts Rounded Side • Attached a M5 lock nut to the end of the screw. Make sure the Mobile Arm rounded side of the lock nut faces down. Hand-tighten the lock Attachment Mount nuts onto the screws.
- Page 9 Bassinet Assembly Snaps Pocket Pocket Snaps Mattress Support • Stretch the pockets on the bottom of the liner around the ends of the Snap Mattress Support mattress support. • Snap both straps on the bottom of the liner to the bottom of the mattress support.
- Page 10 Bassinet Assembly Snap Canopy Ratchet Frame Snap • Position the canopy over the top end of the bassinet opposite the warning label. • Open the hook and loop fasteners on the liner and push aside foam to expose metal. • Fasten the hook and loop patches on each canopy flap to the side of •...
- Page 11 Attaching Music Module Retractable Wheels Wheel Lock To Lower Wheels • Turn the wheel lock to lower the wheel. Make sure you hear a “click” as the wheel locks in place. • Repeat this procedure to lower the other three wheels. To Retract Wheels Rocking Mode •...
- Page 12 Consumer Information WARNING Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. • A mobile is intended for visual stimulation and is not intended to be grasped by the child. • From birth to 5 months. •...
- Page 13 Battery Safety Information In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage; • Do no mix old and new batteries or batteries of different types: Alkaline, standard (carbon zinc) or rechargeable (nickel-cadmium).
- Page 14 Care • The frame, mattress pad, storage basket, music module may be wiped clean using a mild cleaning solution and a damp cloth. Do not use bleach. Do not use harsh or abrasive cleaners. Rinse clean with water to remove residue. Do not immerse the frame. •...
- Page 15 Delta Children 114 West 26th Street New York, NY 10001 1-800-377-3777 www.DeltaChildren.com...
