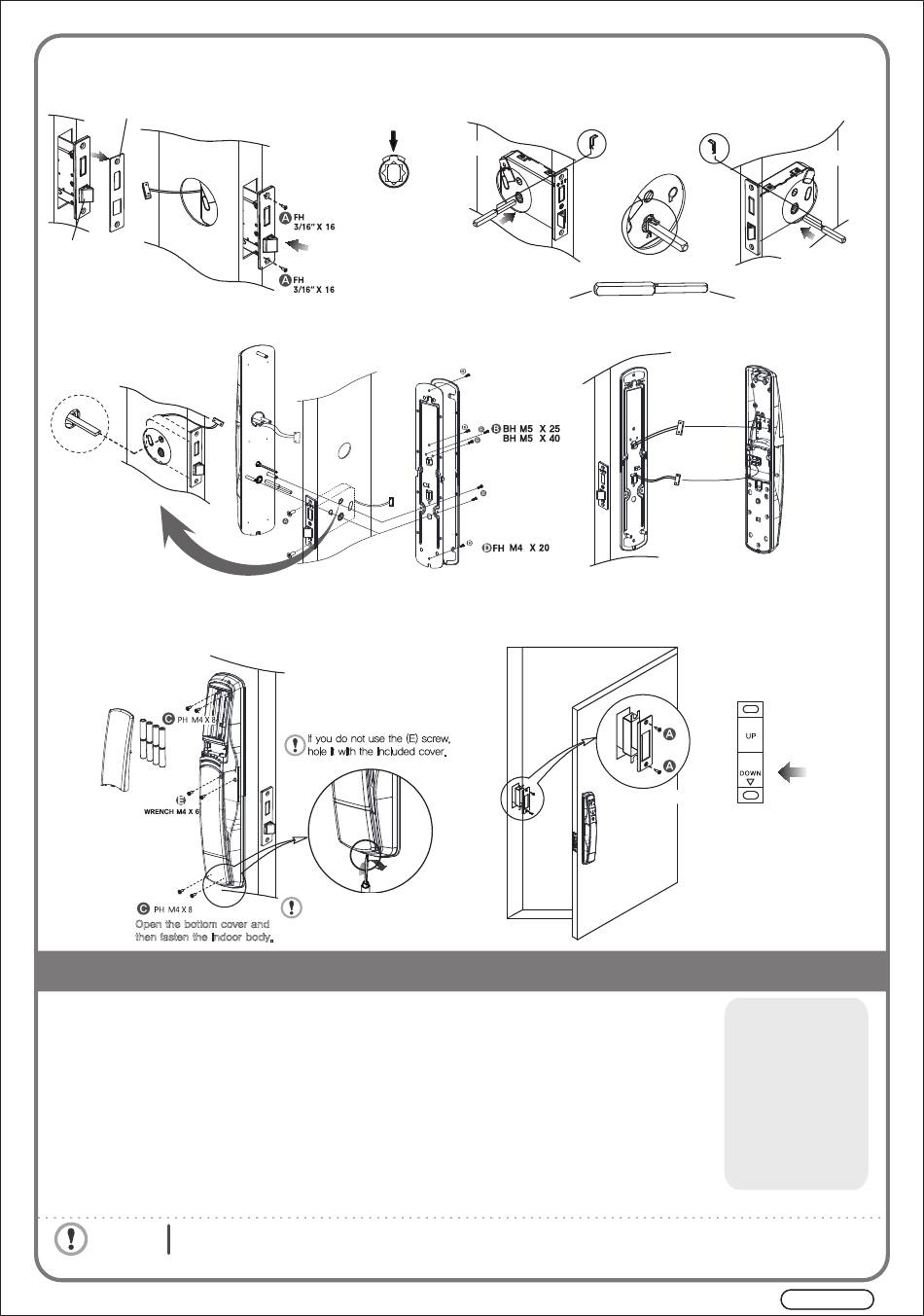

Commax CDL-88P Installation Manual page 2

1. Mortise Installation
Face plate
Inside
Latch bolt
4. Assembly of outside body
Assemble the key cylinder shaft of
outside body with the Mortise hole
of the door
4. Connecting indoor unit body
E
Open the bottom cover and
then fasten the indoor body.
1) Please check auto locking status.
- If the door will not locked properly, please check the auto-lock setting.
2) Please check Auto/Manual locking function properly.
3) Please check Password/Smart key/Fingerprint working properly after regstration.
4) Please check registered Password working properly.
5) Please explain to user about Double lock
6) Explain battery refill period and Emergency power supply by 5V Micro Usb 5 pins
7) Explain Password/Smart key/Fingerprint registration and using, change password fully.
8) Must pass the exact product description and user's manual warranty to the customer.
Caution When installing, be sure to insert batteries with the door open.
2. Handle shaft installation
Outside
Before installing the handle
shaft, set the shaft fixing
part to the 12 o'clock
position and install the shaft.
Put the handle shaft on the
outside side in square
instead of rhombus.
Please note that the cable
is not break during the indoor
plate assembly
If you do not use the (E) screw,
hole it with the included cover.
When opening the bottom cover,
insert a tool such as the (-) driver into
the gap between the cover and the body
and turn it left or right for easy opening.
Installstion after check point
3. Handle shaft fastening
Inside
Outside
Outdoor view
<Enlarge view>
Assemble
the outdoor
5. Connecting cable
D
D
D
D
7. Installation striker
<Enlarge view>
MANUAL INSTALL CDL-88P ENG
by locking pin
Inside
Outdoor view
Assemble
the indoor
Outdoor wire
Mortise wire
Please check the box striker Up side
/ Down side position before installation
If it will be miss postion, door lock may
not able to auto lock function
* Auto locking setting
Input password in locking
status and push # button twice
and push the no.4 and push
registration button
* Manual locking setting
Input password in locking
status and push # button twice
and push the no.7 and push
registration button
ED. 00
Outside
Magnet
