Summary of Contents for Motorola ML25260

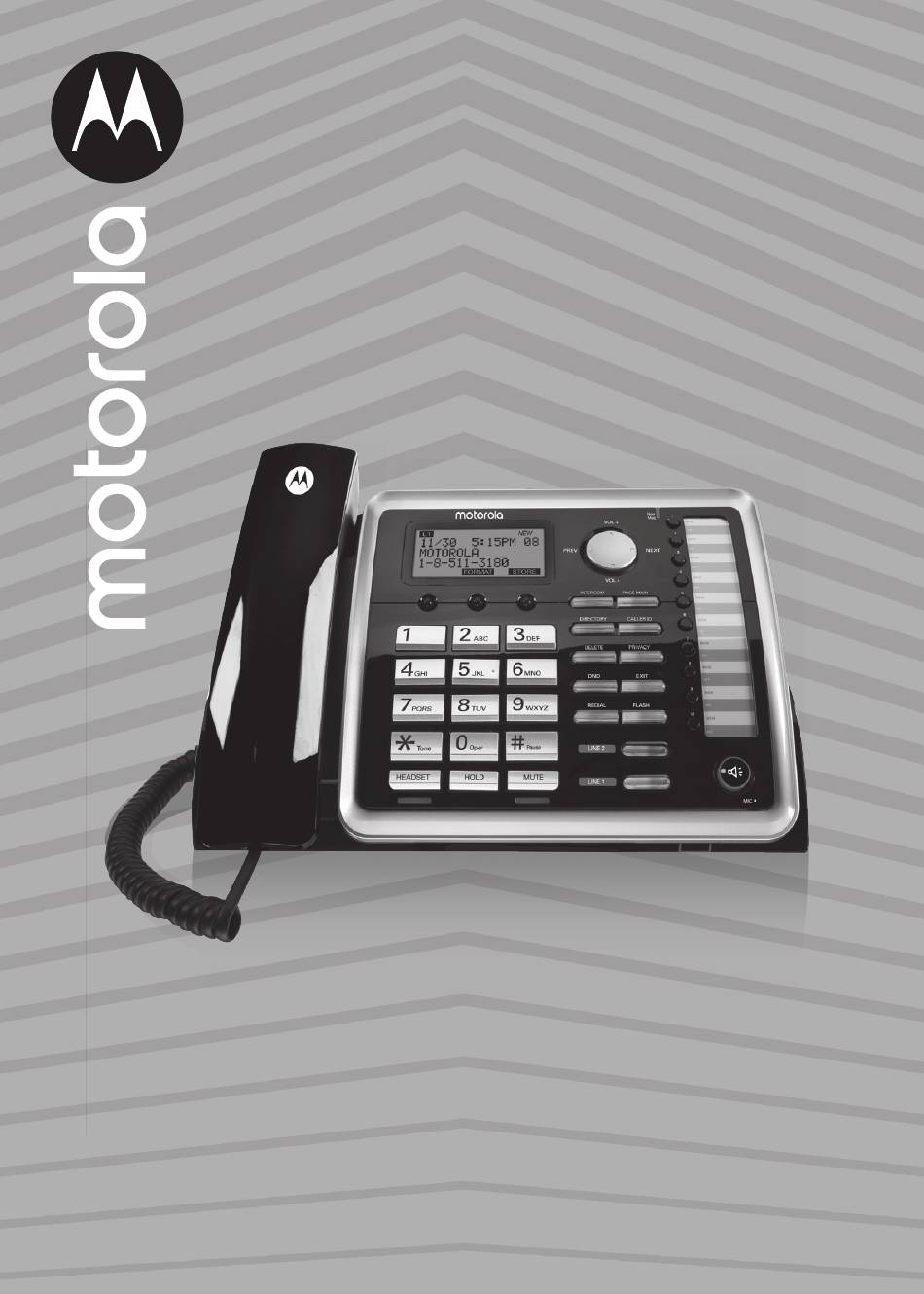

- Page 1 Motorola ML25260 2-Line Corded Full Duplex Speakerphone Full User Guide...
-
Page 2: Equipment Approval Information
Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number, Ringer Equivalence Number (REN) for the equipment. - Page 3 However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
-
Page 4: Table Of Contents
Equipment Approval Information ................2 Introduction ........................6 Important Safety Instructions ...................6 Parts Checklist .........................8 Base Layout ........................9 Connections and Setup ..................... 10 Important Installation Information ....................10 Important Installation Guidelines ..................... 10 Installing the Phone..........................10 Connecting your System ........................13 Backup Battery Operation ........................14 Programming the Phone ................... - Page 5 8.11 Flash ................................22 8.12 Inserting a Pause in the Dialing Sequence ..................22 8.13 Redial ................................22 8.13.1 Viewing a Redial Record ......................22 8.13.2 Adding a Redial Record in the Directory .................22 8.14 Transferring a Call to Another Extension ..................23 8.15 Receiving a Transferred Call from Another Extension ..............23 8.16 Ringer On/Off and Ringer Volume ....................23 8.17...
-
Page 6: Introduction
Motorola ML25055 Cordless Handset or other Motorola ML25260 phones. Only one Motorola ML25260 base station needs to be connected to a phone jack. You may also expand a Motorola ML25255 system using up to 9 additional Motorola 25260 phones. - Page 7 (a) The power supply cord or plug is damaged or frayed. (b) The product has been exposed to rain or water. (c) The product does not operate normally by following the operating instructions. (d) The product’s cabinet has been damaged. (e) The product exhibits a distinct change in performance.
-
Page 8: Parts Checklist
Parts Checklist Make sure your package includes the following items: Corded handset Corded base & desk stand (assembled together) Coiled handset AC power adaptor Wall mount 2 x 2-line telephone cord telephone cord cords NOTE Digital Security System Your cordless phone uses a digital security system to protect against false ringing, unauthorized access, and charges to your phone line. -
Page 9: Base Layout
Base Layout A Volume + N Redial Record B Previous O Line 1, Line 2 Buttons / Indicators C 3 Softkeys New Message LED Indicator D Directory Q One-Touch Memory (1-10) Buttons Delete R Next # Pause Volume - G * Tone Page H Mute U Intercom... -
Page 10: Connections And Setup
2. Install 5 AAA-size alkaline batteries (not included) for back up power in the event of a power failure. NOTE Please use the included power adaptor for normal use; the Motorola ML25260 is designed to run on the back up batteries for short periods only. - Page 11 • Insert a flat-head screw driver or similar object into the battery door latch and gently pry upward to release the battery door from the base. • Insert the batteries inside the battery compartment as shown on the diagram. • Snap the battery compartment door back into place.
- Page 12 If you are connecting to two 1-line phone jacks using a phone coupler: If you have 2 single-line wall jacks installed in your home or office, you can use adaptors/ couplers (not included) to combine the 2 single telephone lines into 1 dual lines. The adaptor/ coupler may look similar to the one pictured here and can be purchased from your local telephone products retailer.
-
Page 13: Connecting Your System
Connecting your System Wireless Extensions Wired Main Unit To wirelessly connect accessories to your Motorola ML25260: First, make sure your Motorola ML25260 is in Main/Wired mode. To do this: In idle mode, press MENU softkey to go to the main menu. -
Page 14: Backup Battery Operation
To wirelessly connect your Motorola ML25260 to another Motorola ML25260 or a compatible Motorola base phone: You can only wirelessly connect a Motorola ML25260 to another Motorola base phone when the Motorola ML25260 is in Extension/Wireless mode. To do this:... -
Page 15: Programming Functions
MAIN/WIRED or EXT/WIRELESS. SELECT 4. Press softkey to save your selection. NOTE Each system of Motorola ML25260 must have one phone set to Main/Wired mode with a wired connection to the phone lines. 7.3.1 Main/Wired Mode SELECT MODE From the menu: Using VOL + and VOL - of the navigation button to scroll to MAIN/WIRED. -
Page 16: Date/Time
On the Extension/Wireless unit: AUTO ANSWER INT REGISTRATION 2ND CALL ALERT EXTENSION NAME NOTE Some options are system-wide and can only be programmed from the phone while in Main/Wired mode. 7.4.1 Date/Time DATE/TIME option only exists in the Main/Wired unit, Extension/Wireless unit Date/Time should update automatically after it is set in the Main/Wired unit. -
Page 17: Registration
Main/Wired mode with a wired connection to the phone lines. During the registration process, keep the wireless accessory near the base. Up to 10 Motorola ML25260 in Extension/Wireless mode can be registered to one Motorola ML25260 in Main/Wired mode. From the... -
Page 18: 2Nd Call Alert
7.4.6 2nd Call Alert When it is set to On, you will hear the alert tone when you are in conversation and there is an incoming call from another line. PHONE SETTING From the menu: Using VOL + and VOL - of the navigation button to scroll to 2ND CALL ALERT. -
Page 19: Backlight
4. Press SELECT softkey to save your selection. 7.5.3 Backlight From the DISPLAY SETTING menu: Using VOL + and VOL - of the navigation button to scroll to BACKLIGHT. Press SELECT softkey. 2. Using VOL + and VOL - of the navigation button to scroll to ALWAYS ON or AUTOMATIC. -
Page 20: Call Voicemail
5. Wait for a dial tone, then dial the phone number. 6. Press HEADSET when finished. NOTE Although this device will accept a variety of standard 2.5mm telephone headsets, Motorola does not guarantee compatibility with third party devices. Performance may vary depending on the quality of the headset. -
Page 21: Pre-Dialing
Pre-Dialing With the phone idle, manually enter the telephone number. The telephone number will show in the display. The maximum pre-dialing number length is 32 digits, if the number is over 32 digits, it will emit an error tone. 2. You can either press DIAL softkey, s, HEADSET, LINE 1 or LINE 2 or pick up the corded handset to take a line and the number will automatically be dialed. -
Page 22: Flash
8.11 Flash If you subscribe to Call Waiting Caller ID service from your local telephone company and you receive an incoming call during a call, you will hear a beep to indicate another call is waiting on the line and Caller ID information (if available) for the waiting call shows on the display. To connect to the waiting call, press FLASH and your first call will be put on hold. -
Page 23: Transferring A Call To Another Extension
8.14 Transferring a Call to Another Extension During a call, press XFER softkey. The current call is put on hold. 2. Using VOL + and VOL - of the navigation button to select the extension you want to transfer SELECT the call to. -
Page 24: 3-Way Conference Call By An Intercom Call
Page The page feature helps you locate a misplaced handset. Press PAGE MAIN. The handset extensions beep. If you have a Motorola ML25055, the handset LED indicator will flash, and the screen will display PAGING FROM BASE. 2. To cancel the paging call, either press PAGE MAIN or EXIT button, or... -
Page 25: Caller Id (Cid)
Caller ID (CID) In order to use the Caller ID features, you must subscribe to either the standard Name/Number Caller ID Service or Caller ID with Call Waiting Service. To know who is calling while you are on the phone, you must subscribe to Caller ID with Call Waiting service. When the unit receives an incoming call with CID information, the CID can be shown on the base. -
Page 26: Deleting All Cid Records
11.4 Deleting All CID Records This feature allows you to clear all CID records at once. While viewing a CID record, press and hold DELETE. DELETE ALL?. 2. The screen will display DELETED. 3. Press softkey to confirm. The screen will display 11.5 Dialing Back When viewing CID records, you can dial back the numbers showing on the display by pressing s,... -
Page 27: Adding A New Directory Record
12.1 Adding a New Directory Record In idle mode, press DIRECTORY. 2. Press softkey. The screen displays ENTER NAME:. 3. Using the dial pad to enter a name. More than one letter is stored in each of the number keys. For example, to enter “Lorraine,” press the 5 key three times for the letter L, press the 6 key three times for the letter O, press the 7 key three times for the letter R, and so on. -
Page 28: Editing A One-Touch Memory Record
3. Press EDIT softkey to edit the content according to the steps in section 12.1. NOTE Press BACK softkey to exit without saving (making no changes). 12.6 Editing a One-Touch Memory Record In idle mode, press DIRECTORY. 2. Press the corresponding One-Touch Memory (1-10) button you wish to edit. EDIT 3. -
Page 29: Dialing A Directory Record
NOTE Press EXIT to cancel the Delete function. 12.11 Dialing a Directory Record 12.11.1 Dial a directory record while in Talk mode Press s, HEADSET, a LINE button, or pick up the corded handset. 2. Press DIRECTORY. 3. Using VOL + and VOL - of the navigation button to scroll to the desired record. DIAL 4. -
Page 30: Display Messages
Display Messages The following messages show the status of the phone, provide Caller ID information, or help you set up and use your phone. DELETE ALL? Prompt asking if you want to erase all records. DELETE? Prompt asking if you want to erase the current record. --START/END-- Indicates that it is the start or end of the list. -
Page 31: Troubleshooting
Troubleshooting Operation by battery • If the power cord is not plugged into the base unit, and the battery is available the unit will enter Battery Operation Mode. The Battery Operation Mode is designed to allow users to continue use of the phones during a power outage and is not intended for prolonged use. REPLACE BATTERY shows in the display •... - Page 32 shows on the Extension/Wireless phone OUT OF RANGE • Move the Extension/Wireless phone closer to the Main/Wired base unit. • Make sure the Main/Wired base power cord is connected to a working electrical outlet. Causes of poor reception • Aluminum siding. •...
-
Page 33: General Information
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR MZGW BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE... - Page 34 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola or MZGW are excluded from coverage. Use of Non-Motorola branded Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage.
- Page 35 Manufactured, distributed or sold by Meizhou Guo Wei Electronics Co. LTD., official licensee for this product. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners.
