- Page 1 Quick Start Guide RSST-2000 Series 2010446, 2010448, 2010449,2010450 Stock number: rspro.com...
- Page 2 RS PRO shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expense or economic loss.
-
Page 3: Afety Instructions
AFETY INSTRUCTIONS This section contains the basic safety symbols that may appear on the accompanying User Manual CD or on the instrument. For detailed safety instructions and precautions, please see the Safety Instructions chapter in the user manual CD. Safety Symbols These safety symbols may appear in the user manual or on the instrument. - Page 4 Power Cord for the United Kingdom When using the instrument in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons. WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow: Earth Blue:...
-
Page 5: Etting Started

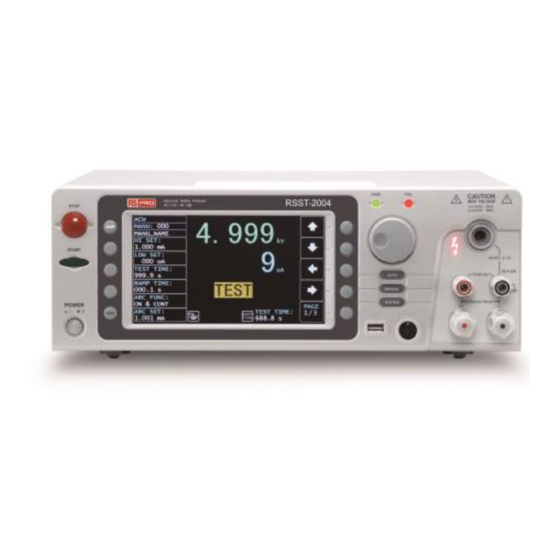

ETTING STARTED Main Features Performance • ACW: 5kVAC • DCW: 6kVDC • IR: 50V~1200V (50V steps)* • GB: 3A~32A • CONT: 100mA • Ramp up time control Features • Ramp down time control • Safety discharge • 100 test conditions (MANU mode) •... - Page 6 Appearance Front Panel Overview Description 1. Power Switch 2. START Button 3. STOP Button 4. Test Function Keys (Green Zone) 5. Display 6. Soft Keys (Blue Zone) 7. PASS/FAIL Indicators 8. Scroll Wheel 9. HIGH VOLTAGE Indicator 10. HIGH VOLTAGE Output Terminal 11.
- Page 7 Rear Panel Overview Description 1. HIGH VOLTAGE Output Terminal 2. HIGH VOLTAGE Indicator 3. SENSE H & Output Terminal 4. SENSE L & RETURN Terminal 5. SOURCE H (RSST-2004 only) 6. SOURCE L (RSST-2004 only) 7. AC Mains Input (Power Cord 8.
- Page 8 Line Voltage Connection and Power Up The RSST-2000 accepts line voltages of 100 - 240V at 50Hz or 60Hz. 1. Connect the power cord to the AC Mains Input socket on the rear panel. 2. If the power cord does not have an earth ground, ensure the ground terminal is connected to an earth ground.
- Page 9 Workplace Precautions The RSST-2000 is a high voltage instrument that outputs dangerous voltages. The following section describes precautions and procedures that must be followed to ensure a safe work environment. The RSST-2000 generates voltages in excess of 5kVAC or 6kVDC. Follow all safety precautions, warnings and Warning directions given in the following section when using the instrument.
- Page 10 1. Never touch the safety tester, lead wires, terminals, probes and other connected equipment when the tester is testing. 2. Do not turn the safety tester on and off quickly or repeatedly. When turning the power off, please allow a few moments before turning the power back on.
- Page 11 discharge the DUT after each test. The time required for a DUT to discharge depends on the DUT and test voltage. Never disconnect the safety tester before a discharge is completed. Basic Safety Checks The RSST-2000 is a high voltage device and as such, daily safety checks should be made to ensure safe operation.
- Page 12 PECIFICATIONS The specifications apply when the RSST-2000 is powered on for at least 30 minutes at 15˚C~35˚C. Environment Range Temperature Humidity 15˚C ~ 35˚C ≤70% (No condensation) Warranty 0˚C ~ 40˚C ≤70% (No condensation) Operation -10˚C ~ 70˚C ≤85% (No condensation) Storage Installation Location Indoors at an amplitude of up to 2000m.
- Page 13 (3% of setting + 30μA) Judgment Accuracy Window Comparator Method ARC DETECT Rise-time Control Function RAMP Time (Rise Time) 0.1~999.9s Fall-time Control Function RAMP Down Time 0.0~999.9s TIMER (Test Time) OFF, 0.3s~999.9s (100ppm+20ms) TIMER Accuracy ON/OFF Wait Time 0.0~999.9s At least 0.3 seconds is needed to reach a set voltage of 50V/10mA.
- Page 14 Window Comparator Method Yes ARC DETECT Rise-time Control Function RAMP (Ramp Time) 0.1~999.9S Fall-time Control Function RAMP Down Time 0.0~999.9s TIMER (Test Time) OFF, 0.3s~999.9s (100ppm+20ms) TIMER Accuracy ON/OFF Wait Time 0.0~999.9s Maximum Capacitive Load 1μF DC Mode At least 0.3 seconds is needed to reach a set voltage of 50V/2mA. Insulation Resistance Test Output Voltage 50V~1200V...
- Page 15 RAMP DOWN Time 0.0~999.9s WAIT TIME 0.0~999.9s TIMER (Test Time) 0.3s~999.9s (100ppm+20ms) TIMER Accuracy Note: It is required to implement GND OFFSET action when IR Ground Mode is On. When IR Ground Mode is On, the maximum 30Gohm measurement range is guaranteed.
-
Page 16: Dimensions And Weight
Continuity Test Output Current 100mA(DC) 0.10Ω~70.00Ω Ohmmeter Measurement Range 0.01Ω Ohmmeter Measurement Resolution ±(10% of reading+2Ω) Ohmmeter Measurement Accuracy ±(10% of setting+2Ω) Ohmmeter Judgment Accuracy Window Comparator Method TIMER (Test Time) 0.3s~999.9s TIMER Accuracy ± (100ppm+20ms) Interface REMOTE (Remote terminal) SIGNAL I/O RS232 USB (Device) - Page 17 EC Declaration of Conformity We declare that the below mentioned product 2010446, 2010449, 2010448,2010450 satisfies all the technical relations application to the product within the scope of council: Directive: 2014/30/EU; 2014/35/EU; 2011/65/EU; 2012/19/EU. The above product is in conformity with the following standards or other normative documents: ◎...
