Section 2 General Information

Component Locations

A C
B
Left Side
A Engine radiator
B Breakaway battery for trailer brakes
C Diesel engine
D Hydraulic fluid filters
E Hydraulic fluid fill
F Hydraulic fluid reservoir tank
G Hydraulic fluid breather/separator
Owner's Manual for Flameless Air Heater
G
E
001574
D F

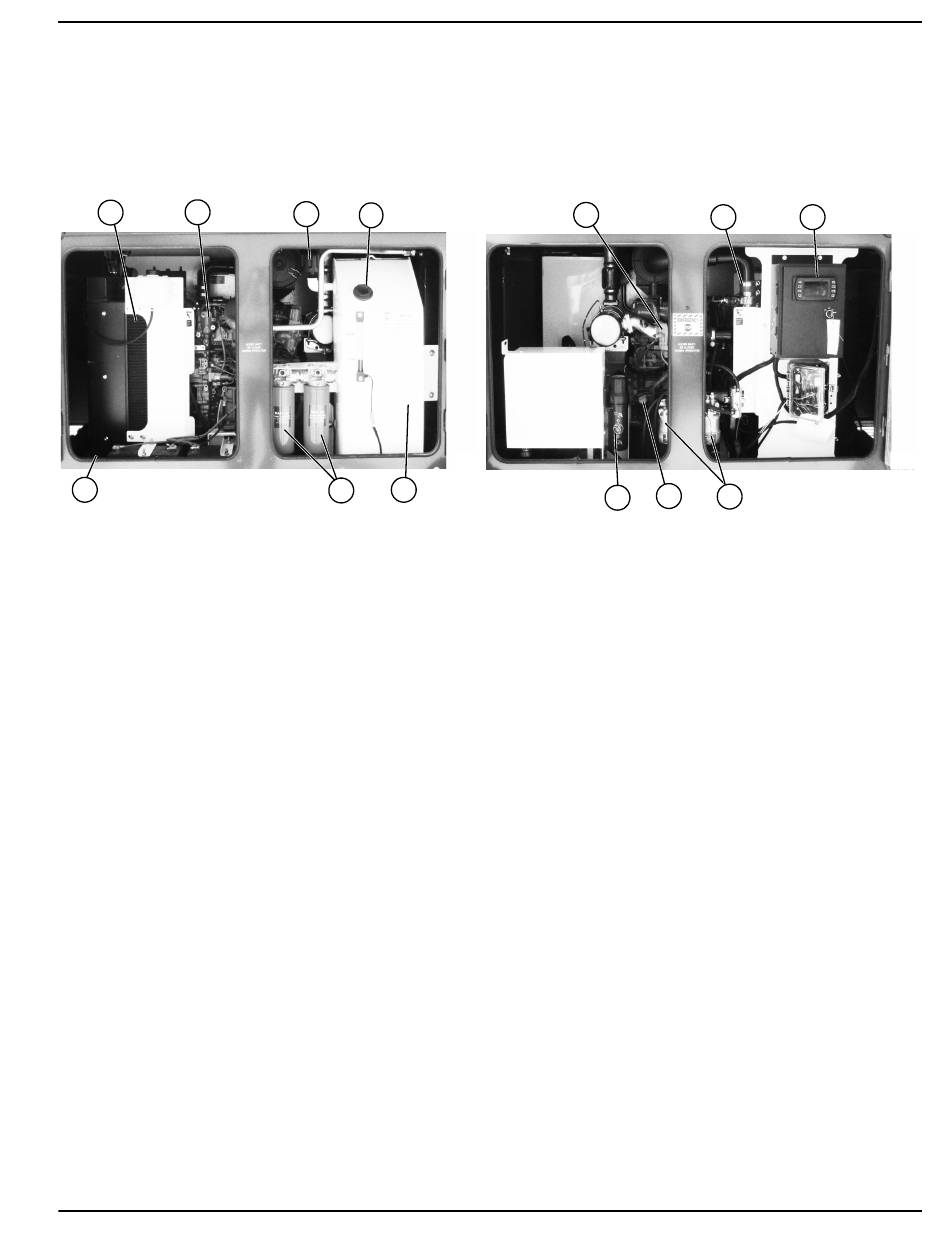

Figure 2-1. Features and Controls
Table 1 - Heater Components
J
K
I
Right Side
H Controller
I Manual compartment
J Diesel engine turbo charger
K Diesel engine oil dipstick
L Engine fuel filters
M Automatic positive air shutdown
General Information
