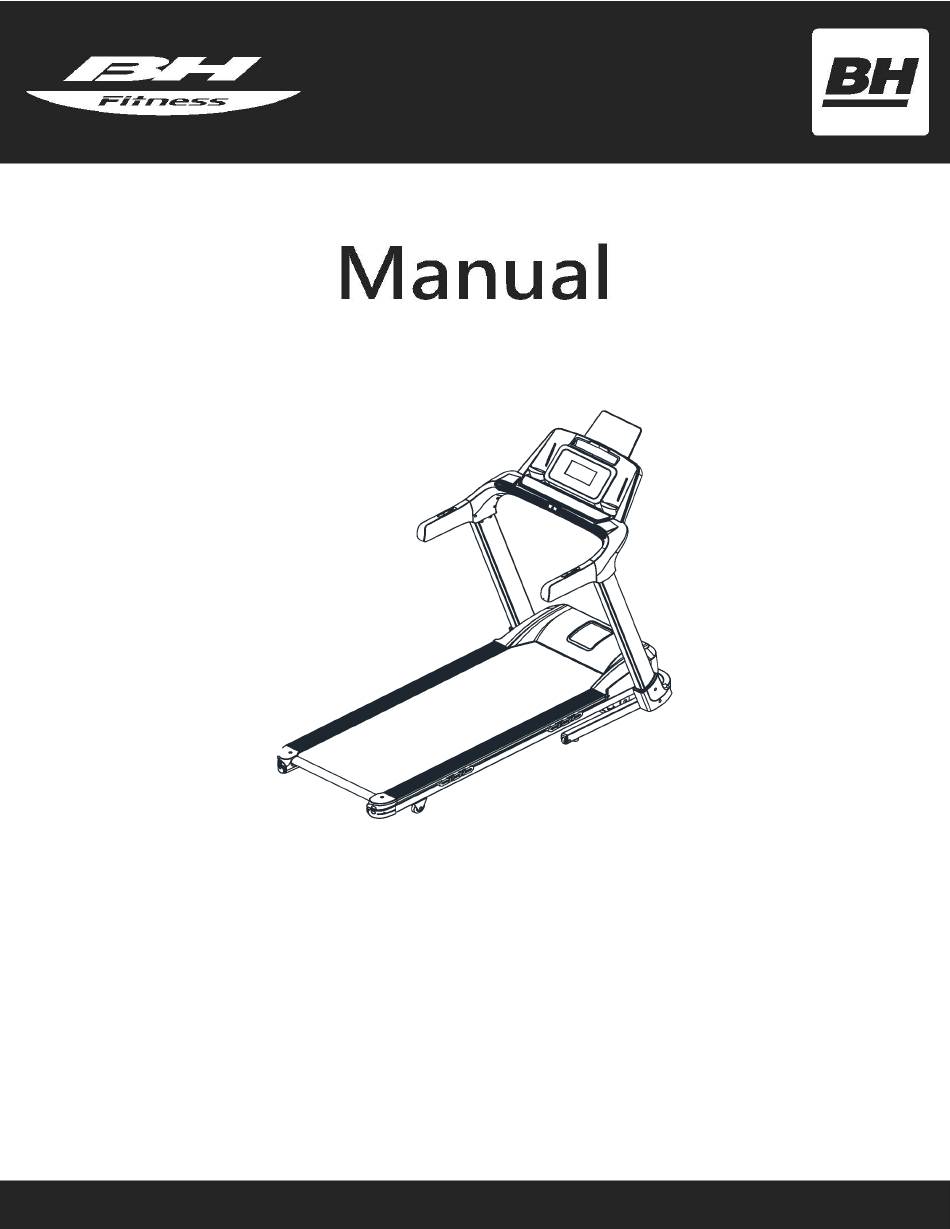

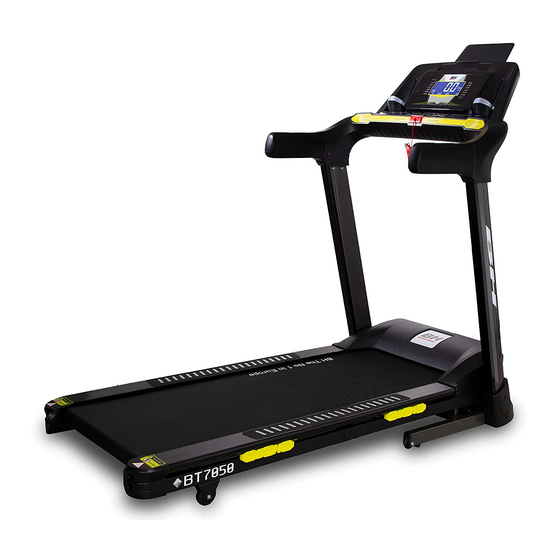

  • Page 1 BH Treadmill BT7050 Version 1.0...

  • Page 2: Table Of Contents

    BT 7050Treadmill Contents Safety Precautions ........03 Safety Instructions ........04 Grounding Instructions .........05 Assembly Instructions ........06/08 Technical Parameters ........10 Start Guide ............11/12 Warm-up Exercise ..........13 Electronic MeterOperation Instructions ..14/21 Safety Exercise ..........24 Maintenance Instructions ......25/26 Exploded View ..........27 Part List ............28/30...

  • Page 3: Safety Precautions

    BT 7050Treadmill Safety Precautions Warning: In order to avoid serious injury, please pay attention to the following operations: Before using the treadmill, make sure that the clip for the safety switch is clamped on your clothes or waistband; During exercise, you shall swing your arms naturally with your eyes looking ahead instead of looking down; During exercise, only speed up in a progressive manner after you have gotten used to the current speed;...

  • Page 4: Safety Instructions

    BT 7050Treadmill Safety Instructions Do not connect the power supply before the electric treadmill is fully assembled and the motor protective cover is closed. Insert the plug into a power outlet with 10A safety grounding. We recommend that you use an overcurrent protector to ensure the safety of the treadmill and the user.

  • Page 5: Grounding Instructions

    BT 7050Treadmill Grounding Instructions This product shall not be used until it is grounded. If there is any failure or damage occurring to the machine, the grounding cable can generate miniature resistance to block the current, which will reduce the possibility of electric shock.

  • Page 6: Assembly Instructions

    BT 7050Treadmill Assembly Instructions The following figure shows the components for assembling the complete machine. Open the packing box to take out the following parts from the box: 30. L/R 49. Rubber Plug 27.Safety lock 48. Silicone oil Front Cover 2 pcs 72.
  • Page 7 BT 7050Treadmill Assembly Steps: Step 1: Take the machine from the package. Straight the upright post(L/R) according to the direction of the arrow. Step 2: Use the screw (82) M8*20, the screw (85) M8*35 and the washer (100) Ø9*Ø16*t1.6 to tighten the upright post(L/R) to the base frame.
  • Page 8 BT 7050Treadmill Step 4: Use the large bolt (132) M5*20 to tighten the newspaper- shelf (131) to the monitor. (131/132 is optional) Step 5: Lock the front cover (L/R) on the upright post with the bolt (72) M4*8. According to the direction of the arrow, install the safety lock (27) and MP3 line (103).
  • Page 9 BT 7050Treadmill ATTENTION: Confirm complete assembly as required above, then tighten all bolts. Checking everything is OK before power on. About the treadmill operation and using, please read the following instruction carefully. Folding/unfolding Instructions Turn off the power. Lift the running deck up towards the arrow direction.

  • Page 10: Technical Parameters

    BT 7050Treadmill Technical parameters Overall Size(mm) 1790mm*800mm*1510mm Speed 1-18Km/h Folding Size(mm) 1000mm*800mm*1610 mm Maximum Output 1300W Running Range(mm) 1400*500 Voltage 220-240V 73Kg 0-28℃ Ambient Temperature Max Weight 100kg LCD Display Speed Time Distance Calorie Heart Red safety switch suction cup on instrument; Microcomputer electronic control system with overcurent, overload protection function;...

  • Page 11: Start Guide

    BT 7050Treadmill Start Guide Preparation: If you are more than 45 years old or have health problems, and this is your first fitness exercise, please consult a doctor or seek professional advice before using the treadmill. Before using the electric treadmill, please stand off the machine to become familiar with its operating methods, such as start, stop and speed adjustment.
  • Page 12 BT 7050Treadmill breath, reduce the speed by 0.3 km/h. Take 4 minutes to slow down in the end. If you feel that it is difficult to strengthen the exercise intensity by increasing the speed, then use the method of increasing and decreasing the speed slowly.

  • Page 13: Warm-Up Exercise

    BT 7050Treadmill Warm-up Exercise Friendly reminder It is better to do some warm-up exercise. Warm the muscle easy stretch, so use 5-10 minutes to warm-up. Then stop and according below method to do stretch exercise for five times, and each foot do 10 seconds or more every time.

  • Page 14: Electronic Meteroperation Instructions

    BT 7050Treadmill Electronic Meter Operation Instruction I. Window and Key Introduction: 1.The LCD window displays the following functions: A. Time/Pulse window：display the time and the pulse. Display pulse rate first when there is heartbeat. Standby default display time. B. Distance/Calories/Incline window：display record of distance, calories, incline. C.
  • Page 15 BT 7050Treadmill B. Mode key: In the standby status, press the mode key to select the program: manual program (normal mode) - time countdown - distance countdown - calorie countdown. As for the functions of mode keys in body fat measurement mode, please refer to the introduction of the body fat measurement function.
  • Page 16 BT 7050Treadmill iii. Use the left handrail “-” to decrease the incline. 4 、Use the left handrail “+” to increase the incline. 5、Press the stop button to slow down and stop running end. 6、When activists holding the heart hand handle 5 seconds, it will display heart rate data. Ⅲ.Manual Mode 1.How to enter the manual program: A.
  • Page 17 BT 7050Treadmill beeps. The speed window will show “End” and the treadmill will return to standby mode 5 seconds later; the buzzer will sound long beeps again. I.Unset parameters are accumulated upwards, and the figure will reset after it exceeds the maximum display range.
  • Page 18 BT 7050Treadmill Ⅴ. Fixed Program Data: Set time/20 = running time of each segment Time Program 1 2 3 9 10 11 12 13 14 15 16 17 18 19 20 SPEED 2 4 3 INCLINE 1 2 3 SPEED 2 5 4 INCLINE 1 2 3...
  • Page 19 BT 7050Treadmill SPEED 2 3 5 INCLINE 4 4 3 SPEED 2 5 8 10 INCLINE 1 3 5 SPEED 2 5 5 INCLINE 3 5 6 12 9 11 11 6 VI. User-Defined Program: In addition to 12 built-in programs, the system also features three user-defined programs that allow the user to make personal settings according to his/her own needs: U1, U2, U3.
  • Page 20 BT 7050Treadmill 4. Press the mode key to show F-2, and set your age here. The default setting is 25 years old. Press the speed up and down keys to change between 10-99 years old. 5. Press the mode key to show F-3, and set your height here. The default setting is 170 cm. Press the speed up and down keys to change;...
  • Page 21 BT 7050Treadmill Ⅸ. Safety Lock Function: Pull out the safety lock in any status, the LCD window will show “---” and the buzzer will sound short beeps. If the motor is running, it will stop immediately. When the safety lock is pulled out, all the keys will become disabled. Ⅹ.Power-Saving Mode: The system has a power-saving function.
  • Page 22 BT 7050Treadmill XV. Simple Troubleshooting for Electric Treadmill: Failure or Phenomena Possible Causes Troubleshooting A. no power connection or no power Connect the power cord to AC, or check the supply AC outlet Set the power switch to the ON position B.
  • Page 23 BT 7050Treadmill Displ ay on the Electr onic Meter ---- or ---- (or display Attach the safety lock to the panel or the A. safety lock fell off E00/E07 according to position for inserting cards customer requirements) Install the magnetron to the correct position B.

  • Page 24: Safety Exercise

    BT 7050Treadmill Safety Exercise Please consult a specialist before doing exercise. He/she can advise you on exercise frequency, exercise intensity and exercise time that conform to your age and physical conditions. During exercise, if you feel chest tightness or pain, irregular heartbeats, shortness of breath, dizziness or other discomforts, please stop immediately! Consult a specialist before continuing with your exercise.

  • Page 25: Maintenance Instructions

    BT 7050Treadmill WARNING: Make sure to disconnect the power plug of the electric treadmill first before moving the motor protective cover. Open the motor protective cover at least once a year to vacuum and clean the motor. Maintenance Instructions Lubricant has been pre-applied between the running board and running belt of the electric treadmill. The friction between the running belt and the running board greatly influences the service life and performance of the electric treadmill, so it is necessary to apply lubricants regularly.
  • Page 26 BT 7050Treadmill • If the running belt deviates to the left, ,pull out the safety lock and turn off the power switch.Rotate the left adjusting bolt clockwise by 1/4 round, running the treadmill, observe the running belt deviation. Repeat the steps until the running belt in the middle.

  • Page 27: Exploded View

    BT 7050Treadmill Step 2: Loosen (but not remove) the 4 bolts securing the motor base, and then use a wrench to adjust the adjustment screw on the motor base as appropriate. In the meanwhile, gently flip the ribbed belt between the motor shaft and the front roller with your hands.

  • Page 28: Part List

    BT 7050Treadmill Part List...
  • Page 29 BT 7050Treadmill Description Specifications Description Specifications Main frame Key board Base frame 26L /R Cup pad 3L/R Stand post Safety lock Console bracket Decorating plug Motor bracket 29L/R Rear cover Incline frame 30L /R Stand post cover Side buckle IPAD frame Running board Wheel plug Side rail...
  • Page 30 BT 7050Treadmill Incline Motor Phillips C.K.S full thread screw M6*15 Nickel plating Motor Allen C.K.S full thread screw M6*20 Nickel plating Controller M6*12 Nickel plating Allen countersunk full thread Face sticker M6*20 Nickel plating Allen countersunk full thread Key sticker M6*25 Nickel plating Allen countersunk full thread 55L/R...
  • Page 31 BT 7050Treadmill Spring washer Front cushion protector T3. 0*23*250L ∮8.1*∮12.3*t2.1 Flat washer Power switch ∮5.5*∮12*t1.2 Flat washer Overload protector ∮6.6*∮11.8*t1.6 Flat washer Rear cushion protector T3. 0*23*163L ∮9*∮16*t1.6 Flat washer Magnet ring ∮9*∮23*t1.5 Flat washer Magnet ring protector ∮11*∮20*t2.0 MP3 Line Single wire 150mm MP3 Wire...
