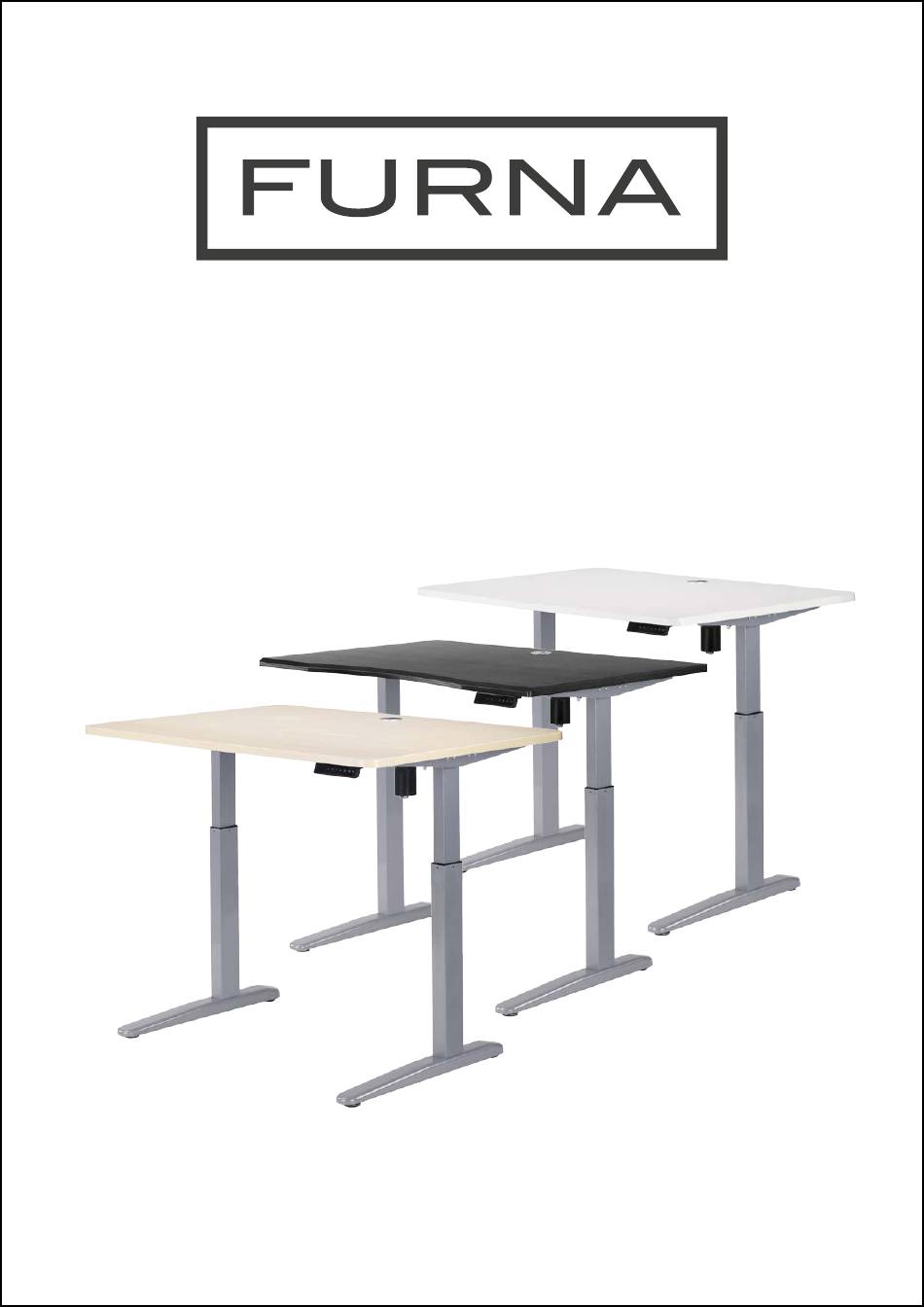

- Page 1 E lec t r ic S t an d i n g D e s k A B E T T E R D E SK F OR A BE TT E R YO U A S S E M BL E Y GU I D E MO D EL - F N A E 1 F RM G RY 1...
-
Page 2: Parts List
Parts List Part C Part D Qty 2 Qty 2 Part E Qty 2 Part A Qty 1 Part F Part G Qty 2 Qty 1 Part B Qty 1 Part H Qty 1 Part J Qty 1 Part K Part L Qty 2 Qty 1... - Page 3 1 Installation of legs and feet Erection Sequence: 1,2,3,4 Note: There is a welded bracket with two screw holes on the back of each leg. Make sure they both face the REAR of the desk (they should face away from the “long” part of the feet).
-
Page 4: Frame Assembly
Frame assembly Part One Erection Sequence: 1,2 Connect both Parts D to the desk legs Parts A & B as shown in picture. Use Parts 18 (M6 X 15MM bolts) and loosely tighten in place. Parts used: A,B,D plus Part No.18 Qtyx8 Frame assembly Erection Sequence: 1,2, 3... -
Page 5: Axle Assembly
4 Axle assembly Erection Sequence: 1,2,3,4 Slide one Part E bar into the B leg axle hole (through the motor which is pre-attached) and then insert Part G on to that same Part E. Once this is done, slide the Parts used: remaining available Part E bar from the outer side of E,G plus... - Page 6 5 Desk top supports assembly Erection Sequence: 1,2,3 Attach both Parts F (desk top supports) to each end of the desk frame using Part 18 bolts and then tighten. Part used: F plus Part No.18 Qtyx8...
- Page 7 6 Desk top attachment Turn the desk top upside down and lay flat on the floor, and put the frame on upside down on top of it for this part. Set Parts used the frame to the width that suits you and the table top (we A,B,F plus recommend within about 5cm from each side).
- Page 8 7 Install control box & control panel Using the diagram as a guide, you may now connect the motor to the control box (Part J), and the control panel (Part L). The exact position of the control box and control panel are at your discretion.
- Page 9 8 Optional: Support bar/ modesty panel This is an optional attachment for increased stability. Firstly attach the support bar (Part H) to the legs using 4 x Part 19 bolts. Once the bar is attached, use Parts 19 and 22 and screw tightly to hold in the middle cutout section. Part No.19 Part No.22 Part H...
- Page 10 Once the height is reached and while the LED panel is flashing, simply press one of the number buttons (1, 2, 3 or 4) and that button will then automatically adjust the desk to the set height. Congratulations, you’re ready to use your Furna E1 desk!
-
Page 11: Need Help
Need help? Get in touch by emailing contact@furna.co.uk or by using our Live Chat feature on our website!
